10 Independent Channels Signal Jammer | 5G & WiFi Coverage for Large Rooms

10 Independent Channels Signal Jammer | 5G & WiFi Coverage for Large Rooms

Brand Name:	Wolves Teams
Model Number:	WT101TD-11
MOQ:	1
Price:	360
Delivery Time:	15days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,CC

Type:

Gps Tracker,Frequency Control,UAV Jammer

Warranty:

36 Months,2 Years,12 Months,3 Years,1 Years

Use:

Automotive,Hand Held

Function:

GPS Tracking,Fuel/temperature Monitoring,SOS Panic Button,Anti Jamming,gps Tracker Kids

Product Name:

GPS Tracker Jammer,motion Sensor Brouilleur De Jammer Gsm Signal Gprs Gps Car Track,Sim Card Google Tracking IStartek Jammer Signal Gps Tracker VT600,RF Signal Detector,jammer Signal Blocker Tk06i Tk228i Car Obd Ii Gps Tracker

Usage:

Jammer,Personal,Auto,home Security

Backup Battery:

500mAh,lithium Battery,DC7.4V/850MA

Size:

85mmx 37mmx 23mm,320*200*460mm,150mm*100mm*16mm,65mm X 61mm X 26mm

Gsm Band:

Quad Band,GSM/UMTS,850/ 900/ 1800/ 1900MHz

Color:

Black,White

Operating Temperature:

-20° To 65° C

Weight:

70g,90g,17kg

Gps Chip:

Latest GPS SIRF-Star IV Chipset

Gsm Module:

Quectel M35,Quectel UC15

Power Supply:

12V 1A,11V-36V/1.5A,AC-220V/DC-48V

Flash Memory:

4M,4MB

Position Accuracy:

10 Meters,2D RMS

Tracking Mode:

GMS GPRS

Gps Sensitivity:

-163Db

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

10 channel signal jammer

5G WiFi signal jammer

large room signal blocker

Product Description

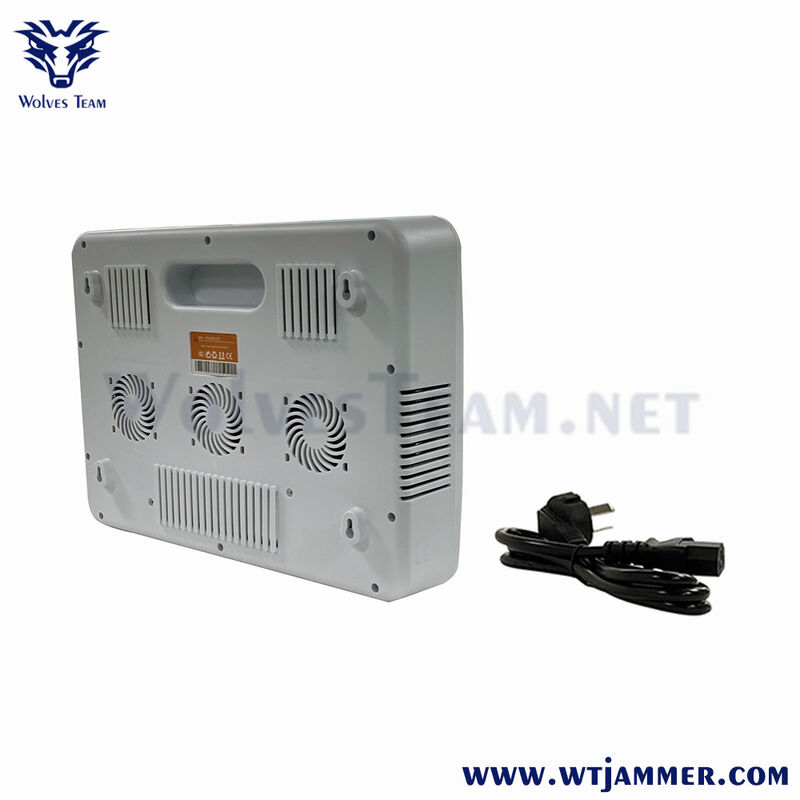

10 Independent Channels Signal Jammer | 5G & WiFi Coverage for Large Rooms

Product Overview

This high-power 10-band desktop signal jammer is designed for professional security scenarios, featuring 55W total output power, 10 independent control channels, and wide-band signal shielding. It effectively blocks all common mobile phone signals (2G/3G/4G/5G), WiFi (2.4G/5G), Bluetooth, GPS, UHF, VHF and other wireless signals, creating a fully confidential signal-free environment.

Key Features

Ultra-High Power & Wide Coverage: 55W total output power, 10 independent channels, covering all mainstream wireless signals with maximum shielding range up to 50 meters
Independent Channel Control: Each frequency band features an independent switch for flexible on/off control of specific signals
Professional Security Solution: Designed for large-scale confidential spaces and professional security applications

Technical Specifications

Parameter	Specification
Model Number	WT101H20-8_5
Total Output Power	55W (5.5W per channel, adjustable)
Number of Channels	10 Independent Channels
Frequency Range	20-6000MHz / 700-2600MHz (Customizable)
Shielding Bands	CDMA/GSM/3G/4G LTE/5G, WiFi 2.4G/5G, Bluetooth, GPS, UHF, VHF
Jamming Range	2-50 Meters (Adjustable, depends on signal strength & environment)
Antennas	8/10 High Gain Omni-Directional Antennas (Magnetic Base, 1.5m Cable)
Control Mode	Independent ON/OFF Switch for Each Channel
Cooling System	Built-in Dual Silent Fans, 24/7 Continuous Operation Supported
Power Supply	AC 110V-240V (Global Universal) / DC 12V
Operating Temperature	-20ºC to +55ºC
Humidity	5% - 95% RH
Dimension (Host)	220×240×160mm
Color	Black
Warranty	1 Year

Frequency Band Details

Channel	Frequency Range
CH1	CDMA/GSM: 850 to 960MHz
CH2	DCS: 1805-1880MHz
CH3	PCS: 1920-1990MHz
CH4	3G: 2110-2170MHz
CH5	4G LTE: 725-770MHz(US) or 790-826MHz(EU)
CH6	4G Wimax: 2300-2400MHz(US) or 2500-2690MHz(EU)
CH7	WIFI 2.4: 2400-2500MHz
CH8	GPS: 1520-1650MHz

Additional Specifications

Jamming range: 10-50m, @-80dBm (radius depends on signal strength in given area)
External Omni-directional antennas covering TX frequency down link only
Power supply: 50 to 60Hz, 100 to 240V AC with AC adapter (AC100-240V-DC12V)
Dimension: 220x240x160mm (excluding antennas)
Full set weight: 10kg
Built-in battery: DC-48V 15AH (Supports 60min full power operation)
Humidity: 30%-95%
Running Temperature: -20 to +55 Celsius Degree
