Industrial Grade IP65 Jammer | Weatherproof for Campuses, Prisons & Factories

Industrial Grade IP65 Jammer | Weatherproof for Campuses, Prisons & Factories

Brand Name:	Wolves Teams
Model Number:	WT101Q3-8
MOQ:	1
Price:	360
Delivery Time:	15days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,CC

Type:

Gps Tracker,Frequency Control,UAV Jammer

Warranty:

36 Months,2 Years,12 Months,3 Years,1 Years

Use:

Automotive,Hand Held

Function:

GPS Tracking,Fuel/temperature Monitoring,SOS Panic Button,Anti Jamming,gps Tracker Kids

Product Name:

GPS Tracker Jammer,motion Sensor Brouilleur De Jammer Gsm Signal Gprs Gps Car Track,Sim Card Google Tracking IStartek Jammer Signal Gps Tracker VT600,RF Signal Detector,jammer Signal Blocker Tk06i Tk228i Car Obd Ii Gps Tracker

Usage:

Jammer,Personal,Auto,home Security

Backup Battery:

500mAh,lithium Battery,DC7.4V/850MA

Size:

85mmx 37mmx 23mm,320*200*460mm,150mm*100mm*16mm,65mm X 61mm X 26mm

Gsm Band:

Quad Band,GSM/UMTS,850/ 900/ 1800/ 1900MHz

Color:

Black,White

Operating Temperature:

-20° To 65° C

Weight:

70g,90g,17kg

Gps Chip:

Latest GPS SIRF-Star IV Chipset

Gsm Module:

Quectel M35,Quectel UC15

Power Supply:

12V 1A,11V-36V/1.5A,AC-220V/DC-48V

Flash Memory:

4M,4MB

Position Accuracy:

10 Meters,2D RMS

Tracking Mode:

GMS GPRS

Gps Sensitivity:

-163Db

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

Industrial grade signal jammer

IP65 weatherproof jammer

Signal jammer for campuses prisons factories

Product Description

Product Overview

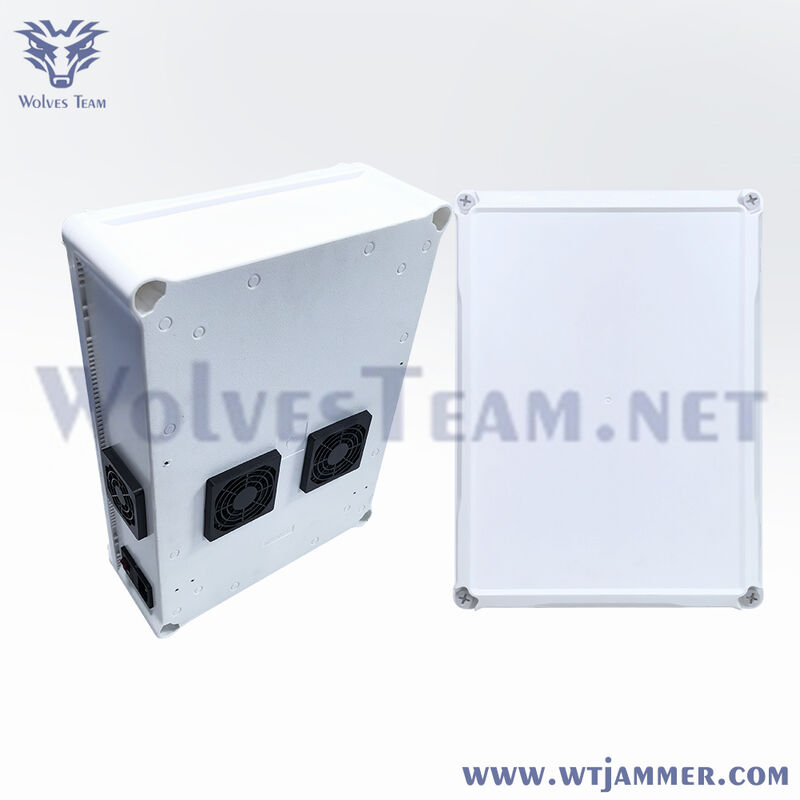

PTC-WP800W Outdoor Waterproof Prison Jammer is a Cellular RF Wireless Signal jamming system designed to block all unauthorized cellular phones and communications devices in prisons and secure facilities. This industrial-grade IP65 weatherproof jammer is an important part of security and crime prevention, easily installed to operate over multiple frequency bands to disable cell phones, satellite phones, Wi-Fi and other communications devices.

Basic Information

Model NO.: 099

Application: Airfield, Government, Nuclear, Prison, Border Defense

Condition: New

Quality: High Quality

After-Sales Service: 24 Online Hours Tech Support

Style: Modern

Transport Package: Carton

Specification: 700*550*300mm

Trademark: Customized

Origin: China

HS Code: 8517699000

Production Capacity: 5000/Year

Basic Specifications

Part No.: PTC-WP800W

Working Frequencies: 8 Frequencies

Output Power: Total 690W for option

Jam Range: 20-100m@-85dBm environment signal strength

Remote Control: IR remote control for turning ON/OFF Jammer

Software Control: For monitoring all jammers working situation

Jammer Dimension: 700*550*300mm (LxWxD)

Power Supply: AC220V/DC-48V (UPS)

Cooling System: High efficiency aluminum alloy radiator

Working Time: Not-stop Working

Power Consumption: 2000W

Waterproof Level: IP65

Warranty: 2 years

Technical Specifications

Channels No.	Frequencies	RF Output Power +/-1dBm
1	790-894MHz	100W
2	925-960MHz	100W
3	1805-1880MHz	100W
4	2110-2170MHz	100W
5	2620-2690MHz	100W
6	2400-25000MHz	100W
7	5150-5850MHz	40W
8	3400-3800MHz	50W

Total Working Channels: 8 channels (20-6000MHz frequencies for option)

Each Band Power: 40-100W

Total Output Power: 690W

Remote Control: Support Infrared remote control and software Ethernet Access control

Power Adjustable: Each band power can be adjustable by software, monitoring all jammers and failure alarms by software

Jamming Range: 20-100 meters @-85dBm

Antennas: 1pcs High Gain Directional Antennas fully tuned 1 jammer

Jammer Dimension: 700*550*300mm (LxWxD)

Jamming Technology: VCO, DDS, AI, 3 solutions for option

Power Supply: AC: 110-240V/DC-48V

Waterproof Grade: IP65

N.W: 50Kg

Working Temperature: -20ºC - +50ºC

Working Humidity: 5% - 95%

Temperature Protection: Over High/Low temperature protection

More Protection: VSWR over protection, lightening protection

Jamming Frequency Range: Mobile frequencies + wifi Signals, GPS for option

Jamming Target: 2G/3G/4G/5G mobile phone signals + WIFI 2.4G, WIFI 5.8G

Product Advantages & Features

Each Jammer can jam up to 8 frequencies simultaneously
Supports high gain directional antennas for covering long range as far as possible
Specially equipped with IP65 Waterproof and solid housing for all weather protection
Supports Remote control for switching ON/OFF Jammer
Supports Remote Access Control (computer internet software control) for controlling each band power, failure alarms and running time
Jammer Failure Alarms: Cabinet opened maliciously, RF cables cut off deliberately, Modules failure, Temperature problems - failure alarms sent to software
UPS and battery backup in case of mains power failure for option
ON/OFF each modules separately by computer software
For cellular phone jamming, only blocks downlink frequencies, not disturbing uplink to keep BTS normal running
Continuous operation, even in hot climates, with no time limit
Heat sink designing combining with fans to maintain system cooling status
Secure design to avoid sabotage
VSWR circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection
Directional antennas and 360º omni antennas for option
2 Years Quality Warranty
DDS and Digital technologies for option

Frequently Asked Questions

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.

Q3. Can I customize frequencies?

Yes, we can customize 2G/3G/4G/5G/LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, 433MHz, 315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, UMTS, 3G, 4G, LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1, GPS L2, Galileo, Compass, Glonass, WIFI, Bluetooth, WIMAX, UAV, Drone, 5.8G, etc.

Q4. Shipment Date

Sample: 3-5 business days
<20 pcs: 7-10 days
20-50 pcs: 10-20 days
>50 pcs: Negotiate

Q5: Delivery Date of the sample by DHL/FedEx/UPS

USA/Canada/Europe/Asia: 3-5 days
Middle East/Latin American: 5-7 days
African: 3-7 days

Q6. Payment Method

T/T, Western Union, Paypal, and Credit Card are available
*Other methods please contact us with more details.

Q7. Warranty

One year from delivery date.
