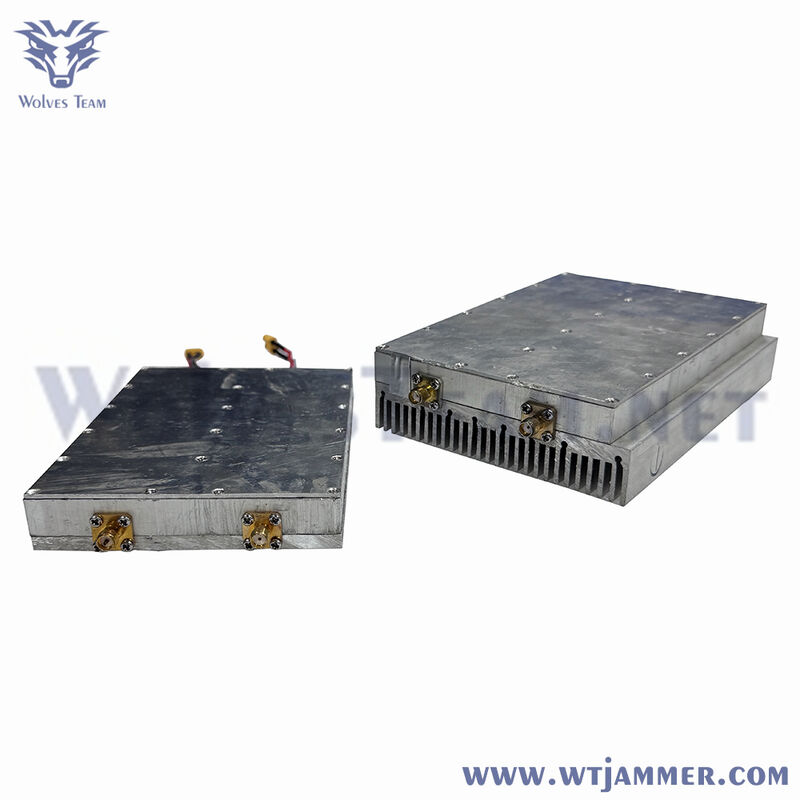

High Power SMA RF Jammer Module for Anti-Drone & Signal Jamming

Brand Name:	Wolves Teams
Model Number:	WT-10W
MOQ:	1
Price:	360
Delivery Time:	15 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,CC

Frequency Range:

100 MHz - 6 GHz

Position Accuracy:

10 Meters,2D RMS

Antennas:

8 External Directional Panel Antennas

Battery:

Ni-Mh Battery 8000mAH

Humidity Range:

30%-95%

Port:

YanTian

Input Voltage:

AC100V ~ 250V, 50Hz ~ 60Hz To DC 24V

Charging Time:

3 Hours

Energy Consumption:

60W

Antenna Configuration:

12 Built-in Omnidirectional Antennas

Battery Operation Time:

2-3 Hours

Antenna:

Patch Antenna - Gain 5 DBi Of Each Band

Product Weight:

Approximately 15kg

Battery Life:

Up To 4 Hours

Total Output Power:

0.5 Watt

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

SMA RF jammer module

high power anti-drone jammer

signal jamming module with SMA

Product Description

High Power SMA RF Jammer Module for Anti-Drone & Signal Jamming

This professional-grade RF jammer module delivers high-power signal jamming capabilities for security and privacy applications across multiple frequency bands.

Key Specifications

Output Power	10-100W
Jamming Range	50-500M (signal intensity must < -80db at location)
Covered Standards	AMPS, N-AMPS, NMT, TACS, GSM, CDMA, TDMA, IDEN, UMTS
Power Supply	50/60 Hz AC 100-240V to DC 12V (automatic switching)
Operating Temperature	-10°C to +60°C
Humidity	95% non-condensing
Antenna	Patch Antenna - Gain 5 dBi per band

Product Features

Blocks 2G, 3G, 4G, 5G, WiFi 2.4G, and WiFi 5.8G signals simultaneously
Advanced cooling system enables 24/7 continuous operation
Targets only downlink bands, never uplink frequencies
Waterproof design for reliable performance in various environments
Easy installation and operation

Frequency Coverage

758-803MHz 4G LTE11 (10-100W)

850-960MHz GSM CDMA (10-100W)

1805-1880MHz PCS (10-100W)

2100-2180MHz 3G (10-100W)

2300-2400MHz 4G1 (10-100W)

2570-2690MHz 4G2 (10-100W)

3300-3400MHz 5G (10-100W)

3400-3600MHz 5G2 (10-100W)

3600-3800MHz 5G3 (10-100W)

4800-5000MHz 5G4 (10-100W)

2400-2500MHz WiFi 2.4G (10-100W)

5725-5850MHz WiFi 5.8G (10-100W)

Technical Specifications

Jammer Module Number	12
Device Dimensions	38.5cm (L) × 43cm (W) × 26.5cm (H)
Weight	1kg
Storage Temperature	-30°C to +70°C
Packaging	Box, 385(L)×340(W)×280(H)mm

Applications

Meeting rooms, oil and gas facilities, hospitals, theaters, recording studios, banks, contract tendering rooms, churches, conference rooms, classrooms, testing facilities, security services, military units, secret services, news conference rooms, libraries, museums, prisons, courts, border patrol, and custom facilities.

Included Accessories
