8 Independent Channels 400W Waterproof Vehicle RF Isolator for VIP Protection & Law Enforcement

8 Independent Channels 400W Waterproof Vehicle RF Isolator for VIP Protection & Law Enforcement

MOQ:	1
Price:	1
Delivery Time:	7-15
Payment Terms:	L/C,D/A,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS/FCC/ISO 9000/CE

Product Name:

Vehicle Signal Jammer

Product Type:

Vehicle Mounted

Total Output Power:

25W - 3500W

Max Power Per Channel:

10W - 200W

Jamming Radius:

50 - 2000 Meters

Jamming Angle:

90°-360°

Response / Startup Time:

<3 Seconds

Power Supply Method:

DC 12V-28V / DC 24V

Operating Voltage:

12V-24V

Antenna Gain:

≥8 DBi

Operating Temperature:

-40℃ To +65℃

Ingress Protection:

IP65 - IP68

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

400W waterproof vehicle RF isolator

8-channel signal jammer for VIP protection

law enforcement vehicle signal blocker

Product Description

8 Independent Channels 400W Waterproof Vehicle RF Isolator for VIP Protection & Law Enforcement

Product Overview

This high-power portable multi-band jammer features 8 independent channels with 400W total output power, designed specifically for VIP protection and law enforcement applications. The waterproof vehicle RF isolator provides comprehensive signal blocking across multiple frequency bands.

Key Specifications

Parameter	Specification
Frequency Range	20-6000MHz/700-2600MHz
Target Frequencies	CDMA/GSM/3G Cellphone
Jammer Type	Vehicle Bomb Jammer
Channel Number	10
Each Band Power	50W
Total Output Power	330W
Jamming Range	15-100m
Power Supply	AC 110-240V

Advanced Features

High-power portable multi-band jammer with field programmability
Modular construction for easy maintenance, repair and upgrade
250-300 watt total RF output power
Equipped with remote control unit for individual module control
External LED display for battery level monitoring
External backup battery input for field use
Built-in intelligent modules for power outage alarm and automatic switching
Comprehensive intelligent digital control without interference to other devices

Technical Specifications

Output Interface	Frequency Range	Application	Output Power
CH1	20-108MHz	Wireless, FM Radio	100W
CH2	135-174MHz	Walkie-talkie (VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400-470MHz	Walkie-talkie (UHF), Car alarm	100W
CH5	851-894MHz	CDMA	100W
CH6	925-960MHz	GSM	100W
CH7	1570-1580MHz	GPS L1	50W
CH8	1805-1920MHz	DCS, PCS	100W
CH9	2110-2170MHz	WCDMA	50W
CH10	2400-2485MHz	WIFI, Drone, Bluetooth	50W
CH11	5725-5850MHz	WIFI, Drone	15W

Additional Specifications

Jamming Radius	50-800M (depends on signal strength in given area)
HS Code	8543709200
Total Output Power	600-1200W
Power Consumption	330W
Type	Vehicle Jammer
Dimension	640×540×550 mm
Packing	Neutral Packing
Power Supply	AC110-240V
Weight	75 Kg
Humidity	5%-95%
Working Temperature	-20℃ to +55℃

RF Characteristics

Characteristic	Description
Output Power	915 Watts
Internal Modulation	FM Hopping Frequency
Signal Source	VCO Synthesized
Power Supply	AC110-240V, 24V or 48V DC
Modules Per Unit	11
Control	ON/OFF with Switch
Monitoring	Adjusted output power by DIP switch

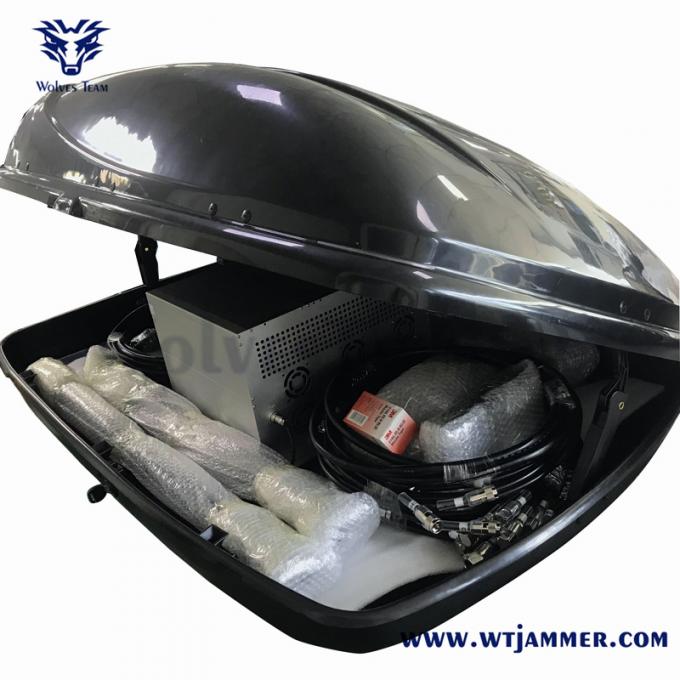

Antenna	External Omni-directional for 360°
Power Amplifier Protectors	Full VSWR Protector
Operating Hours	Unlimited

Applicable Areas

Examination rooms and testing centers
Prisons and detention facilities
Gas stations and oil depots
LPG stations and fuel storage areas
Detention centers and interrogation rooms
Courts and government facilities
Mobile phone bomb protection
Other prohibited places where mobile phone use is restricted

Terms & Conditions

Term	Condition
Delivery Time	3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB HONGKONG/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year
