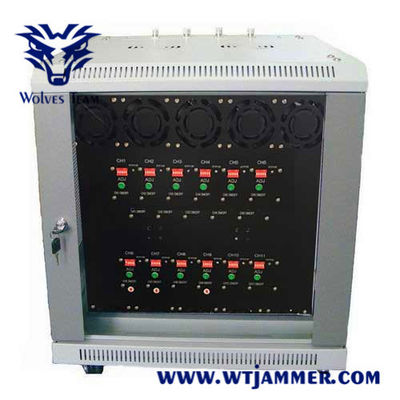

16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection

16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection

  • 16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection
  • 16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection
  • 16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection
  • 16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection
16 Bands 2000M 800W Electronic Signal Jammer For VIP Protection
Product Details:
Place of Origin: China
Brand Name: wolvesteam
Certification: CE
Model Number: JM165105
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: 40 x 40 x 50 cm Box package
Delivery Time: 3-4 weeks
Payment Terms: L/C, T/T
Supply Ability: 100pieces/month
Contact Now
Detailed Product Description
Total Output Power: 800 Watts Power Supply: 220V AC/ 27V DC
Remote Control: ON/OFF Antenna: External Omni-Directional Antenna Or Directional Antenna
Range Jamming: 500M To 2000M (Depened On Signal Length) Operating Temp: -10oC - +65oC
Block Frequency: 20-6000 Mhz Feature: Broadband Omni-Directional Antennas For 360o Protection
Highlight:

800W Electronic Signal Jammer

,

16 Bands Electronic Signal Jammer

800W VIP Protection Electronic Signal Jammer , High Power Signal Jammer Vehicle Mounted





Product Description:





Use area of this Jammer:

  • Biggest prison, bigger ground, battalion as well as illegal congregation, illegal demonstration , military rehearse, special action etc and this kind of jammer with big direction antenna which can be put on a car and it uses 9U or 12U standard tank and easily operates safety.
  • This jammer is a vehicle mounted very high power jammer designed for blocking remote controlled improvised explosive devices Used by terrorist.
  • It is using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.
  • Jamming radius of "VIP Protection High Output Power Signal Jammer" depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.
  • The system use Broadband Omni-Directional antennas for 360o protection.
  • Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VIPs.

Technical Specifications

  • as for band 20-6000 mhz, we always make it as following

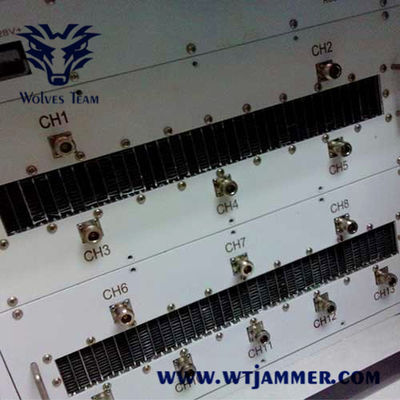

Output Interface Shield band of frequency
CH1 20-80MHZ/ 50DBm
CH2 80-200MHZ/ 50DBm
CH3 200-500MHZ/50DBm
CH4 500-975MHZ/50DBm
CH5 975-1450MHZ/ 50DBm
CH6 1450-1925MHZ/50DBm
CH7 1925-2400MHZ/ 50DBm
CH8 2400-2500MHZ/50DBm
CH9 2500-3400MHZ/ 44DBm
CH10 3400-4200MHZ/44DBm
CH11 4200-5300MHZ/44DBm
CH12 5300-5900MHZ/44DBm
CH13 5900-6400MHZ/ 44DBm
CH14 930-960MHZ/50DBm
CH15 1800-1990MHZ/50DBm
CH16 2110-2170MHZ/50DBm
Output Power: 800 Watts
Power Supply:  220V AC/ 27V DC

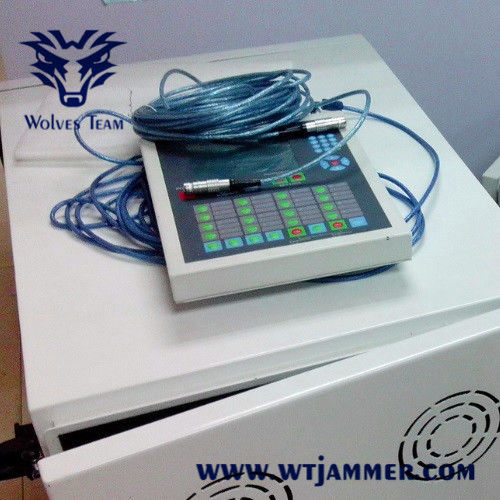

Remote Control:  ON/OFF
Antenna:  External Omni-Directional Antenna or directional Antenna
Power Amplifier Protectors:  Over Heat – Thermal protector
Range jamming:  500M to 2000M (Depened on signal length)
Dimensions:  40 x 40 x 50 cm
Operating Temp: -10oC - +65oC
Humidity:  5% - 80%



Accessories

  • AC adaptor
  • Antenna



Terms and conditions:



Delivery Time Schedule Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 40% advance, 40% after one month,20% before shipping.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year : 5% of total for each years.
