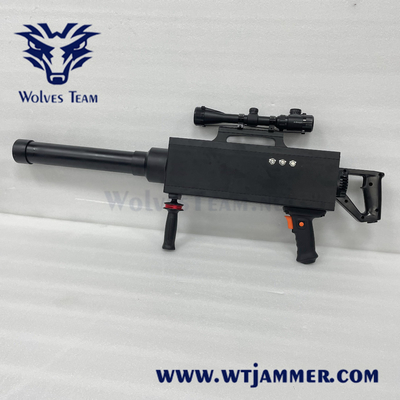

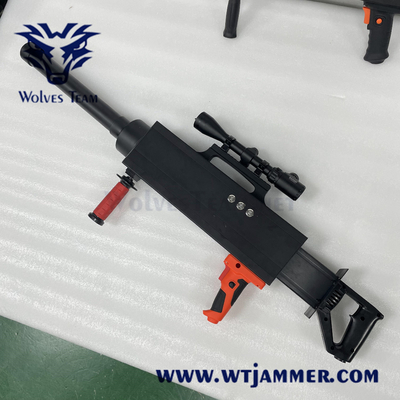

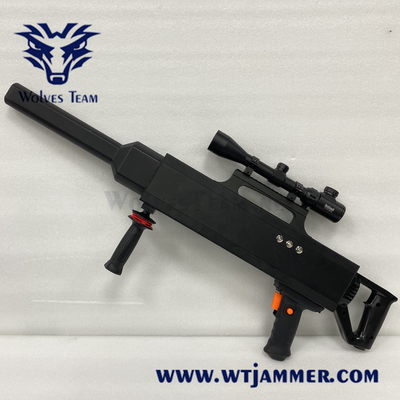

Portable Handheld GPSL1 , WIFI2.4G, 5.8g signal Drone Jammer with Battery work time 1 hour
Product Description:
Applications
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
Specification:
| Output Interface |
Shield band of frequency |
RF Output dBm |
| CH I |
WIFI2.4G |
40 dBm |
| CH 2 |
GPS L1 |
40 dBm |
| CH 3 |
WIFI5.8 G |
37 dBm |
| Power supply: |
AC110~220V/DC-48V (option) |
| Built-in battery: |
DC-24V 8AH/Support 120min Full Power Working (option). |
| Shielding area: |
500 ~ 1000m @ according to signal density of mobile network. |
| Power consumption: |
90W |
|
Humidity:
|
30%-95% |
| Total RF Power : |
15W |
| Running Temperature: |
-10 to +55 Celsius Degree |
| Field strength |
at -80dBm |
| Weight: |
6.0Kg |
| Size(length × wind × high): |
960×400×230 mm |
Advantages and Features
Outdoor waterproof case with protection level of IP55 UHF broadband jamming technology: highly
effective power & long jamming distance Separate control of each module, convenient operation.
High quality tubular radiator, effective in radiating heat.
High integration components; the moderating circuit-starting design avoids a spark when the device turns on/off.
High integration & Stable operation.

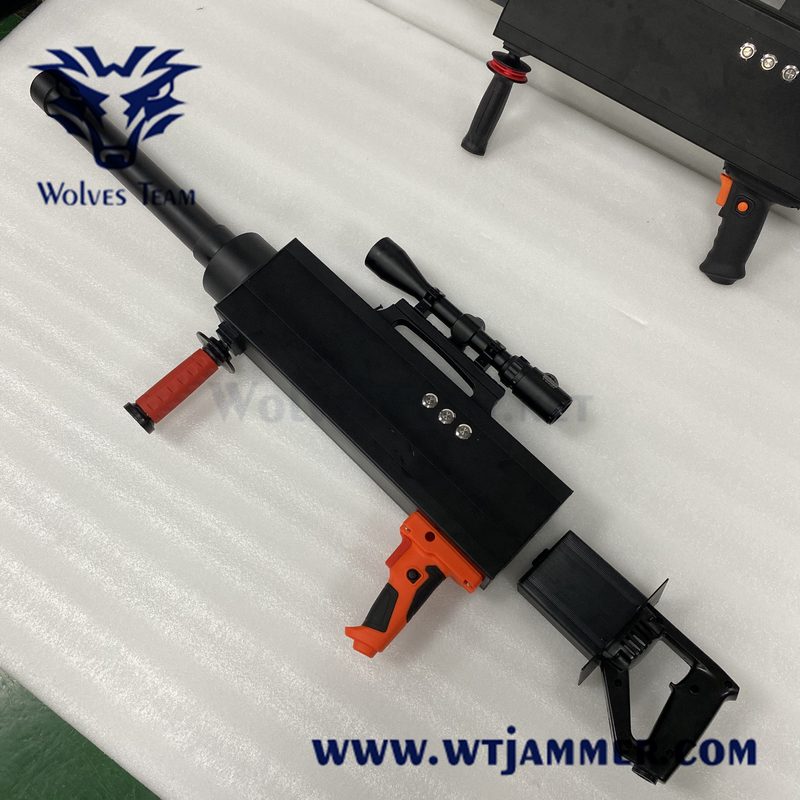

Batteries are separate from the main device,easy to be replaced and maintained.
Technique characteristics
- Taking use of super-high frequency with high effective power.
- Effective output power (channel power) and bigger interfere radius.
- Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
- mported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
The portable drone jammer is our company's latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return.
Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz,Remote-Control Signal and Image Transmission Signal 5800MHz.
Technique characteristics
Taking use of super-high frequency with high effective power.Effective output power (channel power) and bigger interfere radius.
Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
According as theoretic
Wireless communication is effectively completed by ensuring adequacy carrier signal density to a certain noise density during communication. A same frequency distortion signal is used to increase the ratio of carrier signal and noise (Nf) for shutting off the communication between the base station and mobile phone.
The output power of jammer is given, the shield radius in the situation of free space is confirmed according to the receiving signal lever from base station and free space attenuation in pass through. The below is given a formula of confirming
Shielding radius and a table of comparison of distance and pass through based on carrier receiving power from base station, output power of jammer as well as gain of antenna:
