Waterproof All In One 500m 400w Vehicle Signal Jammer

Brand Name:	wolvesteam
MOQ:	1
Price:	negotiated price
Delivery Time:	3-4 weeks
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Total Output Power:

400 Watt.

Shielding Range:

300 To 500m ( Signal Strength <=75dbm.)

Antenna Type:

6pcs External High Gain ( 7-8dBi ) Omnidirectional ( Standard

Feature:

Waterproof & Shockproof Design

Block Frequency:

GSM WCDMA/UMTS/3G GPS 4G

Operation Temperature::

-20 ...+50 Centigrade Degree

Total System Weight::

Approx 60 Kg (with Omni Directional Antennae.)

Advantage:

Each Band Can Work Independently

Packaging Details:

56*46*27 cm Box package

Supply Ability:

100pieces/month

Highlight:

400w Vehicle Signal Jammer

400w All In One Jammer

Product Description

Vehicle Jammer, Cell Phone Jammer, All-in-One Full frequency Signal Jammer, Bomb Jammer

Product description:

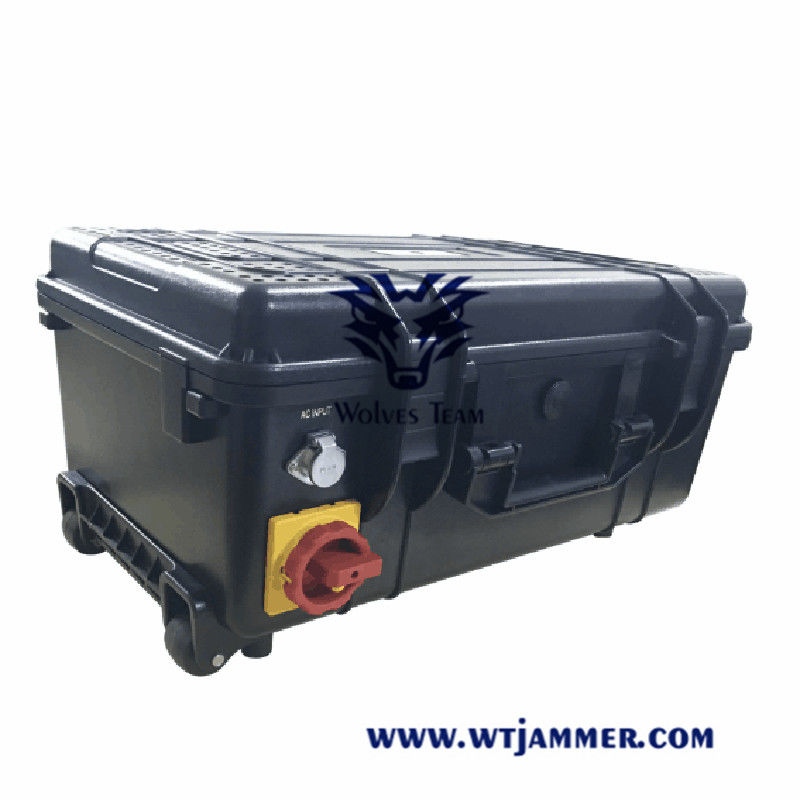

The Vehicle Bomb jammer is a fully portable multi-band Jamming system, and designed with a ruggedized trolley type case for high mobility.

This device is configured more than 10 different jamming modules, and the jamming frequency can be more than 20Bands. Eight jamming frequency modules provide up to 400 Watt output power maximum.

The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.

Specification:

Working frequency (8 bands):

Output Interface	Output Frequency	RF Output watt
CH1	CDMA/GSM: 851-960MHz	50W
CH2	DCS/PCS: 1805-1990MHz	50W
CH3	3G:2110-2170MHz	50W
CH4	4G LTE: (USA:725-770MHz) or (Europe:790-826MHz)	50W
CH5	4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz)	50W
CH6	Wifi or Bluetooth	50W
CH7	GPS:1570-1580MHz	50W
CH8	WIFI2.4G:2400-2500MHz	50W
Total RF Power	400 Watt.
Power supply	AC220V
Shielding area	300 to 500m ( signal strength <=75dbm.)
Jammer Module Number	8
Cooling System	Systematic Smart Cooling System
System Protection	VSWR, Over-voltage, Over-current
Housing:	Waterproof & shockproof design suitable indoor or outdoor use
Remote Control (Option)	Each band can work independently
Antenna Type	8pcs External (2-3dBi) omnidirectional (Standard)
Number of Antennas	8

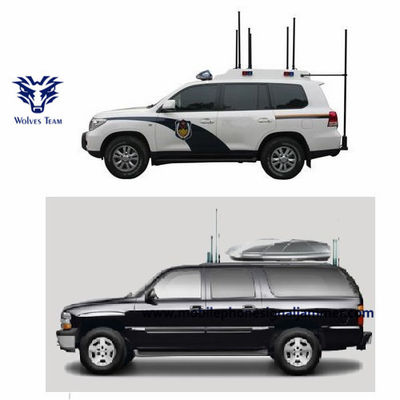

Vehicle Platform(Option)	Off-road four-wheel drive car
Weight:	Approx 60 kg (with omnidirectional antenna.)
Size (length × wind × high)	564627 cm
Humidity	Up to 80%
Running Temperature	-20 ...+50 Centigrade degree

Accessories:

Power cable
Antennas
User manual

Product Notes

Make sure to connect all the antennas firstly before the power supply is switched on. Please do not take off antenna when the machine is working.
Antenna shall be used vertically to the ground for working more efficiently.
Please don't put the jammer in the bad Condition of over-wet, over-hot, high voltage and high magnetism.
The jammer shall be installed in the position with good ventilation, and large-scale things shall be avoided to ensure the shielding effect.

Terms and conditions:

Delivery Time Schedule	Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	40% advance, 40% after one month,20% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
