Name: VIP Protection Outdoor Military Vehicle Mobile Cell Phone Signal Jammer Blocker VHF 135MHz UHF 300/400MHz Signal Jammer
Brand: Wolves Team Limited
Price: 1,689.00 USD
Availability: InStock

Home Products Vehicle Signal Jammer

VIP Protection Outdoor Military Vehicle Mobile Cell Phone Signal Jammer Blocker VHF 135MHz UHF 300/400MHz Signal Jammer

Product Details:

Place of Origin:	China
Brand Name:	wolvesteam
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	CE
Packaging Details:	Box 420x480x330 mm
Delivery Time:	20-25 days
Payment Terms:	L/C, T/T
Supply Ability:	1000pieces/year

Contact Now

Detailed Product Description

Jamming Range:	Up To 1000 Meters	Power Of Each Frequency Band:	Can Be Adjustable Independently
Total Output Power:	1000W	Feature:	Frequency Bands And Output Power Selectable.
Block Frequency:	UHF VHF GSM CDMA 3G 4G 5G WiFi GPS	Advantage:	Keep For Upgrade Module Installation.
Application Area:	Military Units, Prison, Police, Bomb Disposal	Antenna Type Options,:	Directional Or Omnidirectional Antennas Option
Work Time:	Working 24 Hours/365days Continuously.	Special Technology To Prevent:	Interference Between Each Frequency Band
Highlight:	car jammer device , car signal blocker

VIP Protection Outdoor Military Vehicle Mobile Cell Phone Signal Jammer Blocker VHF 135MHz UHF 300/400MHz Signal Jammer

Product description:

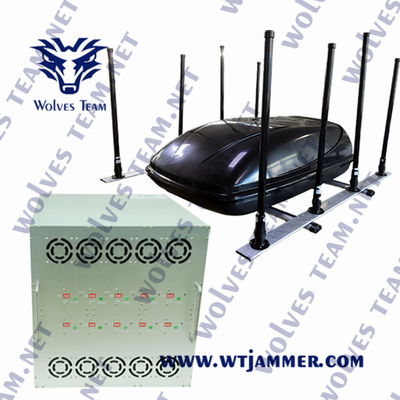

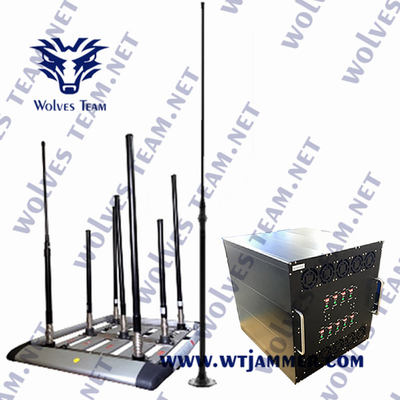

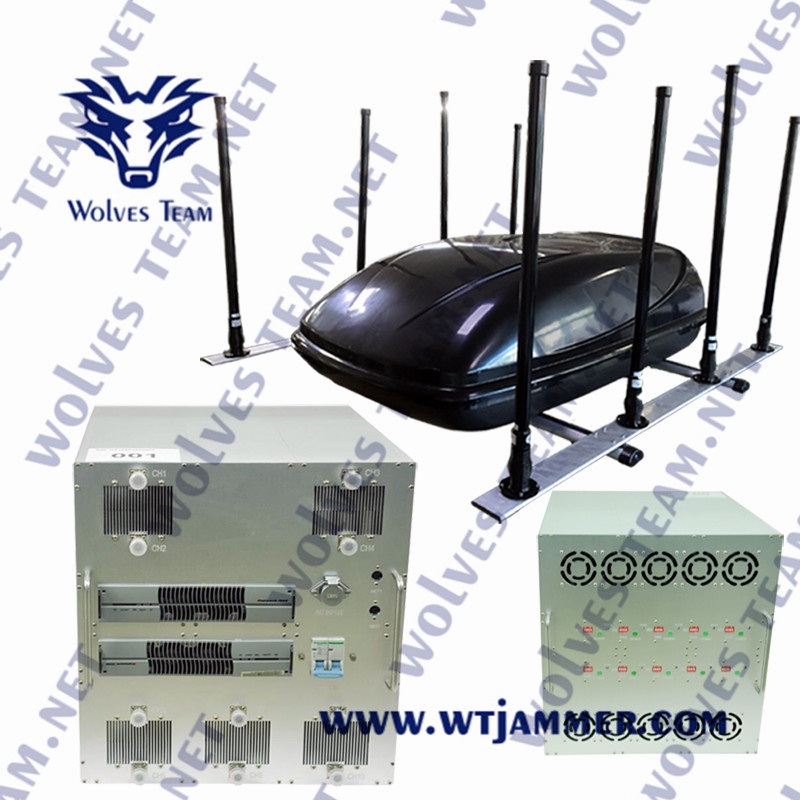

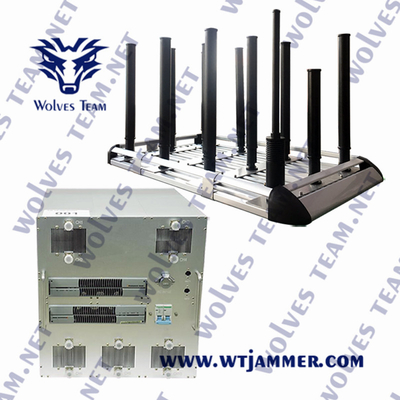

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

Affected Frequency Ranges:

Output Interface	Shield band of frequency
CH1	135-175Mhz 50w Walky-Talky(VHF(135)
CH2	300-350Mhz 50w Walky-Talky (UHF300)
CH3	400-480Mhz 50w Walky-Talky (UHF400)
CH4	850-925Mhz 50w Walky-Talky (UHF800/900) TETRA,CDMA800
CH5	925-960Mhz 50w Celluar GSM900
CH6	1805-1990 Mhz 50w Celluar HGSM 1800/DCS
CH7	1520-1580Mhz 50W GPS
CH8	3G 2110-2170 Mhz 50w Celluar UMTS /WCDMA
CH9	4G :LTE(USA:725-770MHz) or (Europe:790-826MHz)
CH10	4G : Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz)
CH11	1920-1990 Celluar GSM1900/ PCS
CH12	WIFI 2.4G 2400-2500Mhz 50W WLAN &Bluetooth
CH13	WIFI 5.8G 5700-5800Mhz 20w
CH14	5G: 3400-3600 Mhz/3600-3800 Mhz

Total output power: 1000W
Jamming range: up to 1000m, the jamming radius still depends on the strength of the signal in given area
External Omni-directional antennas all the TX frequency covered down link only
Power supply:AC 220V
Dimension:420x480x330 mm
Net Weight: 50.0kg

Accessories:

Power cable
Antennas
User manual

Applications :
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection

It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.

Advantages and Features

· The modules plug and play design, facilitate for future power upgrading, change and maintenance. Any ruin on the modules never interfere the normal operating of other modules.
· American Mil-spec standard case, shockproof and drop-resistance, available for the vehicle running in a worse field environment.
· Up to 20 Frequency Bands. All Jamming Modules Designed by DDS technology.
· Operators are able to regulate the working frequency band and output power of each module through the software. Configuring a specific frequency band can ensure internal communication in emergency.
· System operation can be performed in the driver's console unit. Each module can be ON/OFF. Backup battery or generator system can be optional.
· Device body is no more than 90kg.
· Continuously and simultaneously interference to the common used RF signals.
· Equipped with high power generator to ensure excellent low noise operational capabilities.
· Integrated backup battery system for continuous silent operation and fast start.
· Integrated smart active cooling system to make sure the device working continuously.
· Antenna is installed with a covert design.
· Video camera with LCD monitor both inside and outside the vehicle provide rear viewing and monitoring
