VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer

VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer

  • VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer
  • VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer
  • VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer
  • VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer
VIP Protection 13 Bands 500m 1000w Vehicle Signal Jammer
Product Details:
Place of Origin: China
Brand Name: wolvesteam
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: 625×500×700 mm Box package
Delivery Time: 3-4weeks
Payment Terms: L/C, T/T
Supply Ability: 100pieces/month
Contact Now
Detailed Product Description
Affected Frequency Ranges: (13bands Option) Total Output Power: 600~1300W
Jamming Range: Up To 500m, The Jamming Radius Still Depends On The Strength Signal In Given Area Power Supply: 50 To 60Hz, 100 To 240V AC
With AC Adapter: (AC100-240V-DC27V), Feature: High Power Full Frequency
Dimension: 625×500×700 Mm Monitor Software Function: Remote Control Switches Of Each Machine.
Highlight:

1000w Vehicle Signal Jammer

,

500m Vehicle Signal Jammer

VIP Protection Vehicle Full Frequency 20 - 3600 MHz Jammer With VSWR, Over-voltage, Over-current





Product Description:







 Most of us know that in important places like prisons, military meeting and museums, actions have always been taken to prevent the message from being given out. What kind of device can install in these places to reach the purpose, the Rackmount High Power Cell Phone Signal Jammer must be the one which is most suitable.

A big merit of this rockmount high power cell phone signal jammer is that each band can adjust RF power output level or turn off without influencing the other bands’ operation. The original antenna is external double channel directional panel antennas and you can select antennas to provide more flexibility regarding jamming coverage. The jamming coverage of this jammer is so strong that the jamming range could reach 500m, but the jamming range is also determined by the strength of signal in given area.
Seen from its function this one jamming device is really a good one. If you are looking for one, come here! High quality and reasonable price is our promise.


Specification
Affected Frequency Ranges: (13bands option)


Output Interface Output Frequency RF Output  watt
CH1 20-80MHz 100W
CH2 80-200MHz 100W
CH3 200-500MHz 100W
CH4 500-1000MHz 50W
CH5 1000-1500MHz 50W
CH6 1500-2000MHz 50W
CH7 2000-2500MHz 50W
CH8 2500-3000MHz 50W
CH9 870-880MHz 50W
CH10 935-960MHz 50W
CH11 1805-1920MHz 50W
CH12 935-960MHz 50W
CH13 2400-2500MHz 50W
Total output power: 600~1300W
Power supply 50 to 60Hz, 100 to 240V AC
Shielding area up to 500m, the jamming radius still depends on the strength signal in given area
Jammer Module Number 13
Cooling System Systematic Smart Cooling System
System Protection VSWR, Over-voltage, Over-current
With AC adapter (AC100-240V-DC27V),
Remote Control (Option) Each band can work independently
Antenna Type all the TX frequency covered down link only
Number of Antennas 13
Vehicle Platform(Option) Off-road four-wheel drive car
Power consumption: 800W
Weight: About 45 kg (with omnidirectional antenna.)
Size (length × wind × high) 625×500×700 mm



OTHER: Customize frequency

Accessories

  • High Power Cell Phone Signal Jammer
  • Antennas
  • Power cable





Feature and advantage:


Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.

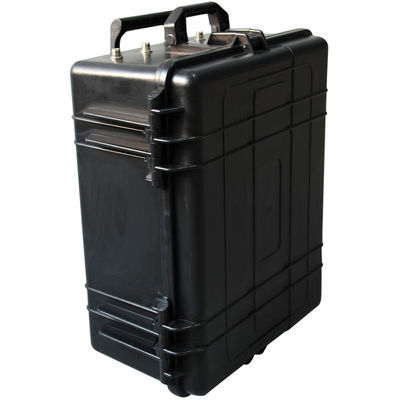

Fully portable trolley-type case for easy transportation and rapid deployment.
Supplied by AC mains or DC power source.
The jamming system has an active smart cooling system in a continuous working cycle.
Based on our general design, we can further customize our systems for client-specific scenarios both for military and civil applications in order to provide the best individualized solution.
Upgraded jamming signal source (DDS technology) to provide utmost efficiency.(option)
Field programmability for rapid adjustment to frequency and output power. (option)
Remote control can control each module working frequency, output power, etc. (option)
Backup battery system and generator system are optional. (option)


Monitor software function: (Option)

Remote control switches of each machine.
Remote viewing each machine working state.
The power output of each machine remote adjustment.
Remote viewing offline log of each machine.
Mail receiving each machine working state.
The system can set permissions to log on.

Terms and conditions:

Delivery Time Schedule Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 40% advance, 40% after one month,20% before shipping.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year : 5% of total for each years.
