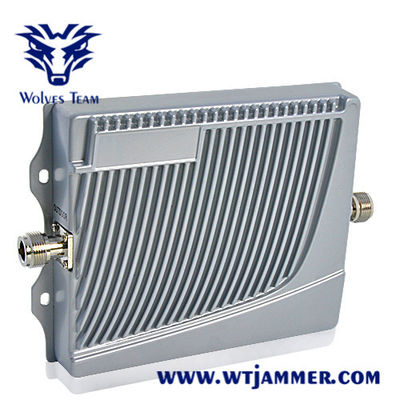

Name: GSM 850MHz 1900MHz Cell Phone Signal Amplifier
Brand: Wolves Team Limited
SKU: JM110845
Price: 1,689.00 USD
Availability: InStock

Home Products Signal Booster Repeater

GSM 850MHz 1900MHz Cell Phone Signal Amplifier

Product Details:

Place of Origin:	China
Brand Name:	wolvestTeam
Certification:	CE
Model Number:	JM110845

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated price
Packaging Details:	160 x 121 x 22 mm (L x W x D) Box
Delivery Time:	5 days
Payment Terms:	T/T
Supply Ability:	100pices/month

Contact Now

Detailed Product Description

Application Area:	House, Office, Basements,Factory ,ect	Coverage Area:	800Sqm
Feature:	High Gain, Easy Installation And Operation.	I/O Impedence:	50Ω/N Connector
Advantage:	CE And RoHs Approved	Dependability Stand By:	GB6993-86 Standard
Highlight:	1900MHz Cell Phone Signal Amplifier , 850MHz Cell Phone Signal Amplifier , GSM Portable Signal Booster

GSM 850MHz / 1900MHz Portable Cell Phone Signal Booster JM110845

Product Description

At a Glance...

Instantly boost your cell phone signals!
Dual band GSM (850MHz/1900MHz) for worldwide use
Up to 800 square meter working range
Comes ready to go - no need for anything extra!
Powerful solution at an affordable price

Specifications:

Frequency range:

-Up link GSM 824-849/PCS1850-1910(MHz)

-Downlink GSM 869-894/PCS1930-1990(MHz)

Coverage: 500-800m2 (Distance will be reduced when obstacles are in the way i.e. surrounding walls)
Gain (dB):

-GSM/PCS Up link 50/45

-GSM/PCS Downlink 50/45

Output Power (dBm) ≥17dB
Pass Band Ripple:

GSM 10dB

PCS: 15dB

Guard Band Rejection:

-GSM (BW-60dB) <=42 MHz (BW-70dB) <=42 MHz

-PCS (BW-60dB) <=104MHz (BW-70dB) <=104MHz

-I/O Return Loss <= -10dB

-Noise Figure: <= -8dB

Intermodulation Attenuation (PO = 13dBm) >= 40dBc
Transmission Delay: <= 0.5 us
Ambient Temperature: -10 degree – 50 degree C
Power supply: AC110220V 4555Hz
Dimensions: Signal Booster: 160 x 121 x 22 mm (L x W x D)

Certification: CE, FCC, RoHS

Product Notes

Long range cell phone signal booster! Up to 800 square meters!
This device is for GSM 850and 1900 MHz signals only. Please check frequency your country uses before purchasing

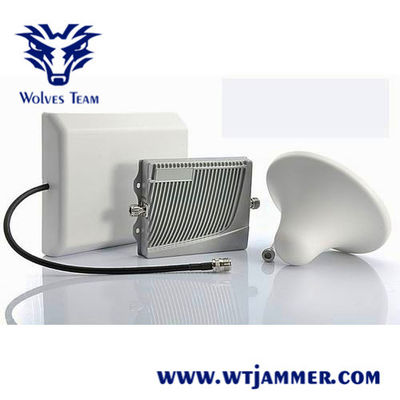

Accessories :
