Place of Origin: | China |
Brand Name: | wolvesteam |
Certification: | CE |
Model Number: | WT500271 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiated price |
Packaging Details: | Size:36.5*25*48cm , Weight:Up to 30KG |
Delivery Time: | 25 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100pieces/month |
Control: | Wireless Management Control | Type: | Prison Jammer |
---|---|---|---|
Frequency For: | GSM,CDMA,Dcs/PCS,3G,4G Lte,4G Wimax | Application Area: | Prison, Military Units, Police, Bomb Disposal |
Antenna: | Directional Or Omnidirectional Antennas Option | Packing: | Box |
Weight (without Antennae): | Up To 35KG | Output Power: | Up To 80-350Watt |
Size: | 36.5*25*48cm | Jamming Range: | Up To 25~300M |
Highlight: | 80W Cell Phone Signal Jammer,300M Cell Phone Signal Jammer,CDMA Jail Signal Jammer |

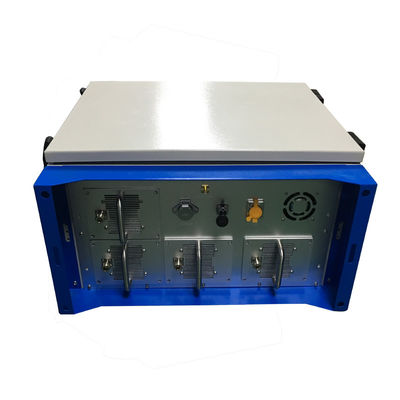

Customized Durable Waterproof Outdoor Frequency WIFI GPS Jail Cell Phone Signal Prison Jammer
Product Description:
This jammer is specially for prisons and other large sensitive locations such as military or governmental compounds. This high power system has been approved and installed by Prison Authorities in very large prison facilities in several Countries world wide.
It can effectively shield (interference) up to 25-300 meters all indoor and outdoor signals such as 2G / 3G / 4G mobile phone signal and intercom, remote bomb, WiFi signal, shielding eraser, SMS pen,stealth headphones, watches cheating, glasses probe wireless signal, to prevent candidates cheat, protect the venue quiet, and to prevent bomb attacks.
Features:
1. UHF Broadband Interference Technology.
2. High effective power (channel power) and large radius coverage range.
3. Effective segmentation,Only interfere with the downlink, it will not cause interference to the base station.
4. Imported Materials, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation.
5. Perfect self-protection function, when the device is overheated, output over-power, standing wave and other fault alarms, the jammer will automatically turn off the failed module to avoid damage to the jammer;
Specifications:
Output Interface | Output Frequency |
CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
CH2 | -DCS: 1805-1880MHz |
CH3 | -PCS: 192-1990MHz |
CH4 | -3G: 2110-2170MHz |
CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
Type: | Prison Jammer |
Output Channel: | 6 channels |
Output power: | Up to 80-350Watt ( For customization, you can select the out put power. ) |
Jamming Range | Up to 25~300M (It depends on the signal strength in the given area) |
Jammer Module Number | 6 |
HS Code: | 8543709200 |
Packing: | Box |
Dimension (not including antennae) | 36.5*25*48cm |
Working time: | 24 hours/365days continuously. |
Weight (without antennae): | Up to 30KG |
Control: | Wireless Management Control |
Power Adjustment: | Multi level potentiometer |
Power supply: | AC110-240V, DC-24V |
Cooling system: | Active "smart" with integrated incoming air filter |
Antennae type: | External high gain Omni directional Antenna |
Battery | 24V,30AH,Built-in standby battery can used for 90~120 minutes |
We could supply customized service by your detail requirements about frequencies setting.
All 6 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
CDMA 800: | 851-894MHz |
GSM 900: | 925-960MHz |
DCS 1800: | 1800-1880MHz |
PHS 1900: | 1920-1990MHz |
3G 2100(UMTS): | 2110-2170MHz |
WIFI 2.4G Bluetooth: | 2400-2500MHz |
WiFi3.6G: | 3500-3600MHz |
Wi-Fi5.2G: | 5100-5500MHz |
WIFI 5.8G | 5725-5850MHz |
4G/LTE 700M: | 725-770MHz(US) |
4G/LTE 800M: | 790-826MHz(EU) |
4G Wimax: | 2300-2400MHz(US) |
4G Wimax: | 2620-2690MHz(EU) |
GPS/L1: | 1500-1600MHz |
GPS/L2: | 1200-1300MHz |
GPS/L3: | 1300-1400MHz |
GPS/L4: | 1100-1200MHz |
VHF: | 135-174MHz |
UHF: | 400-470MHz |
Lojack: | 167-175MHz |
RF315: | 315MHz |
RF433: | 433MHz |
RF868: | 868MHz |
Application:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;ect.
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year :5% of total for each years. |
