GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station

GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station

  • GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station
  • GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station
  • GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station
GSM CDMA Anti Uav Drone Jammer 1000m 240VAC For Oil Gas Base Station
Product Details:
Place of Origin: China
Brand Name: Wolvesteam
Certification: CE
Model Number: JM311025-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: Box 520×580×330 mm
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100pieces/month
Contact Now
Detailed Product Description
Type: Waterproof Adjustable Block Frequency: GSM CDMA 3G 4G 5G WIFI VHF UHF
Total Output Power: 500~1300W Jamming Range: Up To 500-1000m, The Jamming Radius Still Depends On The Strength Signal In Given Area
Power Supply: 50 To 60Hz, 100 To 240VAC Monitor Software Function: Remote Viewing Each Machine Working State
Advantage: Each Band Can Adjust RF Power Output Level Or Turn Off Without Influencing The Other Bands’ Operation Application Area: Military Units, Prison, Police, Bomb Disposal
Highlight:

GSM Anti Uav Drone Jammer

,

CDMA Anti Uav Drone Jammer

,

240VAC Bomb Signal Jammer

Product Description:

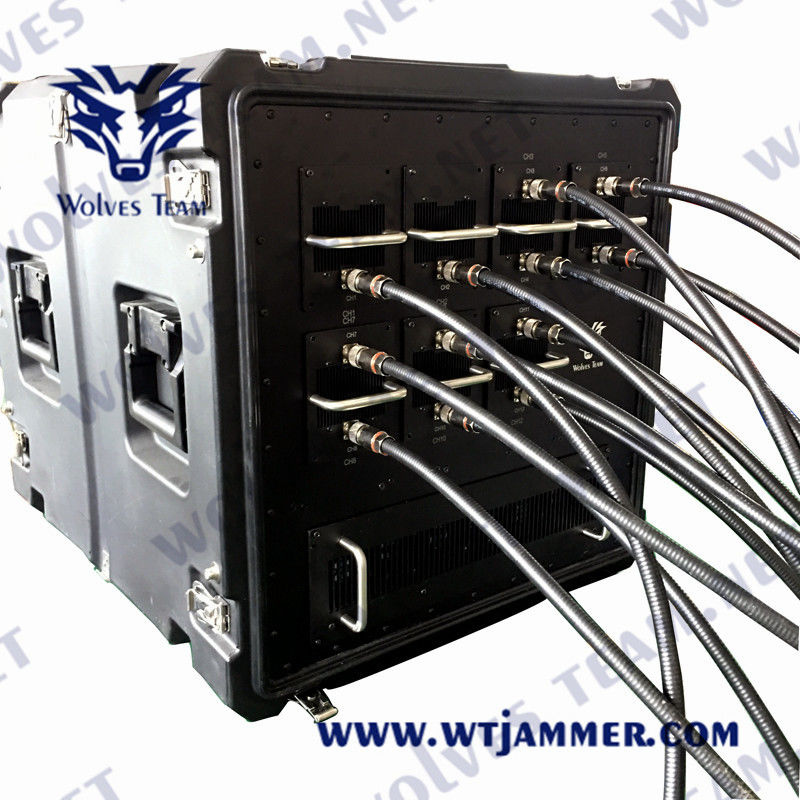

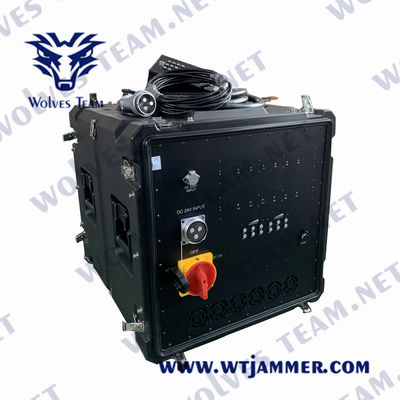

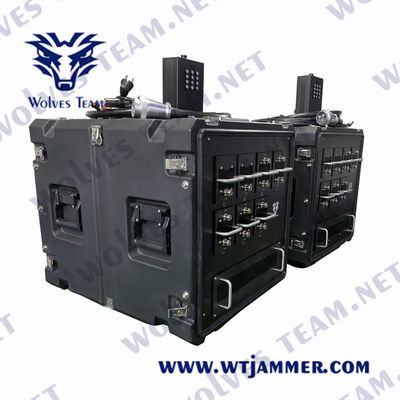

DDS High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System ,Oil Gas Base Station Anti-Uav Drone Jammer Bomb Ied Vehicle Jammer up to 1000 Meters.



Once the system is activated, it transmits unique noise signal which creates "Firewall" between the transmitter (terrorist) and its receiver (explosive device), so can prevent the remote control bomb from the terrorists.
There is absolutely no better way to defend your VIP from the threat of radio-activated bombs.





Advantages and Features:


• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.

• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.





Specification

  • Affected Frequency Ranges: (10bands option)
Output Interface Output Frequency Output power
CH1 CDMA 800: 850 to 894MHz 50-100w
CH2 GSM 900: 925 to 960MHz  50-100w
CH3 GSM 1800: 1805 to 1880MHz (DCS)   50-100w
CH4 GSM 1900: 1920 to 1990MHz (PCS)   50-100w
CH5 3G: 2110 to 2170MHz  50-100w
CH6 4G LTE: (USA:725-770MHz) or (Europe:790-826MHz)  50-100w
CH7 4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz)  50-100w
CH8 WiFi: 2400-2500MHz  50-100w
CH9 VHF: 136-174MHz  50-100w
CH10 UHF: 400-470MHz  50-100w
CH11 5G:3200-3600MHz  50-100w
CH12 5G:3600-4200MHz  50-100w
CH13 20-100MHz 50-100w
CH14 100-500MHz 50-100w
CH15 500-1000MHz 50-100w
Total RF Power 500~1300W
Power supply AC220V
Shielding area 500-1000m @ according to signal density of mobile network
Jammer Module Number 10
Power consumption 1000W
Weight 50.00 Kg
Size (length x wind x high) 520×580×330 mm
Humidity 30%-95%
Running Temperature -20 to +55 Celsius Degree
Battery Working Time (Option) 2 or 3 hours





Accessories

  • High Power Cell Phone Signal Jammer
  • Antennas
  • Power cable





Products Application Fields


High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
