Place of Origin: | China |
Brand Name: | Wolvesteam |
Certification: | CE |
Model Number: | JM311025-1 |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiated price |
Packaging Details: | Box 520×580×330 mm |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100pieces/month |
Type: | Waterproof Adjustable | Block Frequency: | GSM CDMA 3G 4G 5G WIFI VHF UHF |
---|---|---|---|
Total Output Power: | 500~1000W | Jamming Range: | Up To 500-1000m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
Power Supply: | 50 To 60Hz, 100 To 240VAC | Monitor Software Function: | Remote Viewing Each Machine Working State |
Advantage: | Each Band Can Adjust RF Power Output Level Or Turn Off Without Influencing The Other Bands’ Operation | Application Area: | Military Units, Prison, Police, Bomb Disposal |
Highlight: | GSM CDMA Vehicle Signal Jammer,Vehicle Signal Jammer 1000W,5.8G GPS Waterproof Signal Jammer |

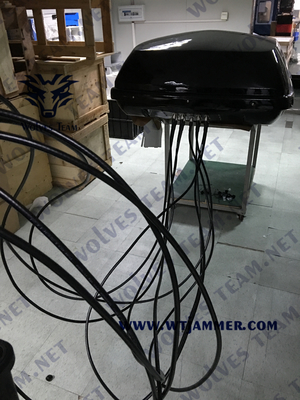

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
The jammer is designed to protect VIP person or special agent. It is developed on explicit requests of the military and governmental institutions around the world.
Advantages and Features:

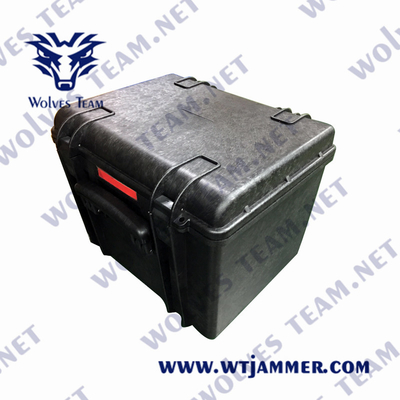

• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Specification

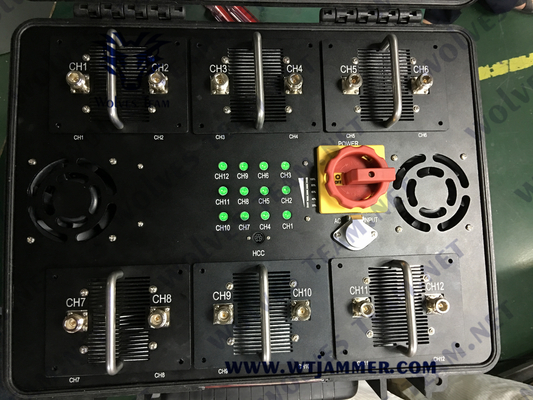

Output Interface | Output Frequency | Output power |
CH1 | CDMA 800: 850 to 894MHz | 50-100w |
CH2 | GSM 900: 925 to 960MHz | 50-100w |
CH3 | GSM 1800: 1805 to 1880MHz (DCS) | 50-100w |
CH4 | GSM 1900: 1920 to 1990MHz (PCS) | 50-100w |
CH5 | 3G: 2110 to 2170MHz | 50-100w |
CH6 | 4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) | 50-100w |
CH7 | 4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) | 50-100w |
CH8 | WiFi: 2400-2500MHz | 50-100w |
CH9 | VHF: 136-174MHz | 50-100w |
CH10 | UHF: 400-470MHz | 50-100w |
CH11 | 5G:3200-3600MHz | 50-100w |
CH12 | 5G:3600-4200MHz | 50-100w |
CH13 | WIFI5.8g: 5700-5800MHz | 50-100w |
Total RF Power | 500~1000W | |
Power supply | AC220V | |
Shielding area | 500-1000m @ according to signal density of mobile network | |
Jammer Module Number | 10 | |
Power consumption | 1000W | |
Weight | 50.00 Kg | |
Size (length x wind x high) | 520×580×330 mm | |
Humidity | 30%-95% | |
Running Temperature | -20 to +55 Celsius Degree | |
Battery Working Time (Option) | 2 or 3 hours |
Accessories
At a glance:
