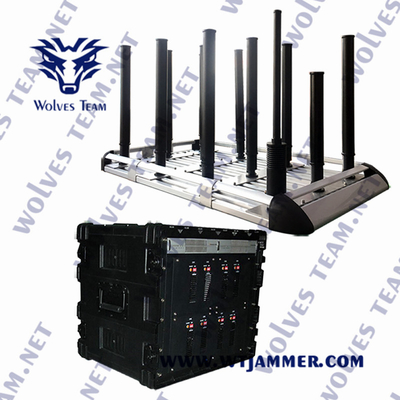

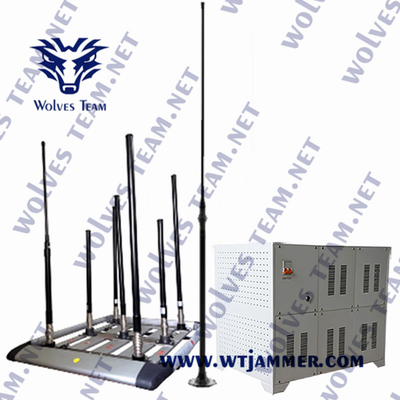

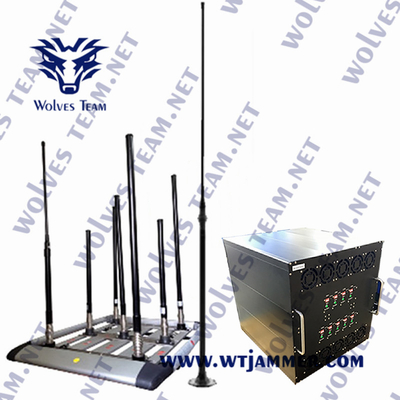

500 Meters Portable Aluminum - Alloy Casing Bomb 2G 3G 4G 5G Signal Jammer
Product Description
It is suitable to protect important leadership or VIP security, individual combat,SWAT teams, EOD teams,anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement,hostage negotiations, border control and military security forces and other application areas.
Advantages:
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.

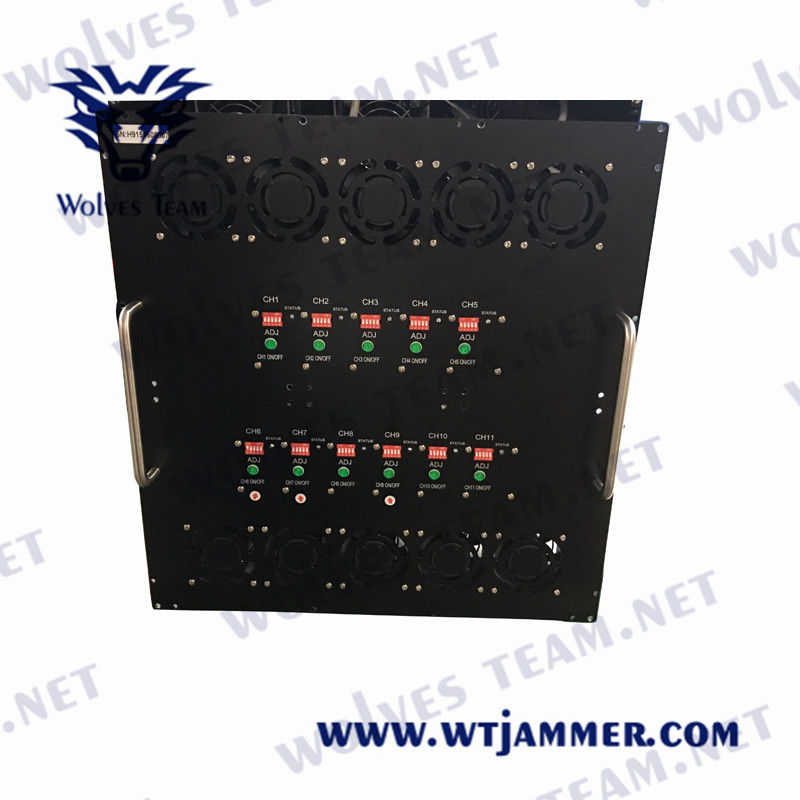

• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Specifications:
| Output Interface |
Output Frequency |
| CH1 |
CDMA:850-894MHz |
| CH2 |
GSM:925~960MHz |
| CH3 |
DCS/PCS:1805-1990MHz |
| CH4 |
3G: 2110MHz-2170MHz |
| CH5 |
GPS: 1500-1600MHz |
| CH6 |
WiFi: 2400-2500MHz |
| CH7 |
4G LTE::725-770MHZ or 790-826MHZ |
| CH8 |
4G Wimax:2345-2400MHZ or 2496-2690MHZ |
| Type: |
Bomb Signal Jammer |
| Output Channel: |
8 channels |
| Output watt: |
500 Watt |
| Jamming Range |
Up to 500 meters (It depends on the signal strength in the given area) |
| Jammer Module Number |
8 |
| HS Code: |
8543709200 |
| Packing: |
Box |
| Size: |
55.6*44.5*22.6 cm |
| Battery Working time: |
2hours |
| Total System Weight: |
Up to 35KG |
| Control: |
Wireless Management Control |
| Power Adjustment: |
Multi level potentiometer |
| Power supply voltage: |
230VAC/~110VAC, +12/24VDC (optional) |
| Cooling system: |
Active "smart" with integrated incoming air filter |
| Antennae type: |
External high gain Omni directional Antenna |
| Battery |
24V,30AH,Built-in standby battery
can used for 90~120 minutes |
Application:
Built-in high capacity battery and portable waterproof design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
| Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms |
40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery |
FOB HONGKONG/ USA. |
| Warranty |
36 months. |
| Software Updates |
Free software updates will be provided for a period of 36 months. |
| Extended Warranty |
After 4th Year :5% of total for each years. |
