Place of Origin: | China |
Brand Name: | wolvesteam |
Certification: | CE |
Model Number: | WT700125 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | negotiated price |
Packaging Details: | Size:55.6*44.5*22.6 cm, Weight:36kg |
Delivery Time: | 25 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100pieces/month |
Packing: | Box | HS Code: | 8543709200 |
---|---|---|---|
Switch Control: | Manually | Total Output: | 500W |
Jamming Range: | 500 Meters | Type: | Draw Bar Box Jammer |
Built-in Battery: | 24V,30ah | Size: | 55.6*44.5*22.6 Cm |
Weight: | 36kg | Frequency For: | GSM,CDMA,Dcs/PCS,3G,4G Lte,4G Wimax |
Use For: | Police Use For VIP Protection | Frequency Bands: | 8 Bands |
Highlight: | GSM PCS Vehicle Signal Jammer,500W CDMA Vehicle Signal Jammer,VHF UHF RF Signal Jammer |
GSM PCS 3G 4G 5G WIFI GPS VHF UHF Bomb All Cell Phone Signal Jammer
Product Description

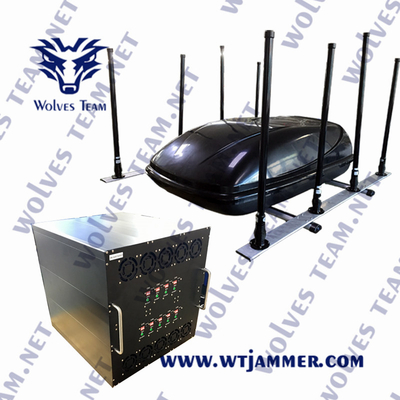

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VVIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Features:
1, Specially used for anti-terrorism, EOD, bomb-disposal, force filed work, etc;
2, Large coverage for 8 channels frequencies and other customized output;
3, It designed for portability and easy moving;
4, Built-in rechargeable battery can be used for 90~120 minutes after being fully charged;
5, Manual switch and remote control;
6, Efficient frequency division ensures the best interference effect on signals of different frequencies.
7, Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed ( optional gear regulation);
8, Military standard casing, which is anti-throw, pressure-resistant and durable;
9, AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply (DC24V);
10, Built-in efficient cooling fan and cooling fin ensures the product work stably in a long service life.
Specifications:
Output Interface | Output Frequency |
CH1 | CDMA:850-894MHz |
CH2 | GSM:925~960MHz |
CH3 | DCS/PCS:1805-1990MHz |
CH4 | 3G:2110-2170MHz |
CH5 | 4G LTE::725-770MHZ or 790-826MHZ |
CH6 | 4G Wimax:2345-2400MHZ or 2496-2690MHZ |
CH7 | 5G:3200-3600MHZ |
CH8 | 5G:3600-4200MHZ |
CH9 | WiFi: 2400MHz-2500MHz |
CH10 | GPS L1: 1575.42 Mhz |
CH11 | VHF: 135-175MHz |
CH12 | UHF: 400-470MHz |
Type: | Vehicle Jammer |
Output Channel: | 12 output channels |
Output Power: | 500w |
Parameter Shielding Range: | Radius 20-500 meters(-75dBm,depending on the distance of base station in an open filed) |
Jammer Module Number | 12 |
HS Code: | 8543709200 |
Packing: | Box |
Size: | 55.6*44.5*22.6 cm |
Antenna | 375 Φ29 |
Technical Parameters: | |
Net Weight | 45kg |
Total Weight | 55kg Aviation Case included |
Ambient Temperature | -10ºC - +50ºC |
Relative Humidity | ≤80% |
Power Consumption | ≤360W |
Power Input | AC100~240V,DC24V |
Battery | 24V,30AH,Built-in standby battery can used for 90~120 minutes |
Antenna Parameters | Omni antennas,gain:4~5dBi |
Switch Control | Manually |
Equipment Chassis | Metallic Paint |
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year :5% of total for each years. |
