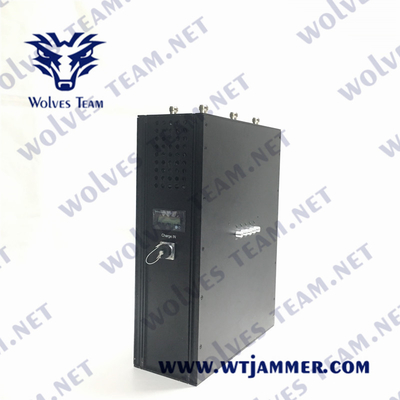

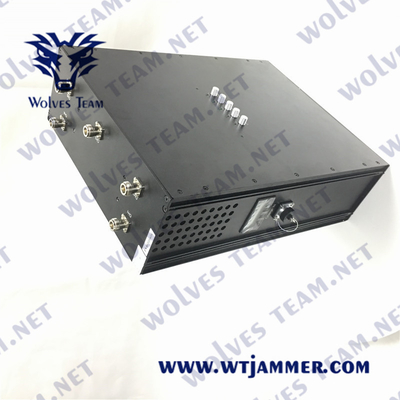

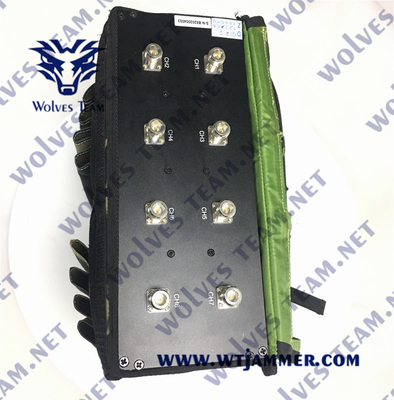

Name: Military EOD Backpack Signal Jammer GSM 80 Watt Manpack RF Jammer
Brand: Wolves Team Limited
SKU: WT600184
Price: 1,689.00 USD
Availability: InStock

Home Products Backpack Signal Jammer

Military EOD Backpack Signal Jammer GSM 80 Watt Manpack RF Jammer

Product Details:

Place of Origin:	China
Brand Name:	wolvesteam
Certification:	CE
Model Number:	WT600184

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiated price
Packaging Details:	Dimension (not including antennae): 304515cm, Weight:15kg
Delivery Time:	25 days
Payment Terms:	L/C, T/T
Supply Ability:	100pieces/month

Contact Now

Detailed Product Description

Packing:	Box	HS Code:	8543709200
Jamming Range:	50-150 Meters	Type:	Backpack Jammer
Weight:	15 Kg	Frequency Bands:	6 Bands
Antennae Type:	External High Gain Omni Directional Antenna	Application Area:	Military Units, Prison, Police, Bomb Disposal
Switch Control:	Manually	Output Power:	80 Watt
Highlight:	Military EOD Backpack Signal Jammer , GSM EOD Backpack Signal Jammer , 80 Watt Manpack RF Jammer

Military High Power EOD Backpack GSM 3G 4G 5G Cell Phone Signal Jammer Manpack RF Jammer

Product Description

1,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. This is highly portable and light weight.

2,It plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.

3,This is full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 6 different jamming modules, the jamming frequency can be more than 8 Bands. Jamming frequency module can be up to 120 watt output power maximum.

4,It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.

Features:

Specially used for anti-terrorism,EOD,bomb-disposal,force filed work,etc;
Large coverage for 6 channels frequencies and other customized output;
Backpack design for portable carry and flexible operation.Specially applicable for emergency,transitions, temporary control requirements;
Built-in efficient rechargeable battery can be used for 2 hours after fully charged;
Camoflage customized backpack convenient to install and operate;
Metallic paint chassis box,pressure-resistant and durable;
Built-in efficient cooling fans and cooling fin ensure the product work stable in a long service time.

Specifications:

Output Interface	Output Frequency
CH1	-CDMA: 851-960MHz /-GSM: 925-960MHz
CH2	-DCS: 1805-1880MHz
CH3	-PCS: 192-1990MHz
CH4	-3G: 2110-2170MHz
CH5	-4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU)
CH6	-4G LTE: 725-770MHz(US) or 790-826MHz(EU)
Jammed Signal Freqency:	CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF....
Type:	Backpack jammer
Output Channel:	6 output channels
Power Consumption:	Max: 220W
Output power:	80watt
Parameter Shielding Range:	Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed)
Jammer Module Number	6
HS Code:	8543709200
Packing:	Box
Dimension (not including antennae):	30 45 15cm
Technical Parameters:
Net Weight	14kg
Total Weight	15kg Aviation Case included
Ambient Temperature	-10ºC - +50ºC
Relative Humidity	≤80%
Power Consumption	≤360W
Power Input	AC100~240V,DC24V
Battery	24V,30AH,Built-in standby battery can used for 90~180 minutes
Antenna Parameters	Omni antennas,gain:4~5dBi
Switch Control	Manually
Equipment Chassis	Metallic Paint
Cooling system	Active "smart" with integrated incoming air filter
Antennae type:	External high gain Omni directional Antenna

Terms and conditions:

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year :5% of total for each years.

Military EOD Backpack Signal Jammer GSM 80 Watt Manpack RF Jammer 0

Military EOD Backpack Signal Jammer GSM 80 Watt Manpack RF Jammer 1
