Ku Band 12-18ghz Surveillance Radar Low Altitude

Brand Name:	wolvesteam
Model Number:	WT-R6000-3
MOQ:	1
Price:	negotiated price
Delivery Time:	20 days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Detection Distance:

5000 Meters Distance

Speed Accuracy:

0.293m/s

Azimuth Beam Width:

1.9 °

Pitch Beam Width:

7 °

Operating Frequency Band:

Ku Band

Working Mode:

Pulse Doppler

Packaging Details:

Box 47 x 11 x 36 cm (Lx W x H)

Supply Ability:

100pieces/montgh

Highlight:

ku band surveillance radar

12-18ghz surveillance radar

surveillance radar low altitude

Product Description

Radar Ku Band Detection Tracking Distance up to 5000 Meters Tracking airplane

Product Description:

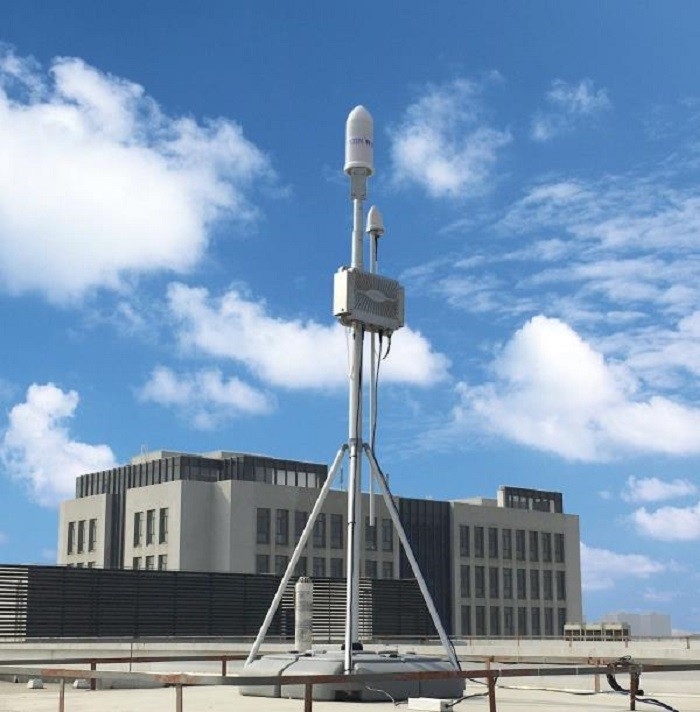

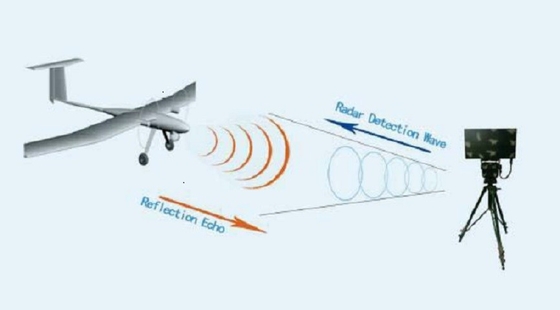

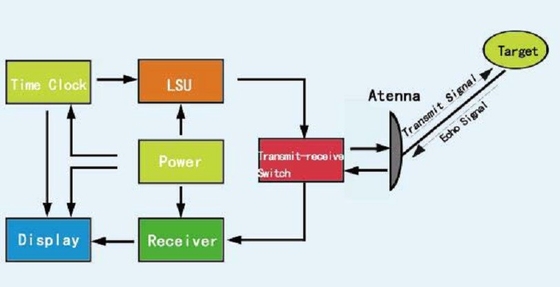

The WT-R06Ku Radar is a low-altitude surveillance and reconnaissance device with an operating frequency in the Ku band. The linear frequency modulation pulse system with wide-angle frequency-sweep waveguide antenna, pitch-dimensional frequency scanning and azimuth machine scanning are suitable for single radar airspace full coverage application scenarios. In the pitch dimension, frequency scanning technology is used to replace the costly phased scanning technology, which is cost-effective.

Features
1. High sensitivity and stable performance.
2. Strong resistance to active passive interference;
3. High resolution and accuracy;
4. Solve the technical bottleneck for current ordinary radar at home and abroad.

Ku Band 12-18ghz Surveillance Radar Low Altitude 0
