Product Description:
The Outdoor Waterproof drone jammer is our company's latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return. Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz,Remote-Control Signal and Image Transmission Signal 5800MHz.
Advantages and Features:
1.Batteries are separate from the main device,easy to be replaced and maintained.
2.Friendly using, no need professional electronic training or knowledge;
3.The integrated gun design meets the needs of the police equipment and has powerful effect;
4.Built-in high-gain directional antennas, long-distance transmission range, precise controllable range;
5.High-strength mold injection molded housing, dustproof, water-proof,
anti-corrosion;
6.Over-voltage and over-current protection, heat protection, stable operation;
7.Safety does not harm the human body;
8.The general design of the system meets military requirements
9.Integrated main equipment, battery,
10.Each band can alone switch on/off.
Applications:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp,all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
Specifications:
| Output Interface |
Shield band of frequency (MHz) |
Output Power |
| CH1 |
2.4G |
100W |
| CH2 |
GPS L1 |
100W |
| CH3 |
5.8G |
100W |
| CH4 |
20-2700MHz |
option |
| Power supply: |
AC110~220V/DC (option) |
| Total RF Power : |
300W |
| Field strength at -80dBm, Shielding area: |
5000 ~ 10000m @ according to signal density of mobile network. |
| Weight: |
30.0Kg |
| Humidity: |
30%-95% |
| Running Temperature: |
-10 to +55 Celsius Degree |
| Packing: |
Box |

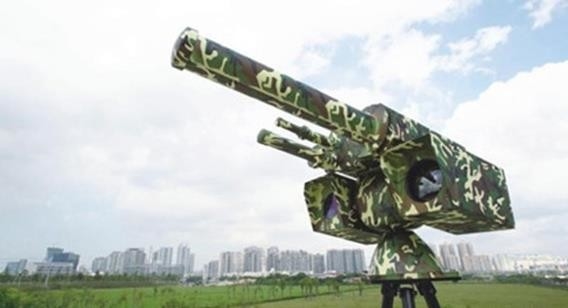

The photoelectric search, recognition and tracking subsystem is mainly composed of image acquisition unit and image processing unit, while the image acquisition unit is composed of visible camera, infrared camera, cloud platform, night vision controller, data transmission line and so on. The main image acquisition unit is the infrared night vision device, through which the image is collected and sent to the image processing unit.
Main functions:
The system can search, recognize and track "low-slow and small" targets such as micro-UAV.
With visible and infrared systems
Communication and Interconnection and Cooperative Work with Early Warning Radar Subsystem
Controlling servo turntable
Detection, identification and tracking of UAV
Estimating the azimuth and altitude of UAV
Output of UAV coordinates and other information
