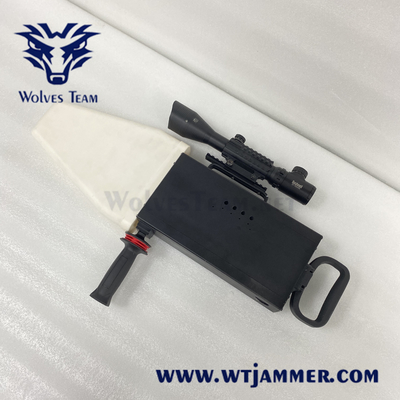

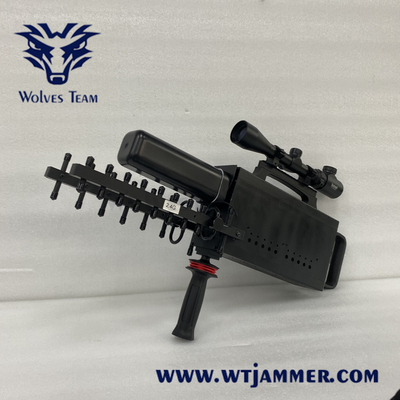

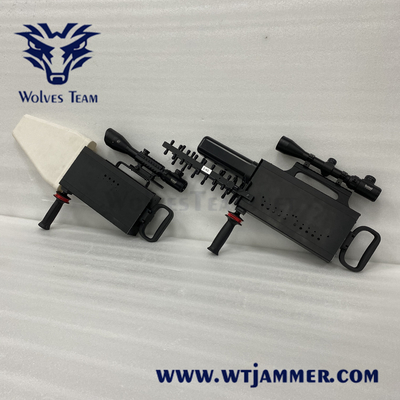

Portable Handheld Anti UAV Drone Jammer WIFI GPS VSWR Over Voltage Over Current Protection

Product Description:

The portable drone jammer is our company's latest product designed by R&D department,the drone jammer disables the targeted drones by
remote-control signal and GPS signal, to force the drone fall or return.
Effective interference with UAV's Remote-Control Signal 2400MHz, GPS signal 1500MHz,
Remote-Control Signal and Image Transmission Signal 5800MHz.

Specifications


Output Interface RF Frequency Band(MHz) Application RF Output Power (Watt)
CH1 1560-162MHz GPS/GLONASSL1   20W
CH2 2400-2500 MHz WIFI2.4                  20W
CH3 5700-5800 MHz WIFI5.8                  20W


Total RF Power :60 Watt

Shielding area 1000-2000m @ according to signal density of mobile network
Jammer Module Number 3
Cooling System Systematic Smart Cooling System
System Protection VSWR, Over-voltage, Over-current
Jamming Source PLL Source Technology
Antenna Type High Gain directional Antennas
Number of Antennas 3
Power supply AC110V or AC220V
Power Supply Source :
Battery ≥ 1 h (at normal capacity)
Battery ≥ 2 h (at full capacity)
Weight: 6.00Kg
Size (length × wind × high):550x320x15mm gun
Humidity:30%-95%
Running Temperature: -20 to +55 Celsius Degree

Products Application Fields

High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
