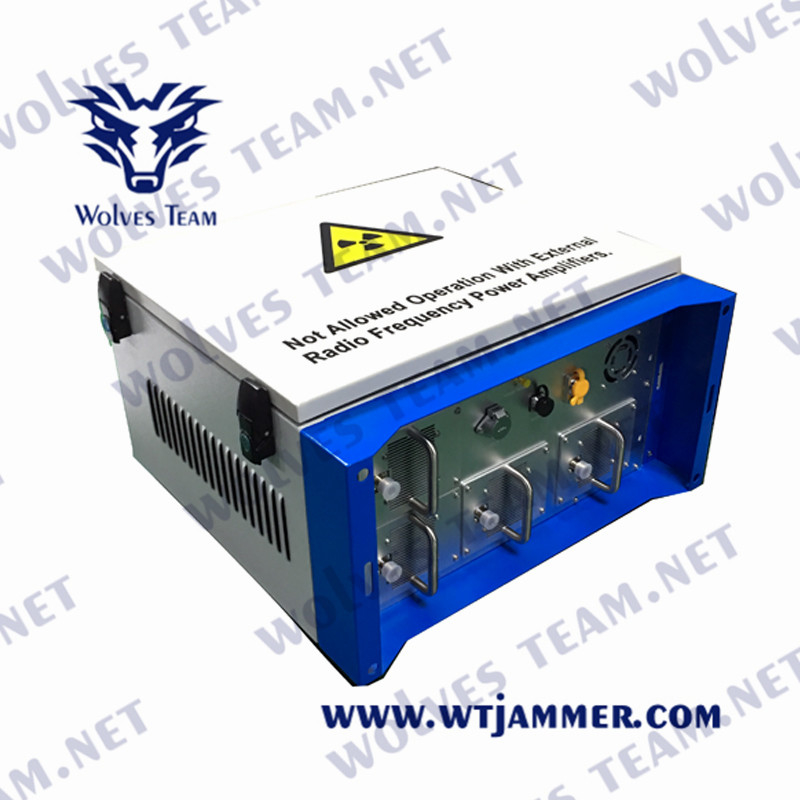

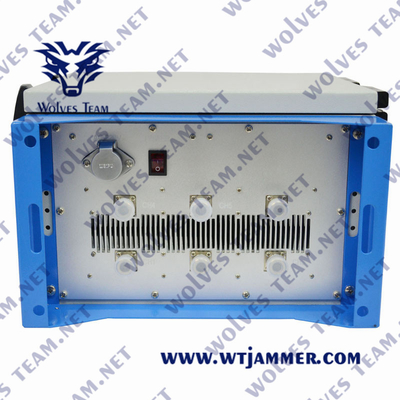

2500 Meters VIP Protection Defence RF GPS WIFI5.8G Signal Drone Jammer
Product Description:
This Drone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.
The frequency segment can be customized. Its normal frequency setting is 2G,3G,4G + Wi-Fi or 2G,3G,4G + GPS. The output power of each channel is 10-30W, and the total output power is 600W. The shielding range of this prison signal shielding device can be Up to 2500 meters, and its configuration antenna can also be selected according to your needs.
There are several types of antennas. One is a directional antenna. The coverage of this type of antenna is relatively long, and the signal can be covered for the orientation you need, rather than covering the signal
centered on a certain point. Another type of antenna is a fiberglass omni directional antenna that radiates a signal outward at a certain point. The range in which the gain of the antenna is also different is also different. These are all you can customize as needed. Please contact us if you need it.
Advantages
Each unit can jam up to 6-12 frequency bands simultaneously.
Continuous operation even in hot climates with no time limits.
Design for outdoor installation.
Secure design to avoid sabotage.
Antenna type options-Omni or directional antennas.
Selection of antennas to provide more flexibility regarding jamming coverage.
Additional option: wireless RC or Ethernet PC remote control.
100% Safe VSWR over protection for each modula.
Special Advantages over other suppliers
- Our jammer can Keep extend upgrade module installation.
That mean when have new frequency like 4G 5G, than we just only need to order a 4G 5G module that can easy to finished
- upgrade and save much money for further upgrade.
Software management control, Map-based control and management, map-based view and management of each machine.
Mean is you can easy to see which jammer where in your location map, and easy to control them, when the jammer have problem you can fast alarm and easy to check control them.
- Group management, which can set up group management and view the status of each machine.
When you have many prison or many jammer in your location, you can make a group to manage them.
Unified management and control of multiple prisons.
Specifications:
Isolating Signal Bandwidth:
| Output Interface |
Output Frequency |
| CH1 |
-WIFI 2.4G: 2400-2500MHz |
| CH2 |
-WIFI 5.8G: 5725-5850MHz |
| CH3 |
-GPSL1: 1560-1620MHz |
| CH4 |
-900:868-916MHz |
| CH5 |
-433: 433 Mhz |
| CH6 |
-WiFi3.6G: 3500-3600MHz |
| Total Output Power: |
600W |
| Jamming Range: |
Up to 2500m |
| Power Supply: |
Inside Battery 28V 7.5AH /External Battery |
| Antennas Details: |
Built-in Antennas |
| Dimensions Of Device: |
660×580×50 mm |
| Weight Of Product: |
35kg |
| Built-in Battery |
DC-24V 8AH/Support 40-50min |
| Continuous working hours: |
24 *7 hours working (AC 220V); |
| Humidity: |
5% - 95% |
Application:
Jammers for prisons and other large sensitive locations such as military or governmental compounds.
Homeland Security, Correctional Centers,Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants...etc.
Terms and conditions:
| Delivery Time Schedule |
Delivery time is 1-2 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms |
50% advance, 50% before shipping. |
| Terms of Delivery |
FOB HONGKONG/ USA. |
| Warranty |
36 months. |
| Software Updates |
Free software updates will be provided for a period of 36 months. |
| Extended Warranty |
After 4th Year :5% of total for each years. |
