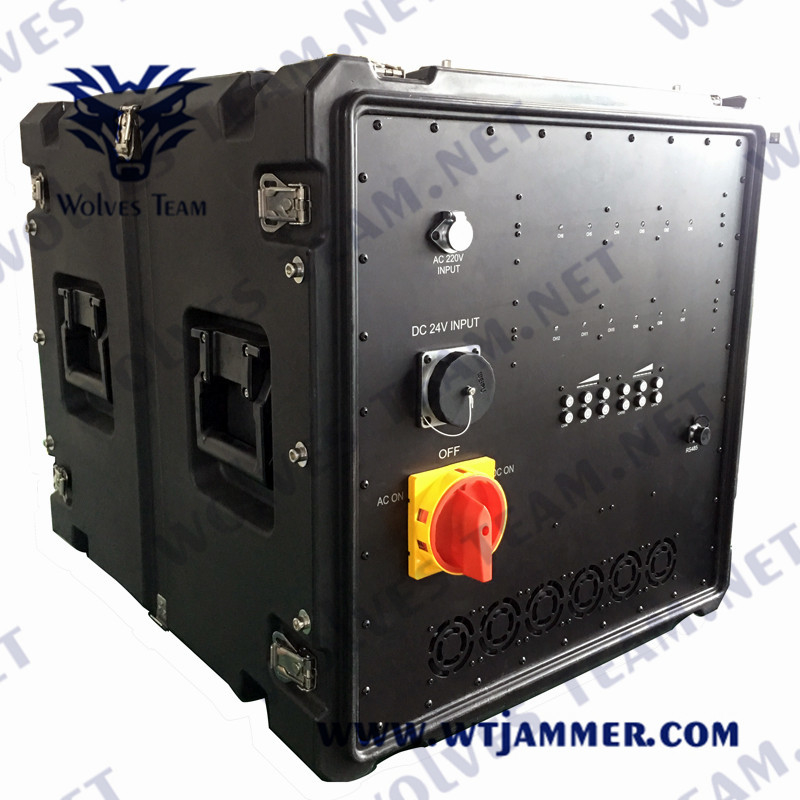

Name: 1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM
Brand: Wolves Team Limited
SKU: WT802814DM
Price: 1,689.00 USD
Availability: InStock

Home Products Vehicle Signal Jammer

1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM

Product Details:

Place of Origin:	USA
Brand Name:	Wolvesteam
Certification:	CE,FCC
Model Number:	WT802814DM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated price
Packaging Details:	Dimension: 63×49.2×35.2cm Weight: 45kg
Delivery Time:	3-4 weeks
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal
Supply Ability:	2000 pcs per years

Contact Now

Detailed Product Description

Type:	Vehicle Bomb Jammer	RF Power:	1400W
Working Time:	24 Hours/365days Continuously	Special Technology:	Prevent Interference Between Each Frequency Band
Weight:	48kg	Signal Jammer For:	20 - 6000MHz Signal
Shielding Range:	Up To 1000 Meters	Advantage:	Keep For Upgrade Module Installation
Highlight:	1400W Vehicle IED Bomb Jammer , 14bands Vehicle IED Bomb Jammer

1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM

Product Description

Now protecting military and VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs)-road-side bombs have become a challenge and task in many parts of the world.

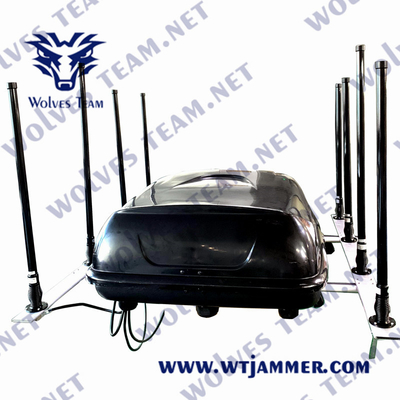

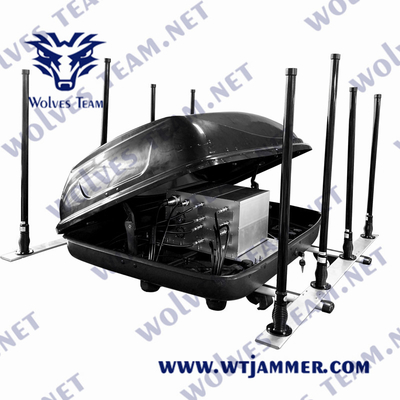

We recommend DDS High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer system, It can implement the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

It can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz~6000MHz (or 20-3600MHz) which are most commonly used by terrorists to detonate road-side bombs (RCIEDs).Adopting the latest jamming technologies, the features ultra-high RF transmission power of 1300 watt, making a bigger shielding range around the vehicle. Beyond the installation of the convoy protection device itself, the vehicle is customized with special RF protection for full protection of the driver and passengers. System management, including activation and control and operation is carried out through a wired remote control unit installed covertly inside the driver’s console unit.

Once the system is activated, it transmits unique noise signal which creates "Firewall" between the transmitter (terrorist) and its receiver (explosive device), so can prevent the remote control bomb from the terrorists.

There is absolutely no better way to defend your VIP from the threat of radio-activated bombs.

Advantages and Features

Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status.
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options, directional or Omni-directional antennas option.
Easy operation and installation.
Keep for upgrade module installation.
Working 24 hours/365days continuously.

Technical Specifications

14 bands for option: The frequencies can be from 20-6000MHZ

Output Interface	RF Frequency Band(MHz)	Application	RF Output Power (Watt)
CH1	20-350MHz DDS	RF 20-350	100W
CH2	350-500MHz	RF 350-500	100W
CH3	500-1000MHz DDS	RF 500-1000	100W
CH4	850-960MHz	GSM850/900	100W
CH5	1805-1920MHz	DCS1800	100W
CH6	2110-2170MHz	3G	100W
CH7	2300-2400Mhz	4G	100W
CH8	2500-2690Mhz	4G	100W
CH9	3400-3600MHz	5G	100W
CH10	3600-3800MHz	5G	100W
CH11	2400-2500 MHz	WIFI & Bluetooth	100W
CH12	5700-5800 MHz	WIFI 5.8G 25W	100W
CH13	1170-1230MHz	GPSL2.L5	100W
CH14	1560-1625MHz	GPSL1	100W
Option	20-6000MHz	Option	Option
Total RF Power		1400Watt
Power supply		AC230V
Shielding area		100-1000m @ according to signal density of mobile network
Jammer Module Number		14
Cooling System		Systematic Smart Cooling System
System Protection		VSWR, Over-voltage, Over-current
Jamming Source		PLL Source Technology
Remote Control (Option)		Full System Operation Control
Antenna Type		High Gain Omnidirectional Antennas
Number of Antennas		4 pcs (Dual band is 2pcs, Three band is 2 pcs)
Power consumption:		5400W
Power Supply Source (Option)		Additional AC Alternator ( 5400W) or Additional DC Generator ( +24 VDC/220A )
Weight:		48.00Kg
Size (length × wind × high):		550×500×350mm
Humidity:		30%-95%
Running Temperature:		-20 to +60 Celsius Degree

Applicable Area:

High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.

It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.

FAQ:

1,Does jammer interfere the other electronic equipment to work in normal condition?
* No. Because the electromagnetic signal sent by jammer are totally used in the band that regulated by government and just have interception effect to cell phone communication.
2,The shell of jammer will become hot after working for some times. Does the long working time will damage the machine itself?
* It is very normal. When designing, we are thinking of taking use of the conductivity of metal shell to help the heat sinking during our designation. By this way, the machine can be kept in good working condition for long time.

3. Why choose us?

* Passionate, experienced and highly-educated R & D and sales team;

* Reasonable price and reliable products, skillful and careful assembly;

* Strict quality assurance and quick aftersales service;

* Lifetime technical support, can come with customized setting.

Terms and conditions:

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	50% advance, 50% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.

1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM 0

1400W 14bands DDS Multi-Band Cover 20-6000Mhz Vehicle IED Bomb Jammer- WT802814DM 1

GPSL2.L5.
