| Place of Origin: | China |
| Brand Name: | Wolves Team |
| Certification: | CE,ISO |
| Model Number: | WT805712 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Battery Operate Time: | 2-3 Hours | Jamming Frequency: | 20-6000Mhz 2G 3G 4G 5G WIFI VHF UHF |
|---|---|---|---|
| Packing: | Box | Material: | Aluminum Alloy |
| Use For: | Police Use For VIP Protection | Monitor Software Function: | Remote Control Switches Of Each Machine. |
| Size: | 580×580×680mm | Jamming Range: | Up To 300 Meters |
| Highlight: | VIP protection signal jammer,vehicle signal jammer with battery,300 meter range signal jammer |
||

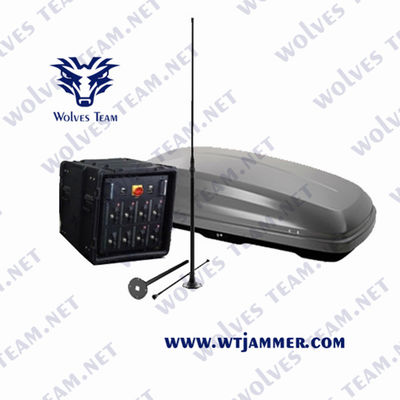

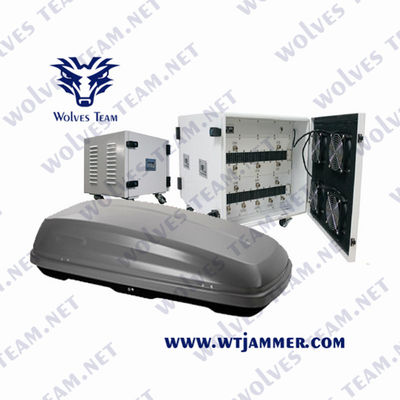

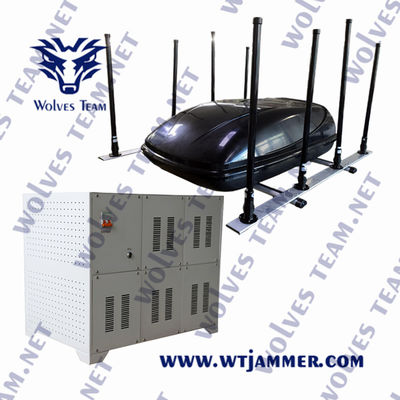

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system. It is designed for protecting military and country leaders VIP team, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb and some occasions for temporary protection to respond to some emergencies.
Also, this Bomb jammer can cover, continuously and simultaneously, all the RF communication frequencies can be customized for 20-6000MHz. It will be the best solution to defend a VIP convoy and features rapid deployment and setup for military bases, important sports events, international summits, and other high-profile events.

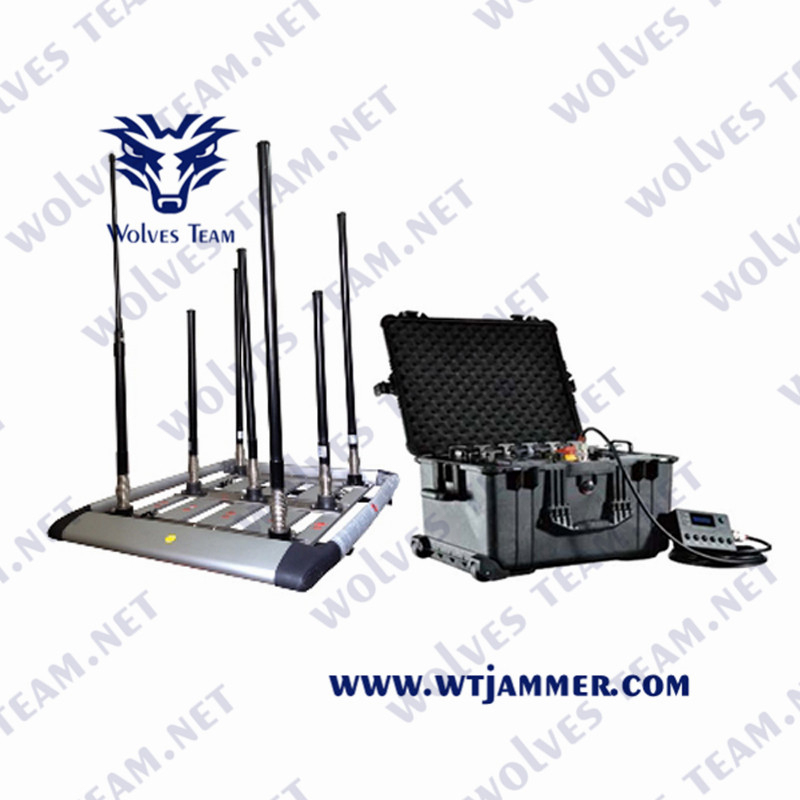

The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, and designed with a ruggedized trolley-type case for high mobility. This device is configured with more than 12 different jamming modules, and the jamming frequencies can be more than 12 Bands. This High Power Jammer 12 bands jamming frequency modules can provide up to 1200 Watt output power maximum. The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.
Aluminum-alloy casing with high protection provides strong resistance to dust, water, and corrosion.
Heat sink design, combined with fans, keeps the system cool.
Special technology is employed to prevent interference between frequency bands.
The device only interferes with the downlink frequency of mobile systems, without disrupting the normal operation of Base Stations.
Users can choose frequency bands and output power levels.
Each frequency band can be controlled individually with RF ON/OFF switches.
Individual power adjustment for each frequency band is possible.
Circuit protection ensures the system will not be damaged in the event of antenna short circuiting or disconnection.
Antenna options include directional and Omni-directional antennas.
The system is easy to operate and install.
It can be kept for module upgrades.
Designed to work continuously 24 hours a day, 365 days a year.
|
Output Interface |
RF Frequency Band(MHz) |
Application | RF Output Power (Watt) |
| CH1 | 20-80 | Toys HM Remote control | 50W |
| CH2 | 135-175 | Walky-talky VHF/Lojack | 50W |
| CH3 | 400-480 | Walky-talky (UHF400) | 50W |
| CH4 | 790-826MHz | 4G/GSM850 | 50W |
| CH5 | 925-960MHz | GSM900 | 50W |
| CH6 | 1800-1880MHz | DCS | 50W |
| CH7 | 2100-2170MHz | 3G | 50W |
| CH8 | 2570-2690MHz | 4G WIMAX | 50W |
| CH9 | 3400-3600MHz | 5G | 50W |
| CH10 | 2400-2500 | WIFI & Bluetooth | 50W |
| CH11 | 5700-5800 MHz | WIFI 5.8G | 50W |
| CH12 | 1560-1625MHz | GPSL1 | 50W |
| Option | 20-6000MHz | Option | Option |
| Total RF Power | 600Watt | ||
| Power supply | Input AC230V | ||
| Shielding area | 100-300m @ according to signal density of mobile network | ||
| Jammer Module Number | 12 | ||
| Cooling System | Systematic Smart Cooling System | ||
| System Protection | VSWR, Over-voltage, Over-current | ||
| Jamming Source | PLL Source Technology | ||
| Remote Control (Option) | Full System Operation Control | ||
| Antenna Type | High Gain Omnidirectional Antennas | ||
| Number of Antennas | 12 | ||
| Power consumption: | 600W | ||
| Power Supply Source (Option) |
Additional AC Alternator ( 600W) or |
||
| Weight: | 35.00Kg | ||
| Size (length × wind × high): | 580×580×680mm | ||
| Humidity: | 30%-95% | ||
| Running Temperature: | -20 to +60 Celsius Degree | ||
High quality jammers are extensively utilized in various sectors including Military Units, Prisons, Police, Bomb Disposal, and Security Services. They serve a crucial role in maintaining safety and security in these environments.
These devices are not limited to specific sectors and can also be applied in a diverse range of settings such as government institutions, Gas Stations, Guard posts, Schools, Churches, Meeting Rooms under invigilation, Libraries, Hospitals, Theaters, Classrooms, and other critical locations and scenarios.
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 50% advance, 50% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
![]()
![]()
