Name: High Power Portable Cellular Mobile Phone Signal Jammer 2G 3G 4G 5G 6G Signal jammer
Brand: Wolves Team Limited
SKU: JM166709-10GP
Price: 1,689.00 USD
Availability: InStock

Home Products Signal Jammer

High Power Portable Cellular Mobile Phone Signal Jammer 2G 3G 4G 5G 6G Signal jammer

Product Details:

Place of Origin:	China
Brand Name:	wolvesteam
Certification:	CE
Model Number:	JM166709-10GP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiated price
Packaging Details:	Box 47 x 11 x 36 cm (Lx W x H)
Delivery Time:	20 days
Payment Terms:	L/C, T/T
Supply Ability:	100pieces/montgh

Contact Now

Detailed Product Description

Output Power:	100W/each Band	Jamming Range:	Up To 1000 Meters Distance
Battery Operation Time:	1-2 Hours	Power Adaptor Input Voltage:	AC220V / DC 28V 190A
Feature:	Special Design With Inner Aluminum Housing	Advantage:	Good Design For Heating Ventilation
Dimension::	625×500×700mm	Antenna Type:	High Gain Omnidirectional Antennas
Frequency:	GSM 2G 3G 4G 5G GPSL1-L5	Jamming Source:	Digital Signal Source Technology
System Protection:	VSWR, Over-voltage, Over-current
Highlight:	portable cellular signal jammer , 5G mobile phone jammer , high power signal blocker

High Power Portable Cellular Mobile Phone Signal Jammer 2G 3G 4G 5G 6G Signal Jammer

IP65 Outdoor Pelicen GSM UHF VHF RF315/433/868/319MHz Mobile Signal Jammer

Product Attributes

Attribute	Value
Output power	100W/each band
Jamming Range	Up to 1000 meters distance
Battery operation time	1-2 hours
Power adaptor Input Voltage	AC220V / DC 28V 190A
Feature	Special design with inner aluminum housing
Advantage	Good design for heating ventilation
Dimension	625×500×700mm
Antenna Type	High Gain Omnidirectional Antennas
Frequency	5G VHF UHF RF315/433/868/319MHz
Jamming Source	Digital Signal Source Technology
System Protection	VSWR, Over-voltage, Over-current

Product Description

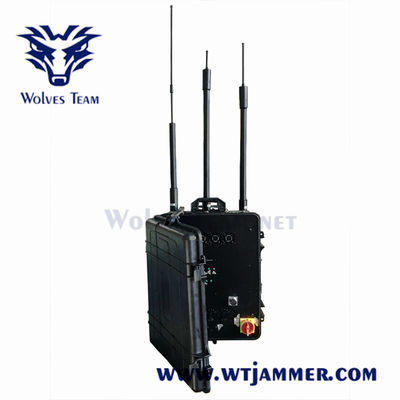

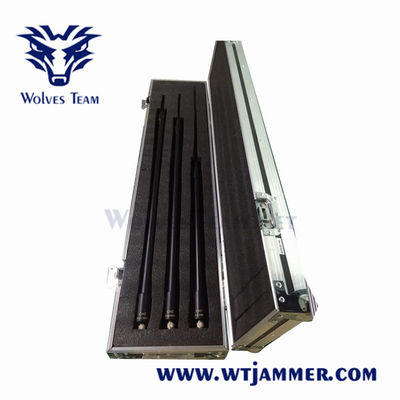

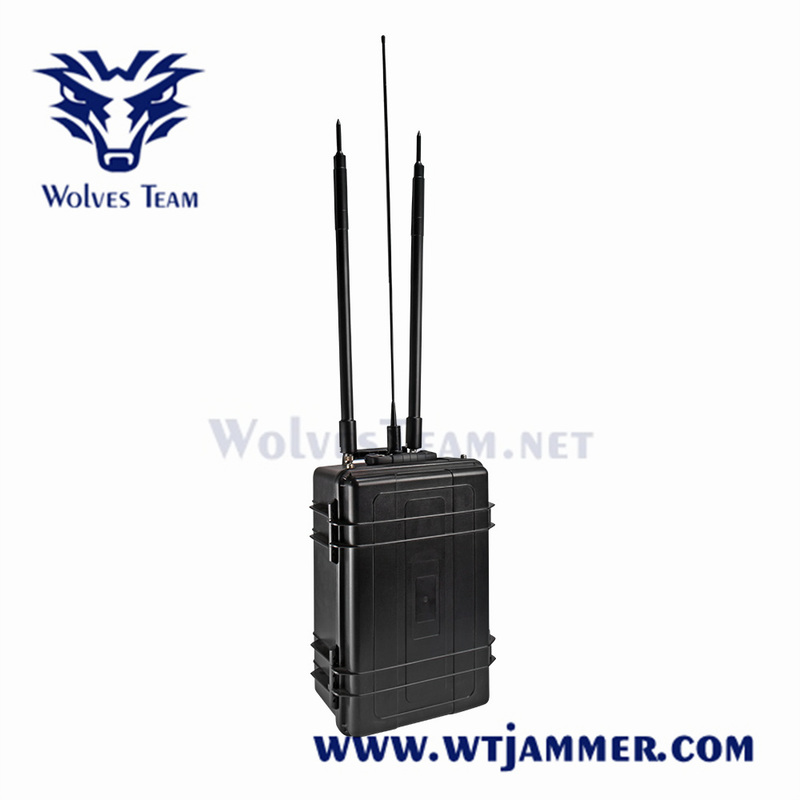

This Portable Powerful Outdoor Waterproof Mobile Phone Signal Jammer All GPSL1-L5 Jammer system is designed to effectively jam RCIED threats or RF communications. The system is delivered in a flight case trolley configuration complete with antennas, external battery pack, power supply, and remote control.

Mobile Phone Jammer GPSL1-L5 Jammer Specifications

4G LTE1: 725-770MHz
4G LTE1: LTE2: 790-826MHz
CDMA 800: 850-894MHz
GSM 900: 925-960MHz
DCS1800: 1805-1880MHz
PCS 1900: 1905-1990MHz
3G: 2110-2170MHz
4G WIMAX1: 2300-2400MHz
4G WIMAX2: 2570-2690MHz
5G1: 3400-3600MHz
5G2: 3600-3800MHz
WIFI 2.4G: 2400-2500MHz
GPSL1: 1520-1650MHz
GPSL2: 1220-1230MHz
GPSL3: 1376-1386MHz
GPSL4: 1835-1845MHz
GPSL5: 1170-1180MHz

Total output power: 1000W
Jamming range: 300-1000 meters
Power supply: 50 to 60Hz, 100 to 240V AC
Dimension: 820x540x360mm (not including antennas)
Full set weight: 35kg
Built-in battery: DC-48V 15AH/Support 60min Full power working
Humidity: 30%-95%
Running Temperature: -20 to +55 Celsius Degree

Main Function

High-power portable multi-band jammer
Fully modular compact design with extremely high efficient cooling system provides system stability even in extreme climate conditions
Modular design facilitates easy maintenance, repairs and upgrades
Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands
Equipped with a wired remote control unit to ON/OFF each module
Supplied by AC mains or DC power source
Active smart cooling system in a continuous working cycle
Customizable for client-specific scenarios for military and civil applications
Upgraded jamming signal source (DDS technology) available as option
Field programmability for rapid adjustment to frequency and output power (option)
Remote control can adjust each module working frequency and output power (option)

Advantages and Features

Aluminum-alloy casing with high resistance to dust, water and corrosion
Heat sink design combined with fans for optimal cooling
Special technology to prevent interference between frequency bands
Only interferes with downlink frequency of mobile system without disturbing base stations
Selectable frequency bands and output power
Independent RF ON/OFF switches for each frequency band
Adjustable power for each frequency band
Circuit protection against antenna short circuiting or disconnection
Antenna type options: directional or omnidirectional
Easy operation and installation
Designed for future module upgrades
Capable of continuous 24/7 operation

Wired Remote Control Panel (Option)

Remote control panel can be installed in driver's console for convenient operation
Turn on/off each module separately while driving
Turn off specific frequency bands to maintain internal communication in emergencies
Remote control switches for each machine
Remote viewing of each machine's working state
Remote adjustment of power output for each machine
Remote viewing of offline log for each machine
