Name: VIP Protection Upgrade Module Installation with Vehicle Signal Jammer 20-6000Mhz
Brand: Wolves Team Limited
SKU: WT805712
Price: 1,689.00 USD
Availability: InStock

Home Products Vehicle Signal Jammer

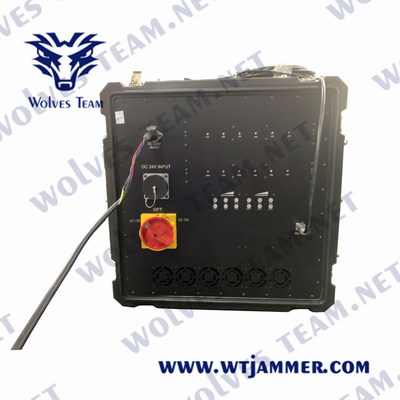

VIP Protection Upgrade Module Installation with Vehicle Signal Jammer 20-6000Mhz

Product Details:

Place of Origin:	China
Brand Name:	Wolves Team
Certification:	CE,ISO
Model Number:	WT805712

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Box
Delivery Time:	3-4 weeks
Payment Terms:	L/C, D/P, T/T, Western Union

Contact Now

Detailed Product Description

Monitor Software Function:	Remote Control Switches Of Each Machine.	Battery Operate Time:	2-3 Hours
Jamming Range:	Up To 300 Meters	Material:	Aluminum Alloy
Advantage:	Keep For Upgrade Module Installation	Use For:	Police Use For VIP Protection
Packing:	Box	Size:	580×580×680mm
Highlight:	VIP protection vehicle signal jammer , 20-6000Mhz vehicle signal jammer , vehicle signal jammer installation module

VIP Protection Upgrade Module Installation with Vehicle Signal Jammer 20-6000Mhz

Product Description

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

It is designed to protect military and country leaders VIP team, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.

This Bomb jammer can cover, continuously and simultaneously, all the RF communication Frequencies can custom for 20-6000MHz. It will be the best solution to defend a VIP convoy for and features rapid deployment and set up for military bases, important sports events, international summits, and other high profile events.

The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, and designed with a ruggedized trolley type case for high mobility. This device is configured more than 12 different jamming modules, and the jamming frequency can be more than 12 Bands. This High power Jammer 12 bands jamming frequency modules can provide up to 1200 Watt output power maximum.

The Bomb jammer is very easily installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.

Features

Aluminum-alloy casing with high protection offers excellent resistance to dust, water, and corrosion.
Heat sink design, combined with fans, ensures the system remains in a cooling state.
Utilizes special technology to prevent interference between each frequency band.
Only interferes with the downlink frequency of the mobile system, without disrupting the normal operation of Base Stations.
Frequency bands and output power are selectable for flexibility.
Each frequency band is controlled by independent RF ON/OFF switches.
Power for each frequency band can be adjusted independently.
Circuit protection ensures the system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options include directional or omni-directional antennas.
Easy operation and installation for user convenience.
Supports upgrade module installation, allowing for future enhancements.
Designed to work 24 hours a day, 365 days a year continuously.

Technical Parameters

Output Interface	RF Frequency Band(MHz)	Application	RF Output Power (Watt)
CH1	20-80	Toys HM Remote control	50W
CH2	135-175	Walky-talky VHF/Lojack	50W
CH3	400-480	Walky-talky (UHF400)	50W
CH4	790-826MHz	4G/GSM850	50W
CH5	925-960MHz	GSM900	50W
CH6	1800-1880MHz	DCS	50W
CH7	2100-2170MHz	3G	50W
CH8	2570-2690MHz	4G WIMAX	50W
CH9	3400-3600MHz	5G	50W
CH10	2400-2500	WIFI & Bluetooth	50W
CH11	5700-5800 MHz	WIFI 5.8G	50W
CH12	1560-1625MHz	GPSL1	50W
Option	20-6000MHz	Option	Option
Total RF Power			600Watt

Power supply: Input AC230V

Shielding area: 100-300m @ according to signal density of mobile network

Jammer Module Number: 12

Cooling System: Systematic Smart Cooling System

System Protection: VSWR, Over-voltage, Over-current

Jamming Source: PLL Source Technology

Remote Control (Option): Full System Operation Control

Antenna Type: High Gain Omnidirectional Antennas

Number of Antennas: 12

Power consumption: 600W

Power Supply Source (Option): Additional AC Alternator (600W) or Additional DC Generator (+24 VDC/25A)

Weight: 35.00Kg

Size (length × wind × high): 580×580×680mm

Humidity: 30%-95%

Running Temperature: -20 to +60 Celsius Degree

Applications

High-quality jammers have a wide range of applications in various fields including Military Units, Prisons, Police departments, Bomb Disposal units, and Security Services.

These devices are also utilized in government institutions, Gas Stations, Guard posts, Schools, Churches, Meeting rooms for invigilation purposes, Libraries, Hospitals, Theaters, Classrooms, and other critical locations and situations.

Question and Answer

1. Does jammer interfere the other electronic equipment to work in normal condition?

No. Because the electromagnetic signal sent by jammer are totally used in the band that regulated by government and just have interception effect to cell phone communication.

2. Is jammer harmful to the human body and cell phone?

Please do not need to worry about it. The intensity of electromagnetic signal sent by jammer is in compliance with the national standard of environmental electromagnetic wave health. The signal sent by jammer is relatively small and unharmful to human body according to the testing result. Meanwhile,this device just damages the receiving condition to the cell phone and makes the normal connection between cell phone and base station impossible. Therefore, no damage will occur on cell phone itself.

3. Is there any difference of distance between using jammer indoor and outdoor?

Yes. Generally speaking, outdoor signal is bigger than the indoor signal. Thereby, the shielding effect is worse outdoor. Strictly speaking, whether using indoor or outdoor, the effective distance of interference is related to the surrounding around, for example the distance between different base stations,positions of installation etc.

Terms and conditions

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	50% advance, 50% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
