| Place of Origin: | China |
| Brand Name: | Wolves Team |
| Certification: | CE,ISO |
| Model Number: | WT805712 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Box |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Monitor Software Function: | Remote Control Switches Of Each Machine. | Material: | Aluminum Alloy |
|---|---|---|---|
| Advantage: | Keep For Upgrade Module Installation | Jamming Range: | Up To 300 Meters |
| Jamming Frequency: | 20-6000Mhz 2G 3G 4G 5G WIFI VHF UHF | Size: | 580×580×680mm |
| Packing: | Box | Battery Operate Time: | 2-3 Hours |
| Highlight: | 5G vehicle signal jammer,300 meter range signal jammer,VHF UHF WiFi jammer |
||

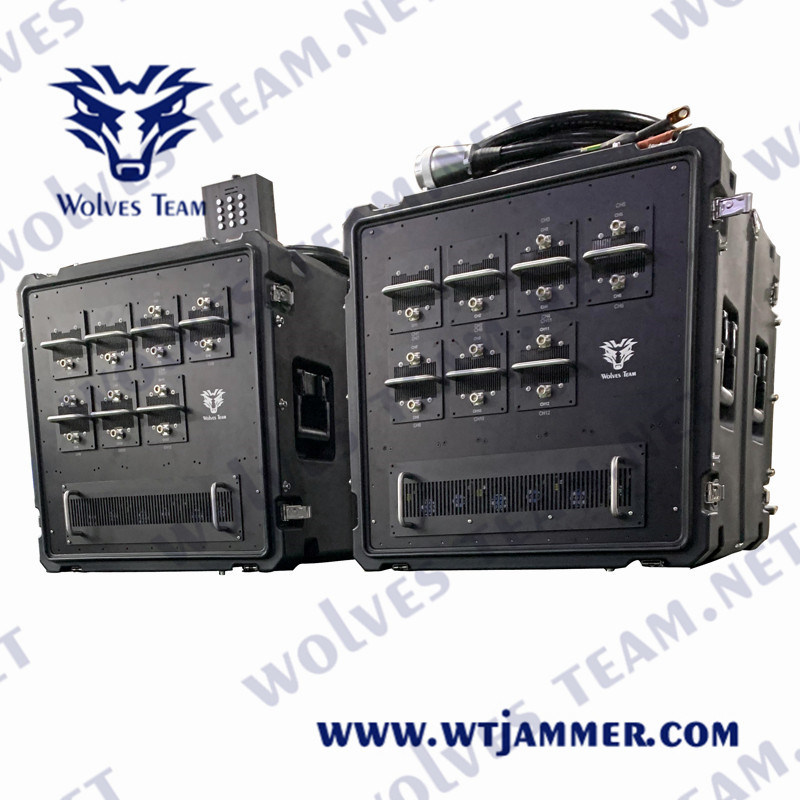

This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed to protect military and country leaders VIP teams, EOD, police investigation and arrest prisons, government buildings, wireless remote bomb and some occasions for temporary protection to respond to emergencies.
This Bomb jammer can cover, continuously and simultaneously, all the RF communication frequencies (customizable for 20-6000MHz). It provides the best solution to defend a VIP convoy and features rapid deployment for military bases, important sports events, international summits, and other high profile events.
The Bomb jammer is a fully portable multi-band PLL or DDS Jamming system, designed with a ruggedized trolley type case for high mobility. Configured with more than 12 different jamming modules, it can provide up to 1200 Watt output power maximum. The device is easily installed and operated, powered by AC mains or suitable DC power source, meeting military requirements and international quality standards.
| Output Interface | RF Frequency Band(MHz) | Application | RF Output Power (Watt) |
|---|---|---|---|
| CH1 | 20-80 | Toys HM Remote control | 50W |
| CH2 | 135-175 | Walky-talky VHF/Lojack | 50W |
| CH3 | 400-480 | Walky-talky (UHF400) | 50W |
| CH4 | 790-826MHz | 4G/GSM850 | 50W |
| CH5 | 925-960MHz | GSM900 | 50W |
| CH6 | 1800-1880MHz | DCS | 50W |
| CH7 | 2100-2170MHz | 3G | 50W |
| CH8 | 2570-2690MHz | 4G WIMAX | 50W |
| CH9 | 3400-3600MHz | 5G | 50W |
| CH10 | 2400-2500 | WIFI & Bluetooth | 50W |
| CH11 | 5700-5800 MHz | WIFI 5.8G | 50W |
| CH12 | 1560-1625MHz | GPSL1 | 50W |
| Option | 20-6000MHz | Option | Option |
| Total RF Power | 600Watt |
| Power supply | Input AC230V |
| Shielding area | 100-300m @ according to signal density of mobile network |
| Jammer Module Number | 12 |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage, Over-current |
| Jamming Source | PLL Source Technology |
| Remote Control (Option) | Full System Operation Control |

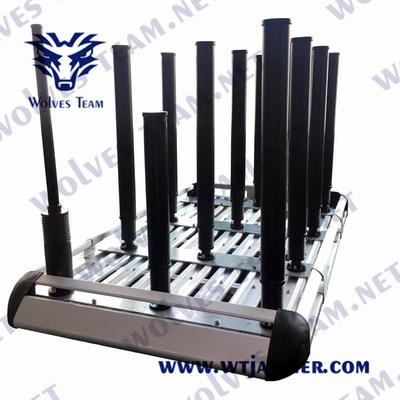

| Antenna Type | High Gain Omnidirectional Antennas |
| Number of Antennas | 12 |
| Power consumption | 600W |

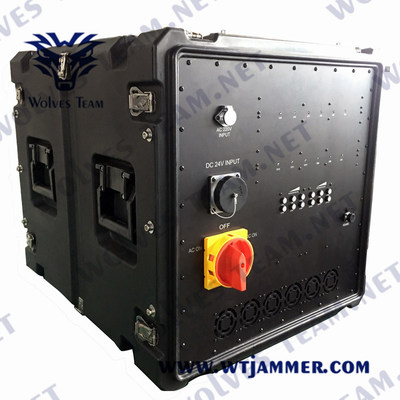

| Power Supply Source (Option) | Additional AC Alternator (600W) or Additional DC Generator (+24 VDC/25A) |
| Weight | 35.00Kg |
| Size (length × width × height) | 580×580×680mm |
| Humidity | 30%-95% |
| Running Temperature | -20 to +60 Celsius Degree |
High quality jammers are extensively utilized by various sectors including Military Units, Prison, Police, Bomb Disposal, and Security Services.
They find application in government buildings, Gas Stations, Guard posts, Schools, Churches, meeting rooms for invigilation, Libraries, Hospitals, Theaters, Classrooms, and other critical locations and situations.
No. The electromagnetic signal sent by jammer is used in the band regulated by government and only has interception effect on cell phone communication.
The intensity of electromagnetic signal sent by jammer complies with national standards. The signal is relatively small and unharmful to human body. The device only affects the receiving condition of cell phones, making normal connection between cell phone and base station impossible, without damaging the cell phone itself.
| Delivery Time Schedule | Delivery time is 3 weeks, initiated from date of receipt of confirmed purchase order and advance remittance. |
|---|---|
| Payment Terms | 50% advance, 50% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates for 36 months. |
| Extended Warranty | After 4th Year: 5% of total for each year. |
