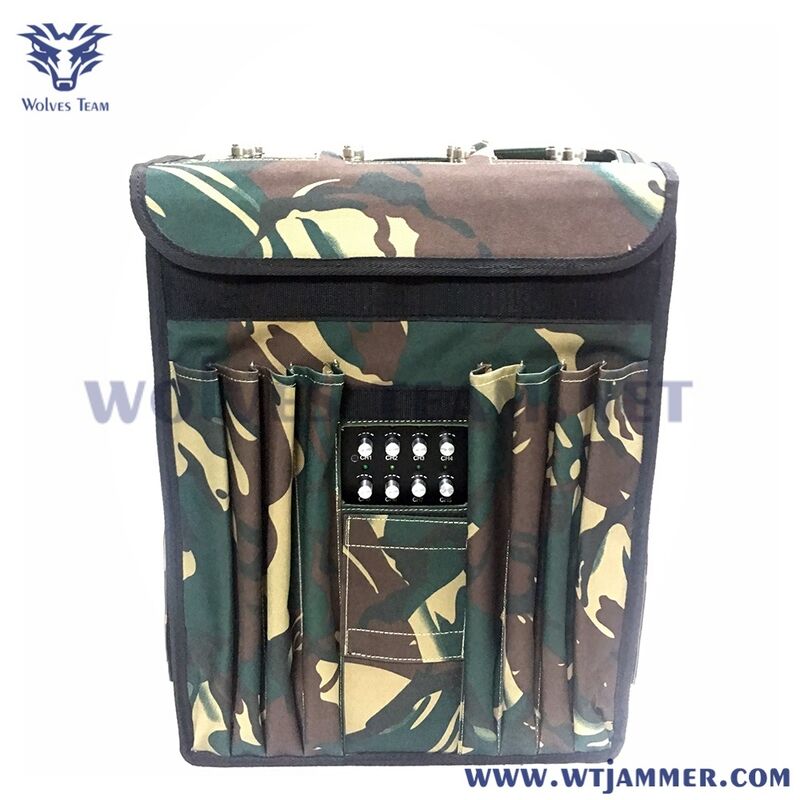

8 Antennas Backpack Jammer Built-In Battery For Outdoor Security Patrol

Frequency Range

20-6000MHz/700-2600MHz

Frequency:

CDMA/GSM/3G Cellphone

Jammer Type

BackPack Jammer

Channel Number

8

Each Bands Power

90W

Total Output Power

720W

Jamming Range

2-100m

Application

Militaries Units, Prison, Bomb Disposal

Output Interface

Output Frequency

CH1

-WIFI2.4G: 2400-2500MHz

CH2

-WIFI5.8G: 5725-5825MHz

CH3

-GS900:925-960MHz

CH4

-4G LTE: 758-826MHz

CH5

-GPS L2-L5:1100-1300MHz

CH6

-GSM : 850-920MHz

CH7

-4G Wimax: 2300-2400MHz

CH8

-4G Wimax: 2620-2690MHz

Jammed Signal Freqency:

CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF....

Type:

Backpack jammer

Output Channel:

8 output channels

Output power:

90 watt

Parameter Shielding Range:

Radius 5-200 meters (-75dBm,depending on the distance of base station in an open filed)

Jammer Module Number

8

HS Code:

8543709200

Packing:

Box

Dimension (not including antennae):

30 *45 *15cm

Antenna:

Omnil Antenna

Technical Parameters:

Net Weight

30 kg

Total Weight

35 kg Aviation Case included

Ambient Temperature

-10ºC - +50ºC

Relative Humidity

≤80%

Power Consumption

≤220W

Power Input

AC100~240V,DC24V

Battery

24V,30AH,Built-in standby battery
can used for 90~180 minutes

Antenna Parameters

Omni antennas,gain:4~5dBi

Switch Control

Manually

Equipment Chassis

Metallic Paint

Cooling system

Active "smart" with integrated incoming air filter

Antennae type:

External high gain Omni directional Antenna

CDMA 800:

851-894MHz

GSM 900:

925-960MHz

DCS 1800:

1800-1880MHz

PHS 1900:

1920-1990MHz

3G 2100(UMTS):

2110-2170MHz

WIFI 2.4G Bluetooth:

2400-2500MHz

WiFi3.6G:

3500-3600MHz

Wi-Fi5.2G:

5100-5500MHz

WIFI 5.8G

5725-5850MHz

4G/LTE 700M:

725-770MHz(US)

4G/LTE 800M:

790-826MHz(EU)

4G Wimax:

2300-2400MHz(US)

4G Wimax:

2620-2690MHz(EU)

GPS/L1:

1500-1600MHz

GPS/L2:

1200-1300MHz

GPS/L3:

1300-1400MHz

GPS/L4:

1100-1200MHz

VHF:

135-174MHz

UHF:

400-470MHz

Lojack:

167-175MHz

RF315:

315MHz

RF433:

433MHz

RF868:

868MHz

Delivery Time Schedule

Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.

Payment Terms

40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc.

Terms of Delivery

FOB HONGKONG/ USA.

Warranty

36 months.

Software Updates

Free software updates will be provided for a period of 36 months.

Extended Warranty

After 4th Year :5% of total for each years.
