Long-Range Directional Beam Anti-Drone Jammer - Industrial-Grade Targeted Airspace Control

Brand Name:	Wolves Teams
Model Number:	WT808JC100-6
MOQ:	1
Price:	360
Delivery Time:	15days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,CC

Type:

Gps Tracker,Frequency Control,UAV Jammer

Warranty:

36 Months,2 Years,12 Months,3 Years,1 Years

Use:

Automotive,Hand Held

Function:

GPS Tracking,Fuel/temperature Monitoring,SOS Panic Button,Anti Jamming,gps Tracker Kids

Product Name:

GPS Tracker Jammer,motion Sensor Brouilleur De Jammer Gsm Signal Gprs Gps Car Track,Sim Card Google Tracking IStartek Jammer Signal Gps Tracker VT600,RF Signal Detector,jammer Signal Blocker Tk06i Tk228i Car Obd Ii Gps Tracker

Usage:

Jammer,Personal,Auto,home Security

Backup Battery:

500mAh,lithium Battery,DC7.4V/850MA

Size:

85mmx 37mmx 23mm,320*200*460mm,150mm*100mm*16mm,65mm X 61mm X 26mm

Gsm Band:

Quad Band,GSM/UMTS,850/ 900/ 1800/ 1900MHz

Color:

Black,White

Operating Temperature:

-20° To 65° C

Weight:

70g,90g,17kg

Gps Chip:

Latest GPS SIRF-Star IV Chipset

Gsm Module:

Quectel M35,Quectel UC15

Power Supply:

12V 1A,11V-36V/1.5A,AC-220V/DC-48V

Flash Memory:

4M,4MB

Position Accuracy:

10 Meters,2D RMS

Tracking Mode:

GMS GPRS

Gps Sensitivity:

-163Db

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

long-range anti-drone jammer

directional beam signal jammer

industrial-grade airspace control jammer

Product Description

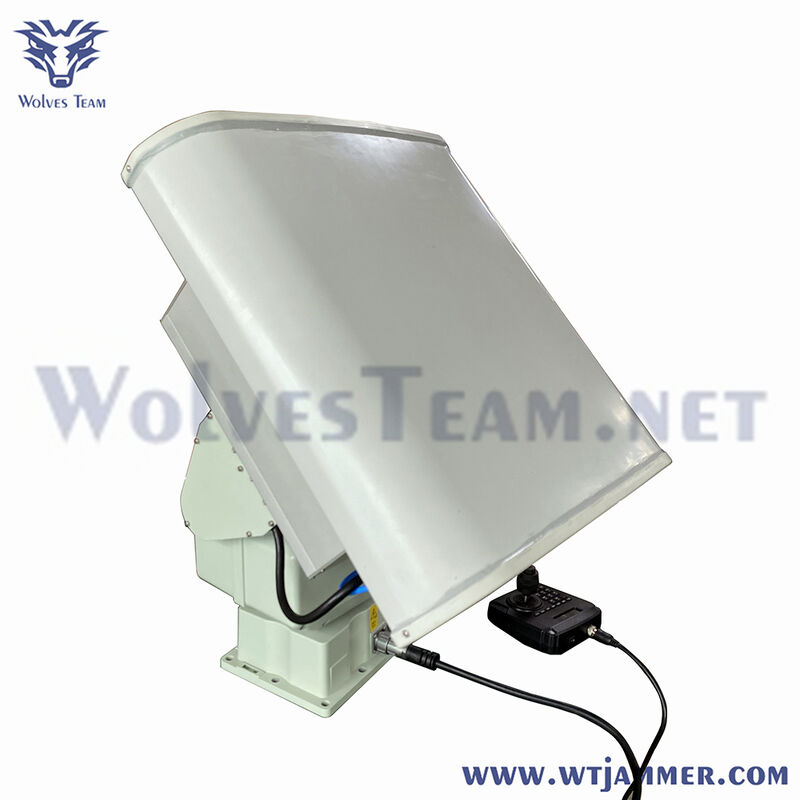

Long-Range Directional Beam Anti-Drone Jammer

Industrial-grade targeted airspace control system designed for militaries units, prisons, and bomb disposal operations.

Key Features: Handheld Anti-Drone Jammer • 2.4G/5.8G Frequency Jamming • 1000 Meter Effective Range

Product Overview

Portable drone jammer designed to disable targeted drones by disrupting remote-control and GPS signals, forcing drones to land or return to their origin. Effectively interferes with UAV remote-control signals at 2400MHz, GPS signals at 1500MHz, and image transmission signals at 5800MHz.

Technical Characteristics

Separate battery design for easy replacement and maintenance
User-friendly operation requiring no specialized electronic training
Integrated gun design with powerful jamming effectiveness
Built-in high-gain directional antennas for precise range control
High-strength injection molded housing - dustproof, waterproof, anti-corrosion
Comprehensive protection: over-voltage, over-current, and heat protection
Safe operation with no harm to human body
Meets militaries requirements and specifications
Integrated main equipment and battery system
Individual band switching capability

Technical Specifications

Output Interface	Shield Band Frequency (MHz)
CH1	2.4G: 2400-2500MHz
CH2	GPS L1: 1560-1620MHz
CH3	5.8G: 5725-5850MHz
Power Supply	AC110~220V/DC-48V (optional)
Total RF Power	15W
Built-in Battery	DC-24V 8AH (supports 120min full power operation)
Shielding Area	800-1200 meters
Power Consumption	80W
Weight	6.0Kg
Dimensions	960×400×230 mm
Humidity Range	30%-95%
Operating Temperature	-10°C to +55°C
Packaging	Box (960×750×140 mm)

Applications

Airports, scientific research centers, detention facilities, interrogation rooms, courthouses, labor camps, militaries compounds, government facilities, homeland security, correctional centers, petrochemical industry, sports venues, theaters, VIP convoy protection, bomb prevention/disposal, educational institutions, and power generating plants.

Quality Assurance

Strict quality control with industry-leading product accreditation. Over 10 years of experience in electronic equipment design and manufacturing. OEM and ODM services available.

Terms & Conditions

Delivery Time	3-5 days from receipt of confirmed purchase order and advance payment
Payment Terms	50% advance, 50% before shipping
Delivery Terms	FOB Hong Kong/USA
Warranty	36 months
Software Updates	Free updates provided for 36 months
Extended Warranty	5% of total cost per year after 4th year
