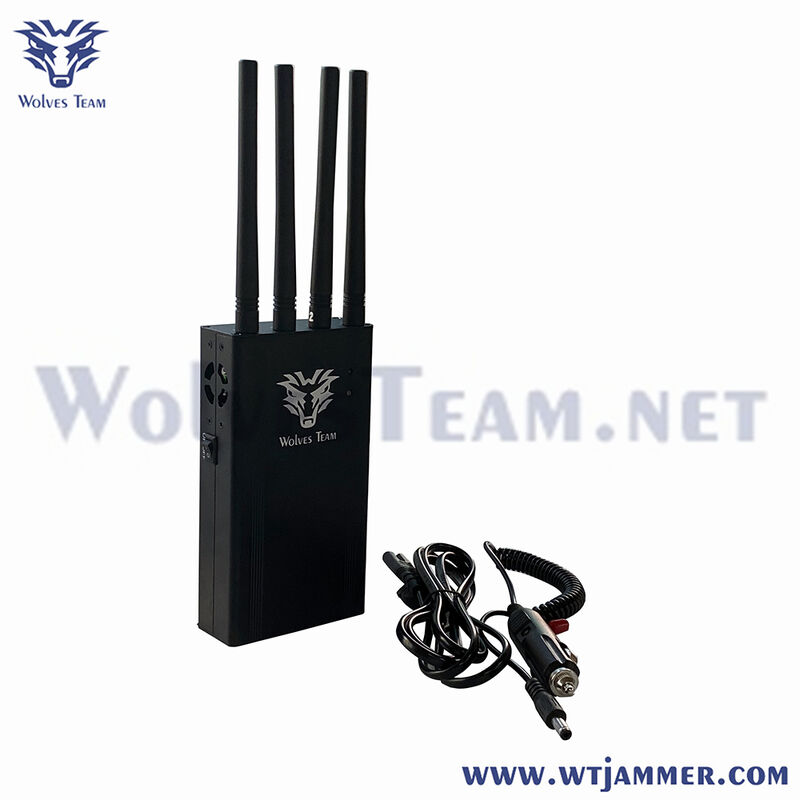

4-Channel Handheld GSM/3G/4G/WiFi Signal Jammer Device

4-Channel Handheld GSM/3G/4G/WiFi Signal Jammer Device

Brand Name:	Wolves Team
Model Number:	WT101R-4-2
MOQ:	1
Price:	1
Delivery Time:	7-15
Payment Terms:	L/C,D/P,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS/FCC/ISO 9000/CE

Product Type:

Handheld Signal Jammer

Number Of Channels:

18 Channels

Jamming Frequency Bands:

GSM/2G/3G/4G/5G, WiFi 2.4G/5G/6E, GPS L1/L2/L5, Bluetooth

Operating Frequency Range:

800-960MHz, 1710-2700MHz

Battery Type:

Built-in Rechargeable Lithium-ion Battery

Continuous Working Time:

1-2 Hours

Input Voltage:

AC 100-240V 50/60Hz / DC 12V

Operating Temperature:

-10℃ ~ +55℃

Storage Temperature:

-20℃ ~ +70℃

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

4-channel handheld signal jammer

GSM 3G 4G WiFi jammer device

portable multi-network signal blocker

Product Description

4-Channel Handheld GSM/3G/4G/WiFi Signal Jammer Device

Product Overview

This advanced 18-band handheld portable signal jammer features an innovative 18-antenna design with dual-band channels to eliminate interference. It effectively blocks 5G, 4G, 3G, 2G cellular signals along with LOJACK, GPS, and Wi-Fi RF bands. With 18W output power, it provides a jamming range of 2-25 meters (depending on local signal strength at -75dBm).

Key Features

Unique 18-band handheld portable design with 18 antennas
Dual-band channels eliminate mutual interference
18W power output with 2-25 meter jamming range
Built-in 12000mAh battery provides 2 hours of operation
Advanced cooling system with 3 built-in fans and large heat sink
DIP switch control for independent band activation
Compact portable size: 210x130x46mm
1-year manufacturer warranty

Application Areas

Meeting rooms, classrooms, training centers, churches, temples
Banks, museums, galleries, theaters, concert halls
Factories, hospitals, medical facilities
Cars, trucks, buses, vans and other vehicles
Any public or private area requiring signal security

Technical Specifications

Jamming Range	2-25 meters (depending on signal strength in area)
Product Size	190x126x46mm
Output Power	18 Watt
Power Supply	AC100-240V to DC12V input, Built-in 12000mAh battery
Cooling System	3 cooling fans
Working Time	2 hours
Package Size	31x27x8cm
Set Weight	2.5kg
Carton Size	67x54x46cm (20 pieces)
Carton Weight	45kg
Delivery Time	1-3 days
Warranty	1 year

Channel Configuration - Version 1

Channel	Signal System	Frequency	Power
1	CDMA/868/GSM&LORA	851-894 /900-960MHz	1W
2	PCS1900	1930-2000MHz	1W
3	3G	2110-2180MHz	1W
4	4GLTE Low	698-798MHz	1W
5	4GLTE High	2500-2690MHz	1W
6	4G2300	2300-2400MHz	1W
7	UHF&CDMA450/4G1700/LORA	400-470/1710-1780/900-930MHz	1W
8	5G600	617-698MHz	1W
9	5G3500	3400-3600MHz	1W
10	5G3700	3600-3800MHz	1W
11	WIFI2.4G	2400-2500MHz	1W
12	WIFI5.2G	5100-5500MHz	1W
13	WIFI5.8G	5500-5900MHz	1W
14	GPS&Glonass L1	1560-1610MHz	1W
15	GPSL2L3L4L5	1170-1390MHz	1W
16	VHF&LOJACK	135-175MHz	1W
17	RC433	433MHz	1W
18	RC315	315MHz	1W

Channel Configuration - Version 2

Channel	Signal System	Frequency	Power
1	GSM	925-960MHz	1W
2	DCS1800	1805-1880MHz	1W
3	3G	2110-2170MHz	1W
4	4GLTE Low	738-821MHz	1W
5	4GLTE High	2570-2690MHz	1W
6	4G2300	2300-2400MHz	1W
7	UHF&CDMA450/4G1700/LORA	400-470/1710-1780/900-930MHz	1W
8	5G1400	1427-1518MHz	1W
9	5G3500	3400-3600MHz	1W
10	5G3700	3600-3800MHz	1W
11	WIFI2.4G	2400-2500MHz	1W
12	WIFI5.2G	5100-5500MHz	1W
13	WIFI5.8G	5500-5900MHz	1W
14	GPS&Glonass L1	1560-1610MHz	1W
15	GPSL2L3L4L5	1170-1390MHz	1W
16	VHF&LOJACK	135-175MHz	1W
17	RC433	433MHz	1W
18	RC315	315MHz	1W
