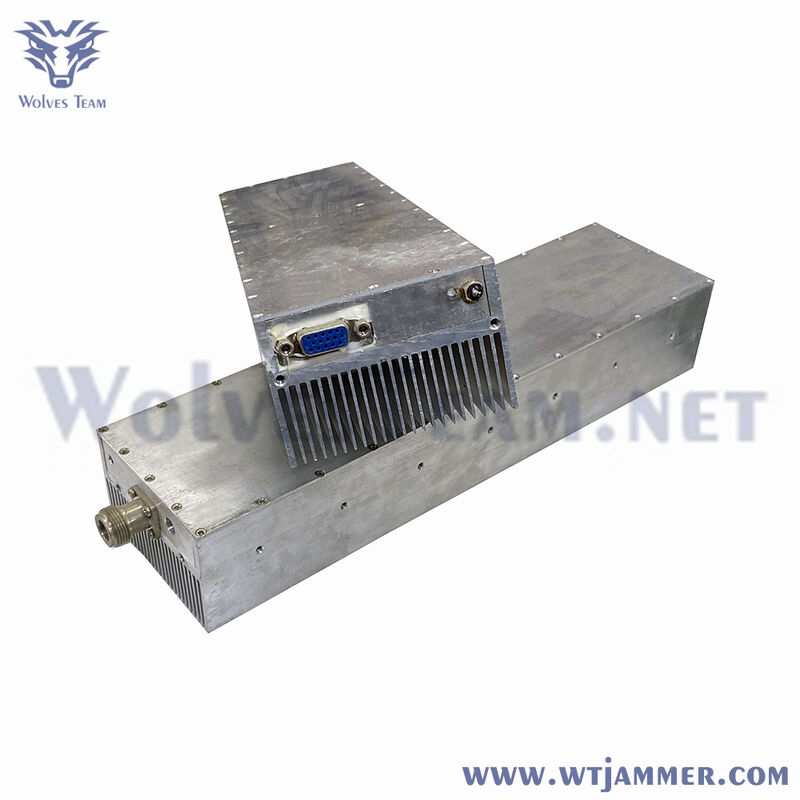

Aluminum Heat Dissipation RF Jammer Module for 4G LTE Signal Blocker

Brand Name:	Wolves Teams
Model Number:	WT-10W
MOQ:	1
Price:	360
Delivery Time:	15 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,CC

Channels:

Multi-channel Simultaneous Jamming

Modulationtype:

Wideband Noise

Antennas:

8 External Directional Panel Antennas

Operation Temperature:

-20 ...+50 Centigrade Degree

Shielding Radius:

10-40 Meters

Temperature Range:

-20 To +55°C

Product Type:

Desktop/Desktop/Wall Mounted

Jamming Source:

Digital Signal Source Technology

Storage Temperature:

-20℃ ~ +70℃

Jammingdistance:

Up To 100 Meters

Block Frequency:

FM 88-108MHz

Operating Voltage:

AC 110V-220V / DC 24V

Inner Box Dimension:

220×202×65mm

Running Temperature:

-10°C To +55°C

Jamming Radius:

50-150 Meters

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

Aluminum RF jammer module

4G LTE signal blocker

Heat dissipation signal jammer

Product Description

Aluminum Heat Dissipation RF Jammer Module for 4G LTE Signal Blocker

This high-power indoor cell phone signal jammer effectively blocks GSM, CDMA, 3G, 4G, 5G, and WiFi 2.4G signals within an 80-meter range. Designed for professional environments requiring signal control, it features advanced cooling systems and continuous operation capabilities.

Key Specifications

Output Power	30W / each band
Jamming Range	10-150 meters (signal intensity must < -80dB in location)
Covered Standards	AMPS, N-AMPS, NMT, TACS, GSM, CDMA, TDMA, IDEN, UMTS, 4G, 5G
Power Supply	Automatic switching 50/60 Hz AC 100-240V to DC 12V
Operating Temperature	-10°C to +60°C
Humidity	95% non-condensing
Antenna	Patch Antenna - Gain 5 dBi of each band
Device Dimensions	38.5cm (L) × 43cm (W) × 26.5cm (H)
Weight	1kg
Storage Temperature	-30°C to +70°C

Technical Features

Blocks CDMA, GSM, DCS, PCS, 3G, 4G, and 5G signals simultaneously
High-power 50W design with extended jamming range
Waterproof construction for durability
Advanced cooling system for 24/7 continuous operation
RF frequencies only block downlink band, never uplink
Easy and fast installation

Frequency Specifications

4G LTE1	725-770MHz
4G LTE2	790-826MHz
CDMA 800	850-894MHz
GSM 900	925-960MHz
DCS1800	1805-1880MHz
PCS 1900	1905-1990MHz
3G	2110-2170MHz
4G WIMAX1	2300-2400MHz
4G WIMAX2	2570-2690MHz
5G1	3400-3600MHz
5G2	3600-3800MHz
WIFI 2.4G	2400-2500MHz
