10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety

MOQ: 1
Price: 1
Delivery Time: 7-15
Payment Terms: L/C,D/A,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS/FCC/ISO 9000/CE
Product Name:
Vehicle Signal Jammer
Product Type:
Vehicle Mounted
Total Output Power:
25W - 3500W
Max Power Per Channel:
10W - 200W
Jamming Radius:
50 - 2000 Meters
Jamming Angle:
90°-360°
Response / Startup Time:
<3 Seconds
Power Supply Method:
DC 12V-28V / DC 24V
Operating Voltage:
12V-24V
Antenna Gain:
≥8 DBi
Operating Temperature:
-40℃ To +65℃
Ingress Protection:
IP65 - IP68
Packaging Details:
Carton Packaging
Supply Ability:
1
Highlight:

500W vehicle signal isolator

,

waterproof signal jammer for field safety

,

10 antennas vehicle signal blocker

Product Description
10 Antennas 500W Custom Waterproof Vehicle Signal Isolator
Professional-grade vehicle-mounted signal jammer designed for field safety applications with comprehensive frequency coverage and robust construction.
Key Features
  • High-power portable multi-band jammer with 10 antenna channels
  • Field programmability for rapid frequency and power adjustment
  • Modular construction for easy maintenance, repair, and upgrades
  • 330W total RF output power with individual band control
  • Equipped with wired remote control for individual module operation
  • External LED battery level display and backup battery input
  • Built-in intelligent modules for power outage alarm and automatic switching
  • Waterproof design suitable for vehicle installation
Technical Specifications
Parameter Specification
Frequency Range 20-6000MHz / 700-2600MHz
Jammer Type Vehicle Bomb Jammer
Channel Number 10
Total Output Power 330W
Jamming Range 15-100m (depending on local signal strength)
Power Supply AC 110-240V
Dimensions 640×540×550 mm
Weight 75 Kg
Working Temperature -20℃ to +55℃
Humidity 5%-95%
Frequency Band Details
Channel Frequency Range Application Output Power
CH1 20-108MHz Wireless, FM Radio 100W
CH2 135-174MHz Walkie-talkie (VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400-470MHz Walkie-talkie (UHF), Car alarm 100W
CH5 851-894MHz CDMA 100W
CH6 925-960MHz GSM 100W
CH7 1570-1580MHz GPS L1 50W
CH8 1805-1920MHz DCS, PCS 100W
CH9 2110-2170MHz WCDMA 50W
CH10 2400-2485MHz WiFi, Drone, Bluetooth 50W
RF Characteristics
Characteristic Description
Output Power 915 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 11
Control ON/OFF with Switch
Antenna External Omni-directional for 360° coverage
Operating Hours Unlimited
Applications
  • Examination rooms and testing centers
  • Prisons, detention centers, and correctional facilities
  • Gas stations, oil depots, and LPG stations
  • Mobile phone bomb prevention
  • Courts, interrogation rooms, and government facilities
  • Other prohibited areas requiring mobile phone signal control

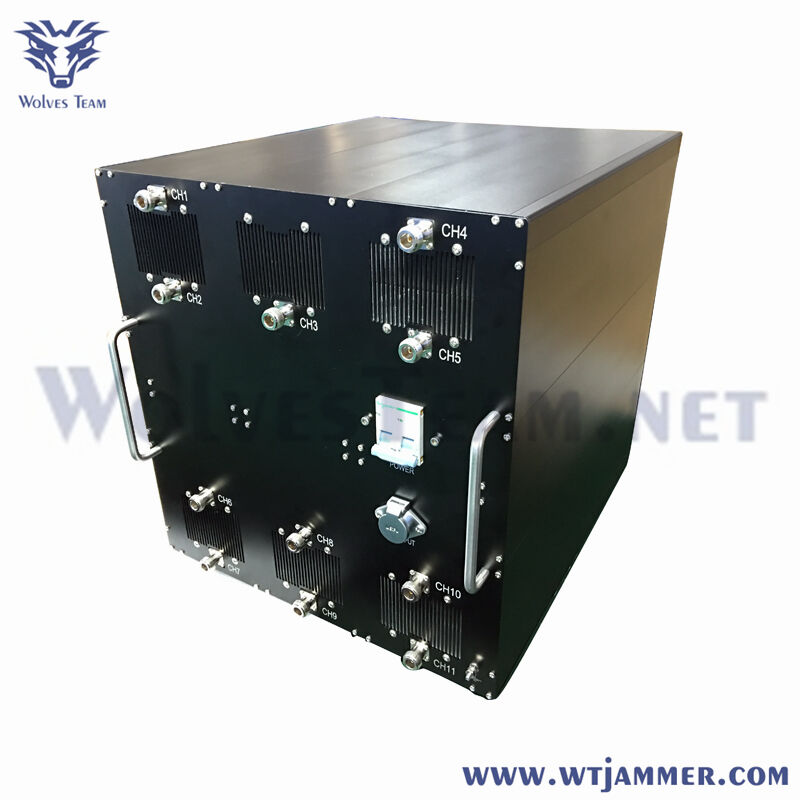

Product Images
10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 0 10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 1 10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 2 10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 3 10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 4 10 Antennas 500W Custom Waterproof Vehicle Signal Isolator for Field Safety 5
Terms & Conditions
Item Details
Delivery Time 3 weeks from confirmed purchase order and advance payment
Payment Terms 40% advance, 40% after one month, 20% before shipping
Delivery Terms FOB HONGKONG/USA
Warranty 36 months
Software Updates Free updates for 36 months
Extended Warranty 5% of total cost per year after 4th year
