20-6000MHz Full Frequency Vehicle Mounted Signal Jammer for VVIP Protection

20-6000MHz Full Frequency Vehicle Mounted Signal Jammer for VVIP Protection

MOQ:	1
Price:	1
Delivery Time:	7-15
Payment Terms:	L/C,D/A,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS/FCC/ISO 9000/CE

Product Name:

Vehicle Signal Jammer

Product Type:

Vehicle Mounted

Total Output Power:

25W - 3500W

Max Power Per Channel:

10W - 200W

Jamming Radius:

50 - 2000 Meters

Jamming Angle:

90°-360°

Response / Startup Time:

<3 Seconds

Power Supply Method:

DC 12V-28V / DC 24V

Operating Voltage:

12V-24V

Antenna Gain:

≥8 DBi

Operating Temperature:

-40℃ To +65℃

Ingress Protection:

IP65 - IP68

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

full frequency vehicle signal jammer

VVIP protection signal jammer

20-6000MHz vehicle mounted jammer

Product Description

20-6000MHz Full Frequency Vehicle Mounted Signal Jammer for VVIP Protection

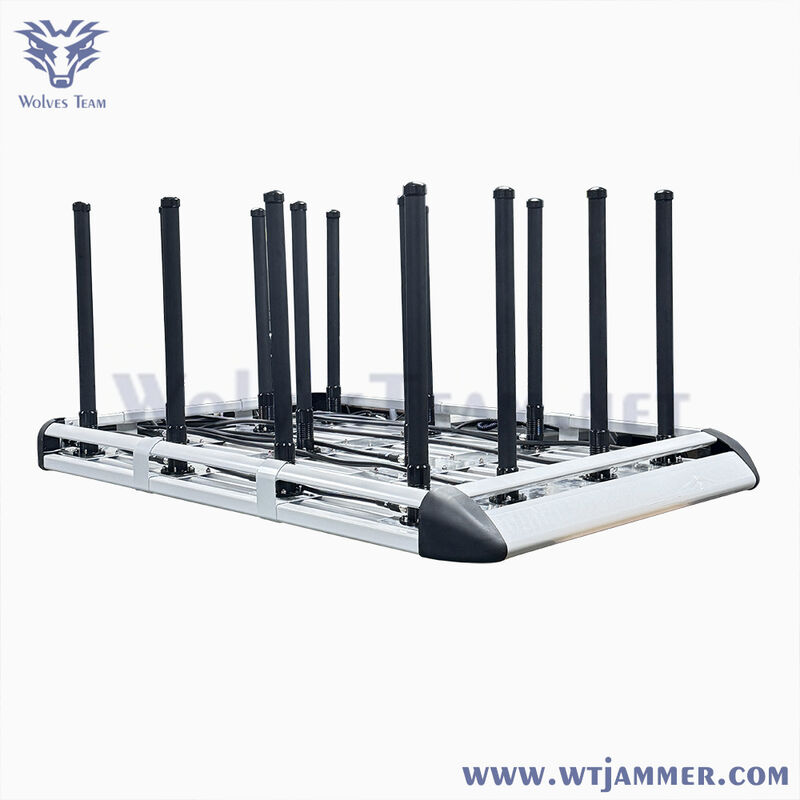

This high-power full-band vehicle convoy protection roof-mounted jammer system is designed for protecting country leaders, VVIP teams, EOD units, investigation teams, and government buildings against wireless remote bombs and other security threats during emergencies.

Key Features

Ultra-broadband frequency coverage: 20-6000MHz
All frequency bands jammed continuously and simultaneously
Shockproof case design for easy mobility
Internationally government approved
Optional integrated back-up battery system
Smart active cooling system
Remote control unit for system management
Individual on/off switches for each frequency band
Special RF protection shielding for passenger safety
Proven deployment at Olympic Events and Universiade

Technical Specifications

Parameter	Specification
Frequency Range	20-6000MHz/700-2600MHz
Jammer Type	Vehicle Bomb Jammer
Channel Number	11
Each Band Power	50W
Total Output Power	550W
Jamming Range	15-100m
Power Supply	AC110-240V
Dimension	640×540×550 mm
Weight	75 Kg
Working Temperature	-20℃ to +55℃

Frequency Band Configuration

Channel	Frequency Range	Application	Output Power
CH1	20-108MHz	Wireless, FM Radio	100W
CH2	135-174MHz	Walkie-talkie (VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400-470MHz	Walkie-talkie (UHF), Car alarm	100W
CH5	851-894MHz	CDMA	100W
CH6	925-960MHz	GSM	100W
CH7	1570-1580MHz	GPS L1	50W
CH8	1805-1920MHz	DCS, PCS	100W
CH9	2110-2170MHz	WCDMA	50W
CH10	2400-2485MHz	WIFI, Drone, Bluetooth	50W
CH11	5725-5850MHz	WIFI, Drone	15W

Applications

Examination rooms, prisons, gas stations, oil depots, LPG stations
Detention centers, interrogation rooms, courts, conference rooms
Movie theaters, churches, libraries, school dormitories
Special security and confidential occasions
Mobile vehicles and political/business dignitary protection
All prohibited sites requiring mobile phone restriction

Commercial Terms

Term	Details
Delivery Time	3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB HONGKONG/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Note: Jamming distances mentioned are for reference only. Actual jamming distance varies depending on signal strength, location conditions, and battery charge levels.
