Created with Pixso. 20-6000MHz Wide Range Cell Phone Signal Jammer VVIP Vehicle Security Protection
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

20-6000MHz Wide Range Cell Phone Signal Jammer VVIP Vehicle Security Protection

MOQ: 1
Price: 1
Delivery Time: 7-15
Payment Terms: L/C,D/A,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ROHS/FCC/ISO 9000/CE
Product Name:
Vehicle Signal Jammer
Product Type:
Vehicle Mounted
Total Output Power:
25W - 3500W
Max Power Per Channel:
10W - 200W
Jamming Radius:
50 - 2000 Meters
Jamming Angle:
90°-360°
Response / Startup Time:
<3 Seconds
Power Supply Method:
DC 12V-28V / DC 24V
Operating Voltage:
12V-24V
Antenna Gain:
≥8 DBi
Operating Temperature:
-40℃ To +65℃
Ingress Protection:
IP65 - IP68
Packaging Details:
Carton Packaging
Supply Ability:
1
Highlight:

wide range cell phone signal jammer

,

VVIP vehicle signal jammer

,

6000MHz mobile signal blocker

Product Description
20-6000MHz Wide Range Cell Phone Signal Jammer
VIP Vehicle Security Protection System
Product Overview
This high-power full band vehicle convoy protection roof-mounted jammer system is designed for protecting country leaders, VIP teams, EOD units, investigation teams, and government buildings. It provides protection against wireless remote bombs and offers temporary security for emergency situations.
Key Specifications
Frequency Range 20-6000MHz/700-2600MHz
Jammer Type Vehicle Bomb Jammer
Channel Number 11
Each Band Power 50W
Total Output Power 550W
Jamming Range 15-100m
Advanced Features
  • Ultra-broadband frequency coverage: 20-6000MHz
  • Continuous and simultaneous jamming of all frequency bands
  • Shockproof case design for easy mobility
  • Internationally government approved
  • Optional integrated back-up battery system
  • Smart active cooling system
  • Remote control unit for system management
  • Individual on/off switches for each frequency band
  • Special RF protection shielding for passenger safety
  • Proven deployment at Olympic Events and Universiade
Technical Specifications
Output Interface Frequency Range Application Output Power
CH1 20-108MHz Wireless, FM Radio 100W
CH2 135-174MHz Walkie-talkie (VHF) 100W
CH3 300-400MHz Remote Control, Drone 100W
CH4 400-470MHz Walkie-talkie (UHF), Car alarm 100W
CH5 851-894MHz CDMA 100W
CH6 925-960MHz GSM 100W
CH7 1570-1580MHz GPS L1 50W
CH8 1805-1920MHz DCS, PCS 100W
CH9 2110-2170MHz WCDMA 50W
CH10 2400-2485MHz WIFI, Drone, Bluetooth 50W
CH11 5725-5850MHz WIFI, Drone 15W
Physical Specifications
Jamming Radius 50-800M (varies with signal strength)
Total Output Power 600-1200W
Power Consumption 330W
Dimension 640×540×550 mm
Weight 75 Kg
Working Temperature -20℃ to +55℃
Humidity 5%-95%
Power Supply AC110-240V
RF Characteristics
Output Power 915 Watts
Internal Modulation FM Hopping Frequency
Signal Source VCO Synthesized
Power Supply AC110-240V, 24V or 48V DC
Modules Per Unit 11
Control ON/OFF with Switch
Antenna External Omni-directional for 360°
Operating Hours Unlimited
Applications
Examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts, conference rooms, movie theaters, churches, libraries, school dormitories, and special security occasions including confidential offices, negotiation rooms, mobile vehicles, and VIP protection scenes.
Terms & Conditions
Delivery Time 3 weeks from confirmed order and advance payment
Payment Terms 40% advance, 40% after one month, 20% before shipping
Delivery Terms FOB HONGKONG/USA
Warranty 36 months
Software Updates Free for 36 months
Extended Warranty 5% of total cost per year after 4th year
Important Note: Jamming distances mentioned are for reference only. Actual jamming distance varies depending on signal strength, location, and charging status.

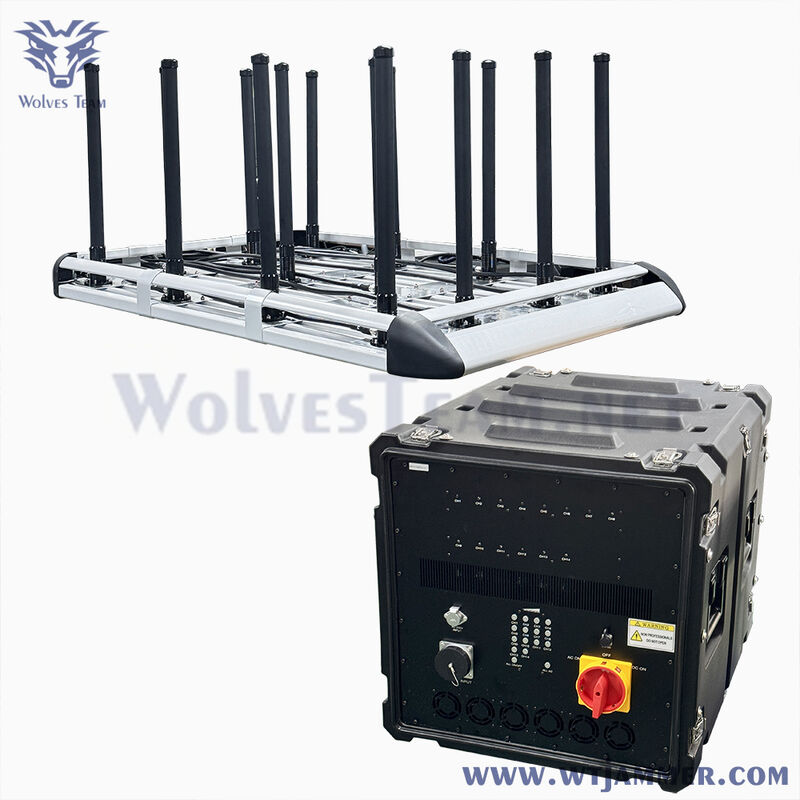

Product Images
