Full Band 20-6000MHz Vehicle Signal Blocker for VVIP Convoy Security

Full Band 20-6000MHz Vehicle Signal Blocker for VVIP Convoy Security

MOQ:	1
Price:	1
Delivery Time:	7-15
Payment Terms:	L/C,D/A,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS/FCC/ISO 9000/CE

Product Name:

Vehicle Signal Jammer

Product Type:

Vehicle Mounted

Total Output Power:

25W - 3500W

Max Power Per Channel:

10W - 200W

Jamming Radius:

50 - 2000 Meters

Jamming Angle:

90°-360°

Response / Startup Time:

<3 Seconds

Power Supply Method:

DC 12V-28V / DC 24V

Operating Voltage:

12V-24V

Antenna Gain:

≥8 DBi

Operating Temperature:

-40℃ To +65℃

Ingress Protection:

IP65 - IP68

Packaging Details:

Carton Packaging

Supply Ability:

Highlight:

Full band vehicle signal blocker

20-6000MHz convoy security jammer

VVIP security signal jammer

Product Description

Full Band 20-6000MHz Vehicle Signal Blocker for VVIP Convoy Security

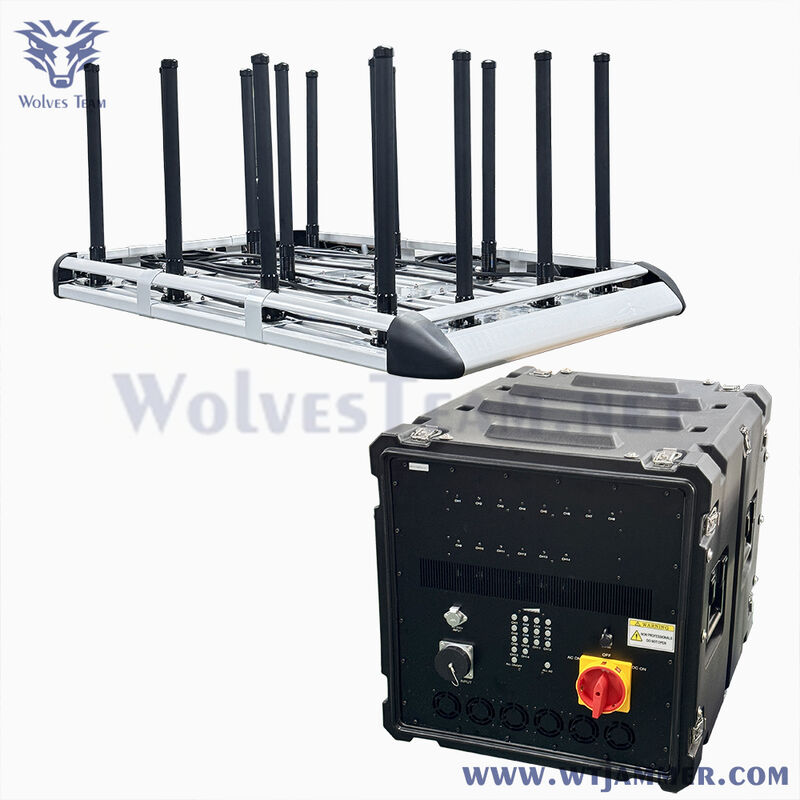

This high-power full band vehicle convoy protection roof mounted jammer system is designed for protecting country leaders, VVIP teams, EOD units, investigation and arrest operations, prisons, government buildings, and for responding to wireless remote bomb threats and emergency situations.

Key Specifications

Frequency Range	20-6000MHz/700-2600MHz
Jammer Type	Vehicle Bomb Jammer
Channel Number	11
Each Band Power	50W
Total Output Power	550W
Jamming Range	15-100m

Advanced Features

Ultra-broadband frequency coverage: 20-6000MHz
Continuous and simultaneous jamming across all frequency bands
Shockproof case design for enhanced mobility
Internationally government approved
Optional integrated back-up battery system for continuous operation
Independent smart active cooling system
Remote control unit for covert system management
Individual on/off switches for each frequency band
Special RF protection shielding for passenger and VIP safety
Proven deployment at Olympic Events and Universiade
Protection against roadside remote improvised explosive device (RCIED) attacks

Technical Specifications

Output Interface	Frequency Range	Application	Output Power
CH1	20-108MHz	Wireless, FM Radio	100W
CH2	135-174MHz	Walkie-talkie (VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400-470MHz	Walkie-talkie (UHF), Car alarm	100W
CH5	851-894MHz	CDMA	100W
CH6	925-960MHz	GSM	100W
CH7	1570-1580MHz	GPS L1	50W
CH8	1805-1920MHz	DCS, PCS	100W
CH9	2110-2170MHz	WCDMA	50W
CH10	2400-2485MHz	WiFi, Drone, Bluetooth	50W
CH11	5725-5850MHz	WiFi, Drone	15W

Physical Specifications

Jamming Radius	50-800M (varies with signal strength)
HS Code	8543709200
Total Output Power	600-1200W
Power Consumption	330W
Type	Vehicle Jammer
Dimension	640×540×550 mm
Weight	75 Kg
Power Supply	AC110-240V
Working Temperature	-20℃ to +55℃
Humidity	5%-95%

RF Characteristics

Output Power	915 Watts
Internal Modulation	FM Hopping Frequency
Signal Source	VCO Synthesized
Power Supply	AC110-240V, 24V or 48V DC
Modules Per Unit	11
Control	ON/OFF with Switch
Monitoring	Adjusted output power by DIP switch
Antenna	External Omni-directional for 360°
Power Amplifier Protectors	Full VSWR Protector
Operating Hours	Unlimited

Applicable Areas

Examination rooms, prisons, gas stations, oil depots, LPG stations
Detention centers, interrogation rooms, courts, reform-through-labour teams
Conference rooms, movie theaters, churches, libraries, school dormitories
Special security and confidential occasions
Confidential offices, negotiation rooms, mobile vehicles
Mobile political and business dignitaries guarding scenes
All types of prohibited mobile phone use sites

Terms and Conditions

Delivery Time	3 weeks from receipt of confirmed purchase order and advance payment
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB HONGKONG/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Note: Jamming distances mentioned are for reference only. Actual jamming distance varies depending on signal strength, location conditions, and charge levels.

Manufacturing Excellence

We maintain a strong R&D group in the USA dedicated to product development and innovation. Our manufacturing facilities in China produce a comprehensive line of cellular jamming products from portable units to high-spec industrial systems. With 10+ years of industry experience, we specialize in cell phone jammers, GPS jammers, WiFi jammers, 3G/4G jammers, UHF/VHF jammers, and signal repeater/amplifier systems.
