20-3000MHZ Full frequencies Bomb Jammer With Wide Coverage

20-3000MHZ Full frequencies Bomb Jammer With Wide Coverage

Brand Name:	Wolves Team
Model Number:	WT101H100-13DDS
MOQ:	1pc
Price:	USD1.0
Delivery Time:	15-20 days
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ROHS/FCC/ISO 9000/CE/ANATEL

Color:

Black

Frequency Range:

20-6000MHz/700-2600MHz

Frequency:

CDMA/GSM/3G Cellphone

Jammer Type:

Vehicle Bomb Jammer

Channel Number:

Each Bands Power:

50W

Jamming Range:

20-50m

Packaging Details:

Carton

Supply Ability:

1000pcs

Highlight:

20-3000MHz vehicle signal jammer

wide coverage bomb jammer

full frequencies signal blocker

Product Description

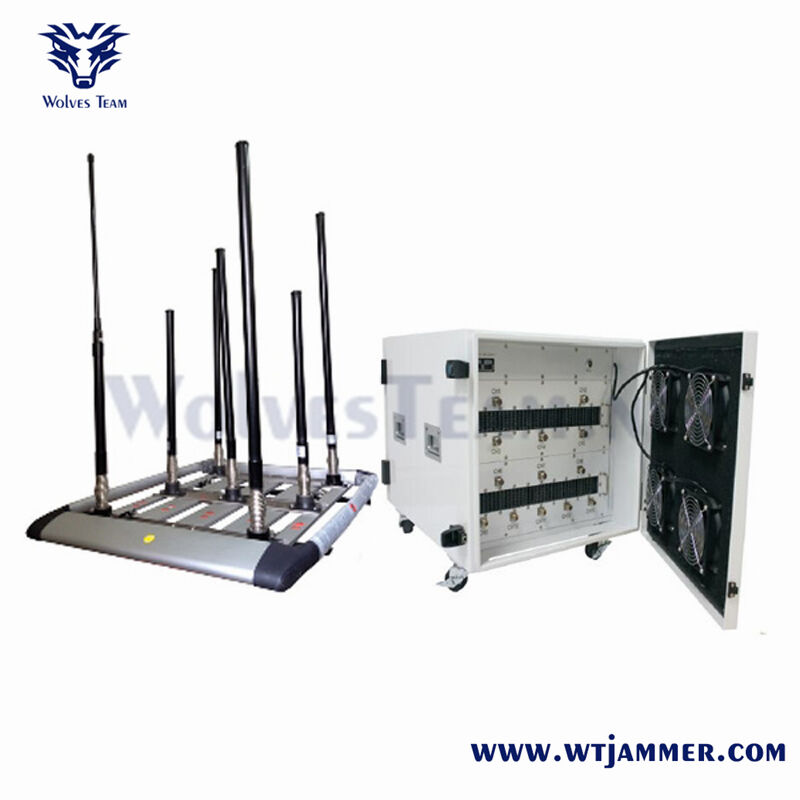

20-3000MHz Full Frequencies Bomb Jammer with Wide Coverage

This advanced 20-3000MHz full frequencies bomb jammer and vehicle jammer delivers comprehensive signal blocking with extensive coverage capabilities.

Advanced Jamming Technology

Utilizing DDS jamming technology for precise frequency setting, this system provides 100 watts per band for long-distance operation. Features highly efficient output power, extended jamming radius, and slow start-up circuit design for stable performance.

Protection Features

Over Heat protection - Thermal protection
Over current protection
High input Voltage and low Voltage protection
VSWR protection: against antenna miss-match including open and short circuit
Waterproof, protection against rain

Frequency Coverage

Comprehensive frequency blocking including all cellular phone systems, WiFi, satellite systems, and customized frequency bands from 20-3000 MHz.

Technical Specifications

Channel	Frequency Range	Output Power
CH1	500-1000 MHz	50 dBm
CH2	1000-1500 MHz	50 dBm
CH3	1500-2000 MHz	50 dBm
CH4	2000-2500 MHz	50 dBm
CH5	2500-3000 MHz	50 dBm
CH6	20-500 MHz	50 dBm
CH7	851-894 MHz	51.3 dBm
CH8	925-960 MHz	51.3 dBm
CH9	2110-2170 MHz	51.3 dBm
CH10	2400-2500 MHz	51.3 dBm

Additional Specifications

Power Supply	AC220V or DC28V
Jamming Radius	50-500M (depending on signal strength)
Power Consumption	3000W
Host Weight	45Kg
Host Size (L×H×W)	640×400×400 mm
Humidity	30%-95%
Working Temperature	-10 to +55°C

Terms & Conditions

Delivery Time	1-2 months
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB Hong Kong/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Operational Notes

Jamming distances are for reference only. Actual performance varies depending on signal strength, location conditions, and battery charge level. Do not use the jammer while charging, as this may damage the unit. Units without built-in cooling fans are particularly susceptible to overheating during charging operations.

Manufacturing & Support

Our strong R&D group in the USA is dedicated to continuous product development and innovation. With over 10 years of industry experience, we specialize in cellular jammers, GPS jammers, WiFi jammers, and various signal repeater/amplifier systems. Our comprehensive product line includes portable jammers, desktop jammers, prison jammers, vehicular jammers, bomb jammers, IED jammers, and RF jammers for both armed forces and civilian applications.
