Created with Pixso. 60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking

60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking

Brand Name: Wolves Team
Model Number: WT101H5-12
MOQ: 1
Price: 680
Delivery Time: 7-15 Days
Payment Terms: L/C,D/A
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/FCC/ISO9001
Total Output Power:
60W
Number Of Bands:
12 Bands
Power Supply:
AC100-240V / DC24V
Effective Shielding Radius:
10-60 Meters
Frequency Range:
725-3800MHz + WiFi 2.4G/5.8G + GPS L1/L2-L5
Operating Temperature:
-30℃ ~ +60℃
Packaging Details:
CartonPackaging
Supply Ability:
1000pcs/month
Product Description
60W 12-Antenna Full-Band Signal Interference System Jams 2G 3G 4G 5G Cellular WiFi and GPS L1 L2-L5 Signals

Professional-grade interference system designed to simultaneously block all major communication signals including 2G, 3G, 4G, 5G cellular networks, WiFi 2.4G/5.8G, and GPS L1/L2-L5 positioning signals.

Product Overview

This 60W 12-band desktop signal jammer delivers reliable shielding performance for venues requiring absolute signal privacy and confidentiality. With a total output power of 60W and 12 independent channels, it provides comprehensive signal blocking capabilities.

The unit features an advanced cooling system with built-in fans and aluminum alloy heatsink, ensuring stable 24/7 operation with surface temperature maintained below 45°C under normal working conditions. Available in both omnidirectional and directional antenna configurations to suit different installation requirements.

Technical Specifications
Item Specification
Model 12 (Omnidirectional)
Total Output Power 60W (5W per channel)
Number of Bands 12 Bands
Effective Working Radius 10-60 meters (depends on local signal strength)
Antenna Type WT101Q5-12:Directional
Power Supply AC100-240V or DC24V
Cooling System Built-in fans + aluminum alloy heatsink
Operating Temperature -30℃ ~ +60℃
OEM/ODM Service Supported (Logo, packaging, frequency customization)
Frequency Coverage
Signal Standard Frequency Range
CDMA 800 850-894MHz
GSM 900 925-960MHz
DCS1800 1805-1880MHz
PCS1900 1920-1990MHz
3G 2110-2170MHz
4G LTE 725-826MHz
4G WiMAX1 2300-2400MHz
4G WiMAX2 2570-2690MHz
5G 3.5G 3400-3600MHz
5G 3.7G 3600-3800MHz
WiFi 2.4G 2400-2500MHz
WiFi 5.8G 5725-5825MHz
GPS L1 1520-1650MHz
GPS L2-L5 1170-1280MHz
Key Features & Advantages
  • Full Frequency Coverage: Simultaneously blocks 12 frequency bands covering all major communication standards from 2G to 5G cellular networks, dual-band WiFi, and GPS positioning signals
  • High Output Power: Each of the 12 independent channels delivers 5W output power, totaling 60W for effective and reliable jamming performance
  • Superior Cooling System: Built with high-efficiency fans and aluminum alloy heatsink design to support uninterrupted 24/7 operation with surface temperature below 45°C
  • Flexible Installation Options: Choose between omnidirectional (WT101H5-12) for 360° coverage or directional (WT101Q5-12) for targeted signal blocking
  • Individual Band Control: Each frequency channel can be independently switched on/off for customized interference
  • Adjustable Output Power: Power levels can be adjusted to suit different application scenarios and shielding range requirements
Application Scenarios
  • Exam Halls & Classrooms - Prevent cheating via mobile devices
  • Conference Rooms & Meeting Rooms - Ensure confidential business discussions remain private
  • Theaters, Concert Halls & Museums - Maintain a distraction-free environment for audiences
  • Churches, Temples & Places of Worship - Preserve silence and reverence
  • Prisons & Government Buildings - Restrict unauthorized communications
  • Banks & Financial Institutions - Enhance security protocols
  • Training Centers & Factories - Minimize workplace distractions

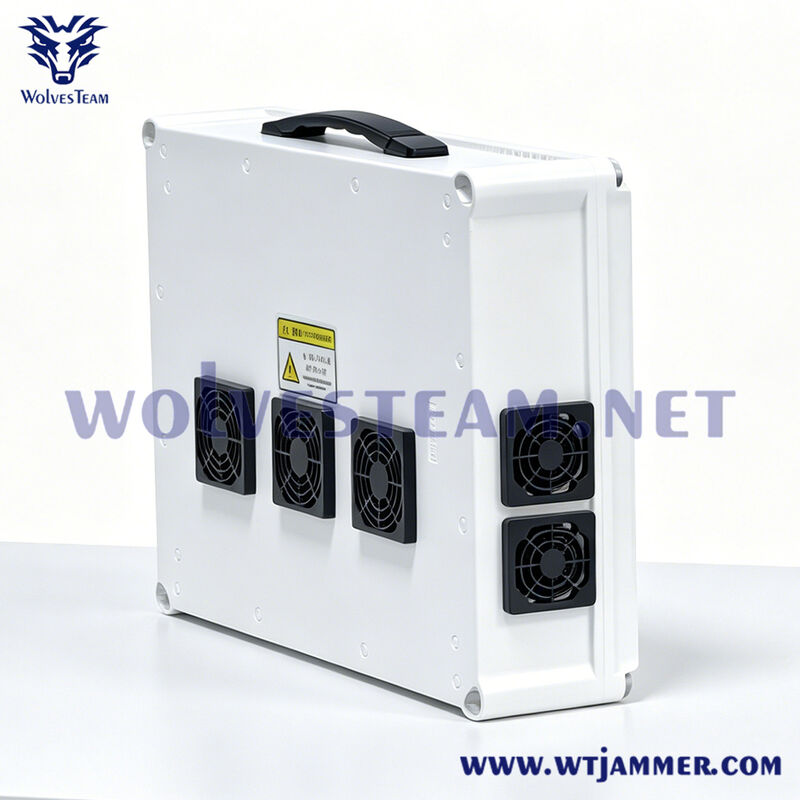

Product Images

60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking

60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking

60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking

60W 12-Antenna Full-Band Signal Jammer and Interference System for 2G 3G 4G 5G WiFi GPS Blocking
