20W Anti‑Drone RF Jammer Module | Omnidirectional Antenna for Counter UAV System

20W Anti‑Drone RF Jammer Module | Omnidirectional Antenna for Counter UAV System

Brand Name:	Wolves Team
Model Number:	WT808H
MOQ:	1
Price:	USD1.0
Delivery Time:	7-15 Days
Payment Terms:	T/T,Western Union,L/C,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

Made In China

Certification:

CE/ROHS/FCC/ISO9001

Frequency Range:

20-6000MHz/700-2600MHz

Frequency:

CDMA/GSM/3G /4G/5G /Cellphone/Wifi/Bluetooth

Jammer Type:

Signal Jammer Module

Channel Number:

Each Bands Power:

20-50W

Jamming Range:

300-500meters

Packaging Details:

Box

Supply Ability:

1000pcs/month

Highlight:

20W anti-drone RF jammer module

omnidirectional antenna counter UAV system

signal jammer module with warranty

Product Description

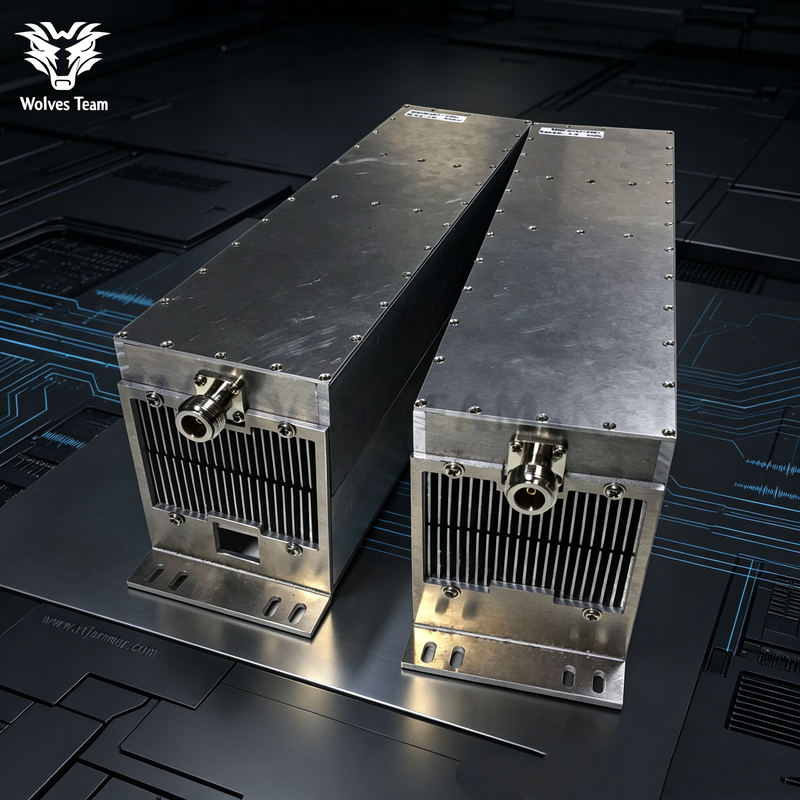

20W Anti-Drone RF Jammer Module with Omnidirectional Antenna

This 20W counter-UAV RF amplifier module is designed for European system integrators. When paired with an omnidirectional antenna, it delivers stable 20W RF output to block unauthorized drone control and video-transmission signals.

The compact aluminium alloy casing ensures reliable heat dissipation. Suitable for cabinet installation, fixed site deployment and custom counter-UAV system development.

Key Features

20W Stable RF Output: Reliable power to suppress drone RC and video links
Omnidirectional Antenna Support: 360° perimeter coverage with no blind zones
Efficient Cooling System: Heatsink plus cooling fan for long-hour continuous operation
Modular Structure: Easy multi-band combination for bespoke system integration
Sturdy Aluminium Housing: Shock-resistant with good EMC performance for indoor & sheltered outdoor use
Flexible Mounting: Pre-drilled holes for cabinet, wall-mount and chassis assembly

Technical Specifications

Output Interface	CH1 \| LOJACK: 167-175MHz (For reference only, interchangeable)
Jamming Range	Up to 300m (dependent on local signal strength)
HS Code	8543709200
Dimensions	401225 cm
Weight	1.5kg
Type	Signal Jammer Module
Total Output Power	20W-80W
Power Supply	5V12A AC: 110-240V; 50/60Hz
Antennas	External Omni-directional antennas

Complete Frequency Band Coverage

Band	Frequency Range
1	4G LTE1: 725-770MHz
2	4G LTE2: 790-826MHz
3	CDMA 800: 850-894MHz
4	GSM 900: 925-960MHz
5	DCS1800: 1805-1880MHz
6	PCS 1900: 1905-1990MHz
7	3G: 2110-2170MHz
8	4G WIMAX1: 2300-2400MHz
9	4G WIMAX2: 2570-2690MHz
10	5G1: 3400-3600MHz
11	5G2: 3600-3800MHz
12	WIFI 2.4G: 2400-2500MHz
13	GPS L1: 1520-1650MHz
14	GPS L2: 1220-1230MHz
15	GPS L3: 1376-1386MHz
16	GPS L4: 1835-1845MHz
17	GPS L5: 1170-1180MHz
18	WIFI 5.2G: 5150-5350MHz
19	WIFI 5.5G: 5300-5600MHz
20	WIFI 5.8G: 5725-5825MHz
21	LOJACK: 167-175MHz
22	VHF: 135-174MHz
23	UHF: 400-470MHz
24	Remote Control: 315MHz
25	Remote Control: 433MHz
26	Remote Control: 868MHz
27	Remote Control: 319.5MHz
28	Remote Control: 345MHz

Product Images

Purchase & Warranty Terms

Delivery Time	3 weeks from confirmed order
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB HONGKONG/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Usage Notes

Jamming Distance Notice: The jamming distances mentioned are for reference only. Actual performance may vary depending on signal strength, location conditions, and battery charge level.

Cooling System Warning: Do not use the jammer while charging. The device lacks a built-in cooling fan and may overheat if operated during charging, potentially causing damage that voids warranty coverage.

Manufacturing & Support

USA R &D Group: Our dedicated research and development team in the USA focuses on continuous product innovation and improvement, ensuring we meet evolving customer needs with cutting-edge jamming technology.

China Manufacturing: With over 10 years of industry experience, we specialize in comprehensive signal jamming solutions including GSM, CDMA, GPS, WiFi, 3G/4G, UHF/VHF, and RF jammers. Our product range includes portable, desktop, prison, vehicular, and bomb jamming systems, supported by unparalleled professional service and technical expertise.
