Battery Built In 8 Bands Max 200W VHF UHF Mobile Phone Backpack

Battery Built In 8 Bands Max 200W VHF UHF Mobile Phone Backpack

Brand Name:	Wolves Team
Model Number:	WT808BC-8
MOQ:	1pc
Price:	USD1.0
Delivery Time:	7-15 days
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ROHS/FCC/ISO 9000/CE/ANATEL

Color:

Black

Frequency Range:

20-6000MHz/700-2600MHz

Frequency:

CDMA/GSM/3G Cellphone

Jammer Type:

Backpack Jammer

Channel Number:

Each Bands Power:

20W

Total Output Power:

200W

Jamming Range:

50-500m

Application Scenarios:

Special Tactics & Counter-IED/Mobile Patrol & Rapid Respon ETCse

Packaging Details:

Carton

Supply Ability:

1000pcs

Highlight:

Battery built-in backpack signal jammer

200W VHF UHF mobile phone jammer

8 bands signal blocking backpack

Product Description

Battery Built In 8 Bands Max 200W VHF UHF Mobile Phone Backpack

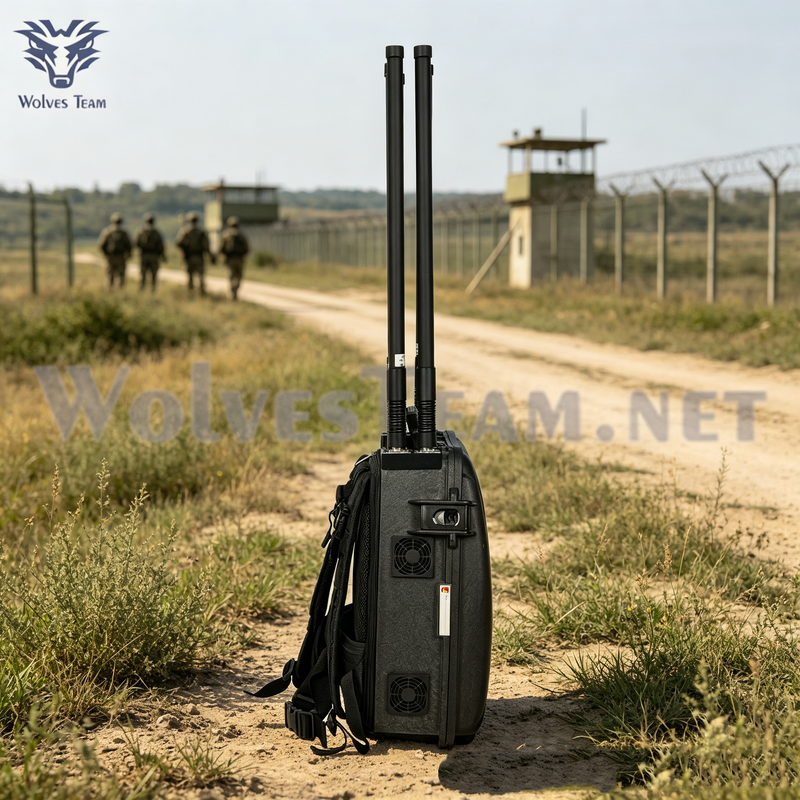

This 200W 8-channel backpack signal jammer is a powerful multi-frequency jamming device capable of blocking 3G, 4G, WiMAX, WiFi, GPS, VHF, and UHF signals simultaneously. With high power output and advanced cooling technology, it delivers reliable performance for extended operational periods.

Key Features

Modular design for simplified maintenance, on-site repair and functional upgrades
Supports up to 8 interchangeable jamming modules for mission-specific configuration
Ergonomic backpack build for easy portability during long border foot patrols
Triple power supply options: internal rechargeable battery, AC mains power and DC external input
External LCD screen to view real-time battery charge levels during field operations
Heavy-duty rugged build compliant with tactical field deployment standards

Operational Advantages

This frequency scan convoy jamming system implements advanced RF jammer technology with fully-integrated broadband capabilities. The lightweight backpack design enables operators to carry it through challenging terrain including hills, muddy roads, and steep mountains, improving combat efficiency and reducing casualties in extreme situations.

Technical Specifications

Output Interface & Frequency

Channel	Output Frequency
CH1	4G LTE1: 725-770MHz
CH2	4G LTE2: 790-826MHz
CH3	5G1: 3400-3600MHz
CH4	5G2: 3600-3800MHz
CH5	WIFI 2.4G: 2400-2500MHz
CH6	WIFI 5.8G: 5725-5825MHz
CH7	4G WIMAX1: 2300-2400MHz
CH8	4G WIMAX2: 2570-2690MHz

Parameter	Specification
Jammed Signal Frequency	CDMA, GSM, 2.4G WIFI, 5.8G WIFI, GPS L1, GPS L2-L5, VHF, UHF
Type	Backpack Jammer
Output Channels	8
Output Power	200Watt
Shielding Range	Radius 50-500 meters (depending on base station distance in open field)
Jammer Modules	8
Dimension (without antennas)	30 × 45 × 15 cm
Antenna Type	Omni Antenna

Additional Technical Parameters

Parameter	Value
Net Weight	13 kg
Total Weight (with case)	16 kg
Operating Temperature	-10ºC to +50ºC
Relative Humidity	≤80%
Power Consumption	≤360W
Power Input	AC 100-240V, DC 24V
Battery	24V, 30AH built-in standby battery (90-180 minutes operation)
Antenna Parameters	Omni antennas, gain: 4-5 dBi
Control	Manual switching
Chassis	Metallic paint
Cooling System	Active "smart" cooling with integrated incoming air filter

Available Frequency Ranges

Frequency Band	Range
CDMA 800	851-894MHz
GSM 900	925-960MHz
DCS 1800	1800-1880MHz
PHS 1900	1920-1990MHz
3G 2100 (UMTS)	2110-2170MHz
WIFI 2.4G Bluetooth	2400-2500MHz
WiFi 3.6G	3500-3600MHz
Wi-Fi 5.2G	5100-5500MHz
WIFI 5.8G	5725-5850MHz
4G/LTE 700M (US)	725-770MHz
4G/LTE 800M (EU)	790-826MHz
4G Wimax (US)	2300-2400MHz
4G Wimax (EU)	2620-2690MHz
GPS/L1	1500-1600MHz
GPS/L2	1200-1300MHz
GPS/L3	1300-1400MHz
GPS/L4	1100-1200MHz
VHF	135-174MHz
UHF	400-470MHz
Lojack	167-175MHz
RF315	315MHz
RF433	433MHz
RF868	868MHz

Customization Service

We offer flexible customization services with 4-8 frequency modules that can be mixed according to your specific requirements.

Terms & Conditions

Item	Details
Delivery Time	1-2 months from receipt of confirmed purchase order and advance payment
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB Hong Kong/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Operational Notes

Jamming distances mentioned are for reference only. Actual performance varies depending on signal strength, location conditions, and battery charge level.

Do not use the jammer while charging, as this may damage the unit. Units without built-in cooling fans are particularly susceptible to overheating during charging operations.

Manufacturing & Support

Our strong R&D group in the USA is dedicated to continuous product development and innovation. With over 10 years of industry experience, we specialize in cellular jammers, GPS jammers, WiFi jammers, and various signal repeater/amplifier systems. Our comprehensive product line includes portable jammers, desktop jammers, prison jammers, vehicular jammers, bomb jammers, IED jammers, and RF jammers for both armed forces and civilian applications.
