300-500M High‑Power Portable Signal Jammer Integrated Rechargeable Battery And Antennas

300-500M High‑Power Portable Signal Jammer Integrated Rechargeable Battery And Antennas

Brand Name:	Wolves Team
Model Number:	WT808LB30-9
MOQ:	1pc
Price:	USD1.0
Delivery Time:	7-15 days
Payment Terms:	D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Made in China

Certification:

ROHS/FCC/ISO 9000/CE/ANATEL

Color:

Black

Frequency Range:

20-6000MHz/700-2600MHz

Frequency:

CDMA/GSM/3G Cellphone/PCS/4G/5G

Jammer Type:

Portable Signal Jammer

Channel Number:

Each Bands Power:

30W

Total Output Power:

270W

Jamming Range:

300-500m

Application Scenarios:

Special Tactics & Counter-IED/Mobile Patrol & Rapid Respon ETCse

Packaging Details:

Carton

Supply Ability:

1000pcs

Highlight:

300-500M portable signal jammer

high-power signal jammer with battery

rechargeable signal jammer with antennas

Product Description

300-500M High-Power Portable Signal Jammer

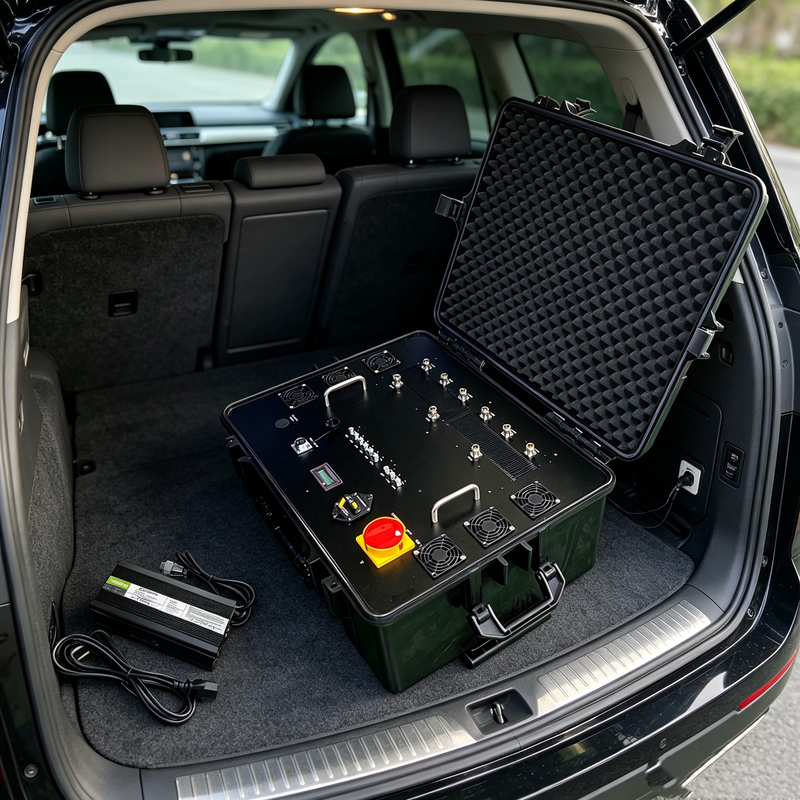

Customizable high-power portable signal jammer featuring integrated rechargeable battery and antennas. Designed for temporary vehicle trunk deployment in high-density crowded public venues.

This portable signal suppression unit is engineered for rapid-response mobile security tasks, supporting temporary vehicle-trunk deployment at high-density public venues. Remote-controlled high-power operation maintains a safe stand-off distance for operators from crowded zones.

Up to 30 W EIRP per band delivers 300-500 meters suppression range, subject to local RF conditions. The heavy-duty trolley hard case is rain-resistant and sand-proof for outdoor mobile use. Integrated rechargeable battery enables fast in-trunk setup without fixed-site power for urgent field missions.

Provides reliable multi-band signal neutralization for mass gatherings and high-foot-traffic sites, mitigating risks from unauthorized wireless communications during large-crowd events.

Key Applications

Mobile signal security for high-density mass-gathering venues
Vehicle-trunk deployment for large-scale public-event signal management
Signal containment & anti-interference for crowded temporary venues
Safety safeguarding for high-foot-traffic public assemblies
Emergency mobile signal suppression from vehicle trunks for outdoor sites

Technical Specifications

Output Interface	Output Frequency
CH1	CDMA850:850-894MHz
CH2	GSM900:925-960MHz
CH3	DCS1800:1805-1880MHz
CH4	PCS1900:1920-1990MHz
CH5	3G:2110MHz-2170MHz
CH6	GPS:1500-1600MHz
CH7	VHF: 135-174MHz
CH8	UHF: 400-470MHz
CH9	4G Wimax:(USA:2345-2400MHz) or (Europe:2620-2690MHz)

Specification	Details
Jamming Range	Up to 500m (under Signal level ≤-85dBm) according to signal density mobile network
HS Code	8543709200
Dimensions	560 x 455 x 265mm (not including antennas)
Weight	28kg
Type	Portable Signal Jammer
Total Output Power	270W
Packing	Neutral Packing
Power Supply	AC adapter (50 to 60Hz/100 to 240V AC -DC27V)
Antenna Type	Directional Antenna or Omni-directional antenna
Operating Temperature	-20 to +50ºC
Storage Temperature	-40 to +60ºC
Humidity	5%-80%

Product Images

Available Frequency Ranges

Frequency Band	Range
CDMA 800	851-894MHz
GSM 900	925-960MHz
DCS 1800	1800-1880MHz
PHS 1900	1920-1990MHz
3G 2100 (UMTS)	2110-2170MHz
WIFI 2.4G Bluetooth	2400-2500MHz
WiFi 3.6G	3500-3600MHz
Wi-Fi 5.2G	5100-5500MHz
WIFI 5.8G	5725-5850MHz
4G/LTE 700M (US)	725-770MHz
4G/LTE 800M (EU)	790-826MHz
4G Wimax (US)	2300-2400MHz
4G Wimax (EU)	2620-2690MHz
GPS/L1	1500-1600MHz
GPS/L2	1200-1300MHz
GPS/L3	1300-1400MHz
GPS/L4	1100-1200MHz
VHF	135-174MHz
UHF	400-470MHz
Lojack	167-175MHz
RF315	315MHz
RF433	433MHz
RF868	868MHz

Terms & Conditions

Item	Details
Delivery Time	1-2 months from receipt of confirmed purchase order and advance payment
Payment Terms	40% advance, 40% after one month, 20% before shipping
Delivery Terms	FOB Hong Kong/USA
Warranty	36 months
Software Updates	Free updates for 36 months
Extended Warranty	5% of total cost per year after 4th year

Important Operational Notes

Jamming distances mentioned are for reference only. Actual performance varies depending on signal strength, location conditions, and battery charge level.

Do not use the jammer while charging, as this may damage the unit. Units without built-in cooling fans are particularly susceptible to overheating during charging operations.

Manufacturing & Support

Our strong R&D group in the USA is dedicated to continuous product development and innovation. With over 10 years of industry experience, we specialize in cellular jammers, GPS jammers, WiFi jammers, and various signal repeater/amplifier systems.

Our comprehensive product line includes portable jammers, desktop jammers, prison jammers, vehicular jammers, bomb jammers, IED jammers, and RF jammers for both armed forces and civilian applications.
