Backpack Signal Jammer
Created with Pixso. Adjustable Output Power Backpack Signal Jammer Offering Jamming Range Up To 200 Meters Ideal for Tactical Signal Blocking

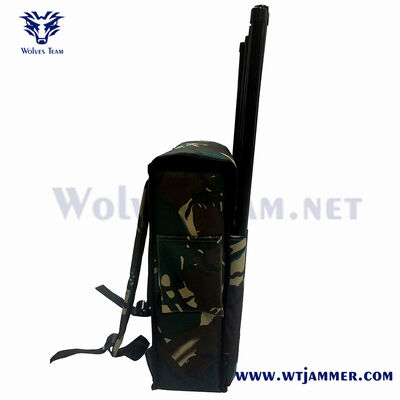

Adjustable Output Power Backpack Signal Jammer Offering Jamming Range Up To 200 Meters Ideal for Tactical Signal Blocking

Brand Name: Wolves Team
Model Number: WT600182
Detail Information
Features:
Adjustable Output Power, Easy To Carry And Operate
Signal Jammer For:
All Cell Phone Signal Jammer
Power Supply Voltage:
230VAC / ~110VAC
Total Working Bands:
12 Bands For Option
Rf Power:
160w
Jamming Range:
Up To 200 Meters
Antenna Type:
5dBi External Omni-directional
Total Weight:
13 Kg
Highlight:

adjustable power backpack signal jammer

,

200 meter range signal jammer

,

tactical backpack signal blocker

Product Description
Adjustable Output Power Backpack Signal Jammer
Product Overview

The High Power Frequency Scan Convoy Jamming System utilizes advanced RF jammer technology with a fully integrated broadband jamming system that ensures effective disruption across multiple frequency bands. Designed for high portability and lightweight operation, this system is conveniently carried in a backpack, making it ideal for mobile operations.

This system proves valuable in challenging environments, particularly when used with heavily loaded vehicles or in backpack configurations. Operators can transport the device easily through difficult terrains such as hills and muddy roads, as well as ascend steep mountains and stairs, minimizing casualties while significantly enhancing combat efficiency.

Key Features
  • High-power manpack multi-band RF signal jammer
  • Modular design for easy maintenance, repair, and upgrades
  • Accommodates up to four different jamming modules simultaneously
  • Maximum total RF output power of 220 watts
  • Backpack-style form factor for field operations
  • Multiple power sources: internal battery, AC mains, and DC power inputs
  • External LCD display for battery level monitoring
  • Smart cooling mechanism for optimal performance
  • Meets stringent military standards for durability and reliability
Technical Specifications
Output Interface Output Frequency
CH1 -CDMA: 851-960MHz /-GSM: 925-960MHz
CH2 -DCS: 1805-1880MHz
CH3 -PCS: 192-1990MHz
CH4 -3G: 2110-2170MHz
CH5 -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU)
CH6 -4G LTE: 725-770MHz(US) or 790-826MHz(EU)
CH7 -5G: 3200-3600MHz
CH8 -5G: 3600-4200MHz
Jammed Signal Frequency CDMA, GSM, 2.4G WIFI, 5.8G WIFI, GPS L1, GPS L2-L5, VHF, UHF
Type Backpack jammer
Output Channel 8 output channels
Output Power 160 watt
Parameter Shielding Range Radius 5-200 meters (-75dBm, depending on the distance of base station in an open field)
Jammer Module Number 8
HS Code 8543709200
Packing Box
Dimension (not including antennae) 30 * 45 * 15cm
Antenna Omni Antenna
Net Weight 12KG
Total Weight 13KG
Ambient Temperature -10ºC - +50ºC
Relative Humidity ≤80%
Power Consumption ≤220W
Power Input AC100~240V, DC24V
Battery 24V, 30AH, Built-in standby battery can used for 90~180 minutes
Antenna Parameters Omni antennas, gain: 4~5dBi
Switch Control Manually
Equipment Chassis Metallic Paint
Cooling System Active "smart" with integrated incoming air filter
Antennae Type External high gain Omni directional Antenna
Applications

The Wolves Team WT600182 Backpack Signal Jammer provides effective signal blocking in various situations. With robust 160W RF power and advanced 5dBi external omni-directional antenna, this portable jammer disrupts all cell phone signals including 5G networks.

  • Secure meeting environments for confidentiality protection
  • Law enforcement and military operations for communication control
  • Educational institutions and examination centers to prevent cheating
  • Large public events for crowd management and security control
  • Mobile security operations requiring on-the-move jamming capabilities
Frequently Asked Questions
Q1: What is the brand and model number of this Backpack Signal Jammer?
A1: The Backpack Signal Jammer is manufactured by Wolves Team, and the model number is WT600182.
Q2: What types of signals can the WT600182 Backpack Signal Jammer block?
A2: The WT600182 Backpack Signal Jammer can block various signals including GSM, GPS, Wi-Fi, and other common communication frequencies to ensure effective jamming in the targeted area.
Q3: How portable is the Wolves Team WT600182 signal jammer?
A3: The jammer is designed as a backpack, making it highly portable and easy to carry for field operations, allowing users to move freely while jamming signals.
Q4: What is the effective range of the WT600182 Backpack Signal Jammer?
A4: The effective jamming range varies depending on the environment but typically covers up to several hundred meters, providing reliable signal disruption within that radius.
Q5: Is the Wolves Team WT600182 easy to operate for users?
A5: Yes, the WT600182 is designed for user-friendly operation with intuitive controls, enabling users to activate and manage jamming functions efficiently even in the field.
Terms and Conditions
Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms 50% advance, 50% before shipping.
Terms of Delivery FOB HONGKONG/ USA.
Warranty 36 months.
Software Updates Free software updates will be provided for a period of 36 months.
Extended Warranty After 4th Year: 5% of total for each year.
