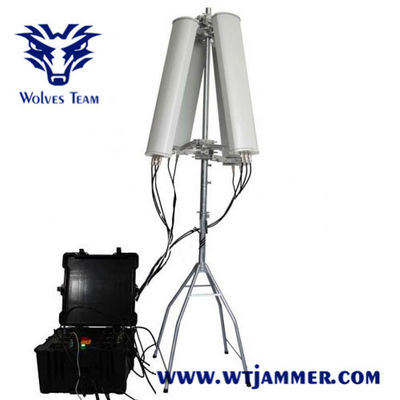

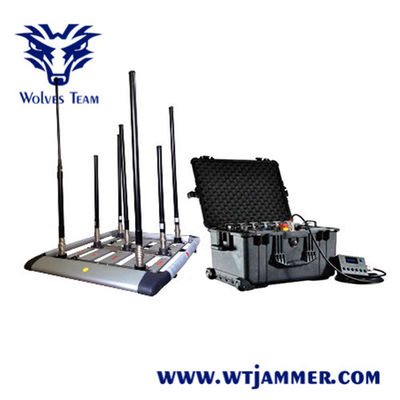

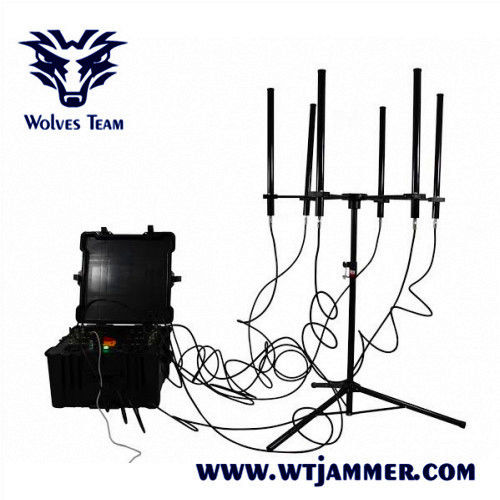

Waterproof Outdoor 800 Meters WIFI IED Bomb Jammer

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Type:	Bomb Jammer	Jamming Area::	50-800 Meters
Signal Jammer For:	20 - 6000MHz Cell Phone Signal Jammer	Working Time:	24 Hours/365days Continuously
Antenna Type Options:	Directional Or Omnidirectional Antennas Option	Special Technology:	Prevent Interference Between Each Frequency Band
Dimension:	640×540×550 Mm	Weight:	75 Kg
Power Consumption:	330W	Packing:	Box
High Light:	WIFI IED Bomb Jammer , Outdoor IED Bomb Jammer

Waterproof Convoy Vehicle Bomb Jammer Full Band Frequency RF WIFI Cell Phone Signal Jammer

Features:

1. High-power portable multi-band jammer.

2. Field programmability for rapid adjustment frequence with output Watt.

3. Modular construction for easy maintenance,repair and upgrade.

4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.

5. Each module with LED display to show its working frequency ,output power and etc.

6. 250-300 watt total RF output power.

7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.

8. Fully portable trolley-type case.

9. Internal battery, AC mains or DC power.

10. External LED display to indicate the batterylevel.

11. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.

Technical Specifications:

12 bands for option: The frequencies can be from 20-6000MHZ

Output Interface	Frequency Range	Out Power	RF Output dBm
CH1	20-108MHz	Wireless ,FM Radio	100W
CH2	135-174MHz	Wilkie-talkie(VHF)	100W
CH3	300-400MHz	Remote Control, Drone	100W
CH4	400-470MHz	Wilkie-talkie(UHF),Car alarm	100W
CH5	851-894MHz	CDMA	100W
CH6	925-960MHz	GSM	100W
CH7	1570-1580MHz	GPSL1	50W
CH8	1805-1920MHz	DCS,PCS	100W
CH9	2110-2170MHz	WCDMA	50W
CH10	2400-2485MHz	WIFI,Drone,Bluetooth	50W
CH11	5725-5850MHz	WIFI,Drone	15W
Jamming Radius:	50-800M, the jamming radius still depends on the strength signal in given area
Total output power:	600~1200W
Type:	Vehicle Jammer
Dimension:	640×540×550 mm
Packing:	Neutral Packing
Signal Jammer for:	20 - 6000MHz Cell Phone Signal Jammer
Power supply:	AC110 240V
Weight:	75 Kg
Humidity:	5%-95%
Working Temp:	-20℃ to +55℃

RF Characteristics:

RF Characteristics	Description
Internal Modulation	FM Hopping Frequency
Signal Source	VCO Synthesized
Power Supply	AC110-240V,24V or 48V DC
Contol	ON/OFF with Switch
Monitoring	Adjusted output power by DIP switch
Antenna	External- Omni-directional for 360°
Operating Hours	Unlimited

Terms and conditions:

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	40% advance, 40% after one month,20% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
