| Place of Origin: | China |
| Brand Name: | Wolvesteam |
| Certification: | CE.FCC. |
| Model Number: | WT900190 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated price |
| Packaging Details: | Dimensions Of Device: 450x380x350mm |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/P, T/T, Western Union,Paypal |
| Supply Ability: | 2000 pcs per years |
| Dimensions: | 530 X 300x 200mm Not Include Antennas | Weight Of Product: | 25kg |
|---|---|---|---|
| Total Output Power: | 600W | Packing: | Neutral Packing |
| Signal Jammer For: | 600W 6 Bands High Power Drone Jammer | Frequency Range: | 2.4G,5.8G,GPSL1,WiFi3.6G,433 |
| Antenna Type: | Directional Antenna Or Omini-directional Antenna | Jamming Range: | Up To 2500m |
| Humidity: | 5%-80% | HS Code: | 8543709200 |
| High Light: | UAV Jammer,Waterproof rc drone jammer |
||
Military High Power waterproof Outdoor Prison UAV Signal Drone Jammer WIFI5.8G GPS Cell Phone Signal Jammer
Product Description:

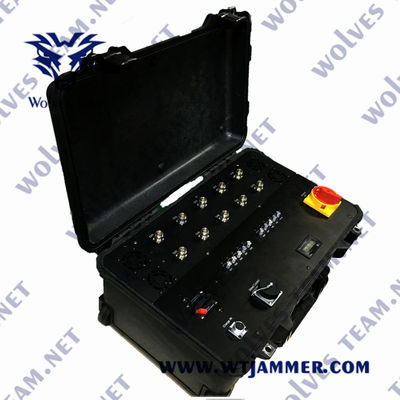

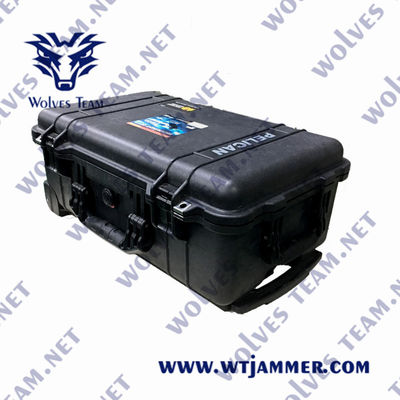

This Six Bands Drone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.
The frequency segment can be customized. Its normal frequency setting is 2G,3G,4G + Wi-Fi or 2G,3G ,4G + GPS. The output power of each channel is 10-30W, and the total output power is 600W. The shielding range of this prison signal shielding device can be Up to 2000 meters, and its configuration antenna can also be selected according to your needs.
There are several types of antennas. One is a directional antenna. The coverage of this type of antenna is relatively long, and the signal can be covered for the orientation you need, rather than covering the signal centered on a certain point. Another type of antenna is a fiberglass omnidirectional antenna that radiates a signal outward at a certain point. The range in which the gain of the antenna is also different is also
different. These are all you can customize as needed. Please contact us if you need it.
Features:
1. Up to Six Frequency Bands.
2. PLL Synthesized Signal Source
3. Scew controls to adjust Output Power
4. 10dBi Directional Antennas each Band
5. Only Interferes w/Downlink Base Station Frequencies
6. Slow Start-up Circuitry for Long Term Reliability
7. Over Temperature and VSWR Protection
8. Status/Alarm LEDs
9. Fan Cooled Rack Enclosure with Casters
10. 100-240VAC Power Supply Source
11. Optional Status Monitoring Software for Client PC
Specifications
| Output Interface | Output Frequency |
| CH1 | 2.4G: 2400-2500MHz |
| CH2 | 5.8G: 5725-5850MHz |
| CH3 | GPSL1: 1560-1620MHz |
| CH4 | 868-920: 868-916MHz |
| CH5 | WiFi3.6G: 3500-3600MHz |
| CH6 | 433: 433 MHz |
| Jamming range: | Up tp 2500m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| HS Code: | 8543709200 |
| Dimensions Of Device: | 530 x 300x 200mm not include antennas |
| Weight Of Product: | 25kg |
| Type: | Drone jammer |
| Total output power: | 600W |
| Packing: | Neutral Packing |
| Signal Jammer for: | 600W 6 bands High Power Drone jammer |
| Power Supply: | AC adapter (50 to 60Hz/100 to 240V AC -DC27V) |
| Antenna Type: | Directional Antenna or Omini-directional antenna |
| Operating Temp : | -20 to +50ºC |
| Storage Temp: | -40 to +60ºC |
| Humidity : | 5%-80% |
We could supply customized service by your detail requirements about frequencies setting. All 4-8 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 90 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315MHz
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
