| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | 450×400×320 mm Box package |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Total Output Power: | 30W | Jamming Range: | Up To 50m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
|---|---|---|---|
| Power Supply: | 50 To 60Hz, 100 To 240V AC | With AC Adapter: | (AC100-240V-DC27V) |
| Block Frequency: | Gsm Cdma Pcs 3g 4g Wifi Gps Uhf Vhf | Feature: | Power Of Each Frequency Band Can Be Adjustable Independently. |
| Dimension: | 232x80x140mm | Antenna: | External Double Channel Directional Panel Antennas All The TX Frequency Covered Down Link Only |
| High Light: | 10 Antenna Portable Signal Jammer,50m Portable Signal Jammer |
||

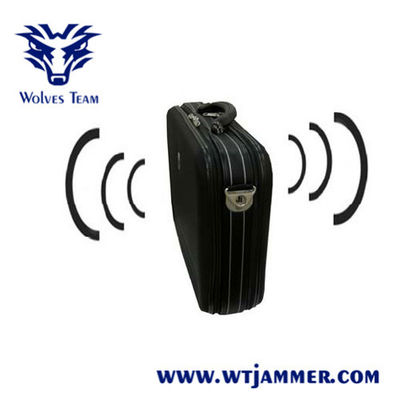

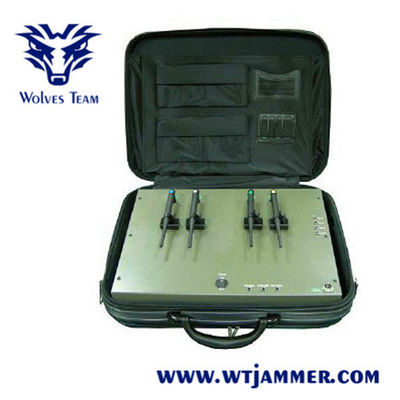

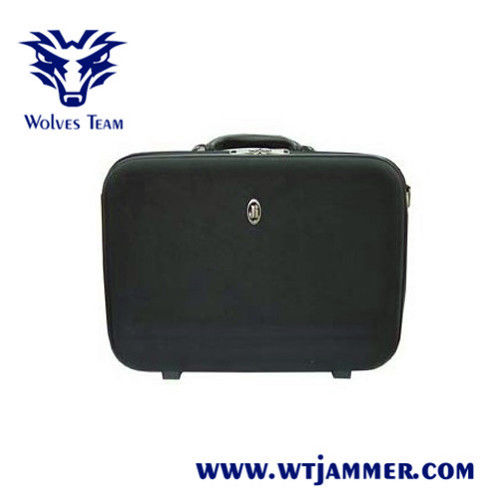

This high power Portable Briefcase style design Adjustable Indoor /Outdoor 10 Antenna 10 Band 3G 4G GPS WiFi UHF VHF All Wireless Signal Jammer that you are viewing here is the new designed signal jammer that is designed with the ability to cut off the signals of UHF,VHF ,GSM, DCS, PCS, 3G,4G, 4G LTE,4G WiMax and WiFi GPS, can working at the same time.
The powerful jammer has a wide affected frequency ranges, It also has a jamming range up to 50m, depending on the signal strength in the given area. Within the range, just turn on the jammer, all wireless connection to UHF,VHF ,GSM, DCS, PCS, 3G,4G, 4G LTE,4G WiMax and WiFi GPS network will be disabled at the same time. Also, the jammer is a selectable unit. In other word, user can choose to allow operation of one or a few of frequency bands. Adjustment of ON or OFF any of the single bands will not cause any disruption to the operation of others..
All the RF frequencies only blocking the downlink band, never to the uplink.
Advantages and Features
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Specification:
| Output Interface | Output Frequency | RF Output watt |
| CH1 | CDMA/GSM: 851-960MHz | 1W-5W |
| CH2 | DCS: 1805-1880MHz | 1W-5W |
| CH3 | PCS: 1930-1990MHz | 1W-5W |
| CH4 | 3G: 2110-2170MHz | 1W-5W |
| CH5 | 4G LTE:(USA:725-770MHz) or (Europe:790-826MHz) | 1W-5W |
| CH6 | 4G Wimax:(USA:2345-2400MHz) or (Europe:2620-2690MHz) | 1W-5W |
| CH7 | WIFI 2.4:2400-2500MHZ | 1W-5W |
| CH8 | GPS :1570-1580MHZ | 1W-5W |
| CH9 | VHF: 135-174MHz | 1W-5W |
| CH10 | UHF: 400-470MHz | 1W-5W |
| Total output power | 30W | |
| Jamming range | up to 50m,still depends on the strength signal in given area | |
| Jammer Module Number | 10 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 232x80x140mm | |
Accessories
Applications
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 month, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
