| Place of Origin: | china |
| Brand Name: | WolvesTeam |
| Certification: | CE |
| Model Number: | JM138007 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | 550×450×280mm Box Package |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pices/month |
| Total Output Power: | 800w | Jamming Range: | 1000m |
|---|---|---|---|

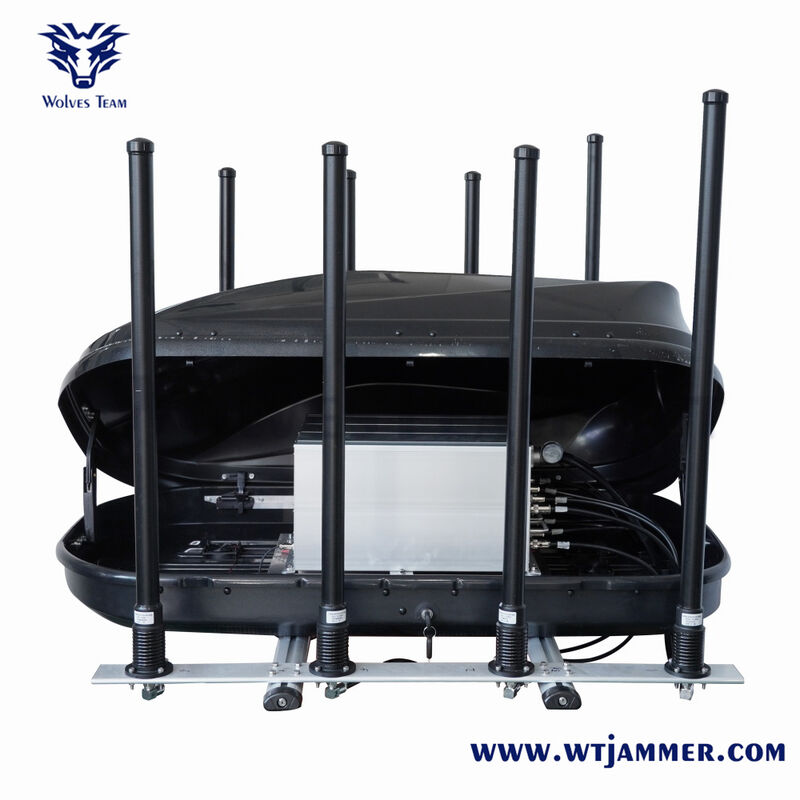

| Feature: | DDS Bomb Full Bands High Power | Type: | Vehicle |
| Antenna Type: | Vehicle Travelling Box With Short Antenna | Advantage: | Remote Control Switches Of Each Machine. |
| Block Frequency: | UHF VHF WIFI GPS 2G 3G 4G | ||
| High Light: | 800w Vehicle Gps Jammer,1000m Vehicle Gps Jammer |
||
Military / Police / Government / Convoy Portable RCIED Jammer 12 band
Applications : Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection
Specification:
| CH:20-100 Radio Control Toys; Alarms 50w | CH:100-200 Walky-talky(VHF) 50w |
| CH:200-350 Walky-talky(UHF300) 50w | CH:350-500 Walky-Talky400 Car Alarm 50w |
| CH:850-960 Cellular GSM900 50w | CH:2110-2170 Cellular UMTS/WCDMA(3G) 100w |
| CH:2300-2400 4G Wimax 100w | CH:2620-2690 4G WIMAX (EU) 100w |
| CH:500-1000 Cellular CDMA/TDMA,Walky-Talky (UHF800/900) 50w |
| CH:1805-1990 Cellular HGSM1800/ DCS Cellular GSM1900/ PCS (+ PHS) 100w |
| CH:1520-1580 GPS&Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso 50W |
| CH:2400-2500 WLAN & Bluetooth & Wifi 50w |
(Option Customize frequency)
5.0-5.5GHz:10W, 5.5-6.0GHz:10W
WiFi 11.a, 20-50MHz: 50W 66-88MHz:50W
Civil Remote Control Toys: 200-300MHz:60W, 300-400MHz:60W:
VHF 130-180MHz:50W, UHF 420-480MHz:50W,
GPS L1 L2 L3 L4 L5: 30W.
Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.
Advantage :
Portable case RCIED Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Case Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border crossings, roadblocks, Embassies, Police and Government offices etc. Case Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements
Feature :
Total RF output power: 800W (Adjustable output power for each band)
Jamming Range: 100-1000 meters@－75dBm
Power supply: AC adapter (AC220V-DC27V or 24V/ 40-50 Amp)
Adjustable Output Power each Band, Stand-alone modular design and individual power control.
Temperature over protection.
Working status indicator for each band modular.
Dimension: 69cm(L)×69cm(W)×39cm(D)
Weight: 45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
· Taking use of super-high frequency with high effective power.
· Effective output power (channel power) and bigger interfere radius.
· Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
· Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
Note: The Monitoring platform operation manual will provide when finished the order. Easy operation and installation
