| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | 625×500×700 mm Box package |
| Delivery Time: | 3-4weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Affected Frequency Ranges: | (13bands Option) | Total Output Power: | 600~1300W |
|---|---|---|---|
| Jamming Range: | Up To 1000m, The Jamming Radius Still Depends On The Strength Signal In Given Area | Power Supply: | 50 To 60Hz, 100 To 240V AC |
| With AC Adapter: | (AC100-240V-DC27V), | Feature: | High Power Full Frequency |
| Dimension: | 625×500×700 Mm | Monitor Software Function: | Remote Control Switches Of Each Machine. |
| High Light: | 5g Vehicle Signal Jammer,5g cell phone scrambler |
||
This Waterproof All frequency Cellphone/GPS/Lojack/VHF/Ufh/5g Signal Jammer with 13 Bands up to 1000meterscan cover, continuously and simultaneously, all the RF communication Frequencies 20MHz~6000MHz (or 20-3600MHz) which are most commonly used by terrorists to detonate road-side bombs (RCIEDs).

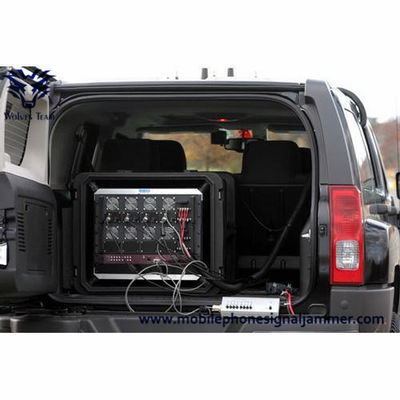

Adopting the latest jamming technologies, the features ultra-high RF transmission power of 600-1300 watt, making a bigger shielding range around the vehicle. Beyond the installation of the convoy protection device itself, the vehicle is customized with special RF protection for full protection of the driver and passengers. System management, including activation and control and operation is carried out through a wired remote control unit installed covertly inside the driver’s console unit.
Specification
Affected Frequency Ranges: (13bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80MHz | 100W |
| CH2 | 80-200MHz | 100W |
| CH3 | 200-500MHz | 100W |
| CH4 | 500-1000MHz | 50W |
| CH5 | 1000-1500MHz | 50W |
| CH6 | 1500-2000MHz | 50W |
| CH7 | 2000-2500MHz | 50W |
| CH8 | 2500-3000MHz | 50W |
| CH9 | 870-880MHz | 50W |
| CH10 | 935-960MHz | 50W |
| CH11 | 1805-1920MHz | 50W |
| CH12 | 935-960MHz | 50W |
| CH13 | 2400-2500MHz | 50W |
| Total output power: | 600~1300W | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| Shielding area | up to 800m, the jamming radius still depends on the strength signal in given area | |
| Jammer Module Number | 13 | |
| Cooling System | Systematic Smart Cooling System | |
| System Protection | VSWR, Over-voltage, Over-current | |
| With AC adapter | (AC100-240V-DC27V), | |
| Remote Control (Option) | Each band can work independently | |
| Antenna Type | all the TX frequency covered down link only | |
| Number of Antennas | 13 | |
| Vehicle Platform(Option) | Off-road four-wheel drive car | |
| Power consumption: | 1200W | |
| Weight: | About 45 kg (with omnidirectional antenna.) | |
| Size (length × wind × high) | 625×500×700 mm | |
Accessories
Main Function:
High-power portable multi-band jammer.
Upgraded jamming signal source (DDS technology) to provide utmost efficiency.
Field programmability for rapid adjustment to frequency and output power.
Fully modular compact design with extremely high efficient cooling system provides system stability even in extreme climate conditions.
Remote control can control each module working frequency, output power, etc.
Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.
Fully portable trolley-type case for easy transportation and rapid deployment.
Supplied by AC mains or DC power source.
Backup battery system and generator system are optional.
The jamming system has an active smart cooling system in a continuous working cycle.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
