| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CE |
| Packaging Details: | Box 69cm(L)×69cm(W)×39cm(D) |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pieces/year |
| Jamming Range: | 100-1000 Meters | Power Of Each Frequency Band: | Can Be Adjustable Independently |
|---|---|---|---|
| Total Output Power: | 1200W | Feature: | Frequency Bands And Output Power Selectable. |
| Block Frequency: | 20-3600 3G 4G WiFi GSM CDMA | Advantage: | Keep For Upgrade Module Installation. |
| Application Area: | Military Units, Prison, Police, Bomb Disposal | Antenna Type Options,: | Directional Or Omnidirectional Antennas Option |
| Work Time: | Working 24 Hours/365days Continuously. | Special Technology To Prevent: | Interference Between Each Frequency Band |
| High Light: | 1200W Wireless Signal Jammer,16 Bands Wireless Signal Jammer |
||

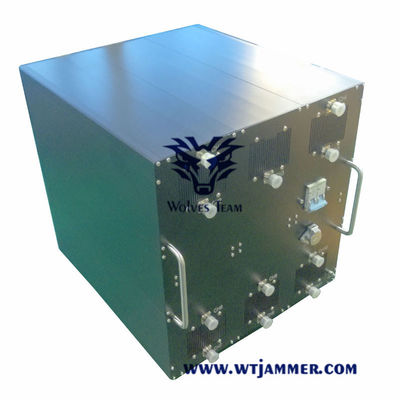

Military use for 20-6000Mhz wireless Signal Jammer with Backup Battery
Product description:
Applications :
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection
It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
High DDS solution (20-3600mhz)& GSM DCS 3G 4G WIFI
| Output Interface | Shield band of frequency |
| CH1 | 20-200Mhz 100w DDS |
| CH2 | 200-500Mhz 100w DDS |
| CH3 | 500-1000Mhz 100w DDS |
| CH4 | 1000-1500Mhz 100w DDS |
| CH5 | 1500-2000Mhz 100w DDS |
| CH6 | 2000-2500Mhz 100w DDS |
| CH7 | 2500-3000Whz 100w DDS |
| CH8 | 3000-3600Mhz 100w DDS |
| CH9 | 4G LTE 720-826Mhz 50w |
| CH10 | GSM850 :870-880Mhz 50w |
| CH11 | GSM900 :935-960Mhz 50w |
| CH12 | DCS/PCS 1805-1990 Mhz 50W |
| CH13 | 3G 2110-2170 Mhz 50w |
| CH14 | 4G Wimax2345-2400Mhz (US) or 2570- 2690Mhz(EU) 50w |
| CH15 | WIFI 2.4G 2400-2500Mhz 50W (optional ) |
| CH16 | WIFI 5.8G 5700-5800Mhz 20W (optional ) |
Accessories:
Power cable
Antennas
User manual
Advantages and Features:
· The modules plug and play design, facilitate for future power upgrading, change and maintenance. Any ruin on the modules never interfere the normal operating of other modules.
· American Mil-spec standard case, shockproof and drop-resistance, available for the vehicle running in a worse field environment.
· Up to 20 Frequency Bands. All Jamming Modules Designed by DDS technology.
· Operators are able to regulate the working frequency band and output power of each module through the software. Configuring a specific frequency band can ensure the internal communication in emergency.

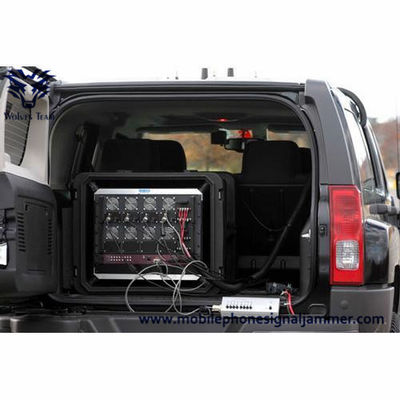

· System operation can be performed in the driver's console unit. Each module can be ON/OFF. Backup battery or generator system can be optional.
· Device body is no more than 90kg.
· Continuously and simultaneously interference to the common used RF signals.
· Equipped with high power generator to ensure excellent low noise operational capabilities.
· Integrated backup battery system for continuous silent operation and fast start.
· Integrated smart active cooling system to make sure the device working continuously.
· Antenna is installed with a covert design.
· Video camera with LCD monitor both inside and outside the vehicle provide rear viewing and monitoring
