| Place of Origin: | China |
| Brand Name: | Wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | Box 520×580×330 mm |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Type: | Waterproof Adjustable | Block Frequency: | GSM CDMA 3G 4G WIFI VHF UHF |
|---|---|---|---|
| Total Output Power: | 500~1000W | Jamming Range: | Up To 500-1000m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
| Power Supply: | 50 To 60Hz, 100 To 240V AC | Monitor Software Function: | Remote Viewing Each Machine Working State |
| Advantage: | Each Band Can Adjust RF Power Output Level Or Turn Off Without Influencing The Other Bands’ Operation | Application Area: | Military Units, Prison, Police, Bomb Disposal |
| High Light: | UHF Vehicle Signal Jammer,1000W high range mobile jammer |
||

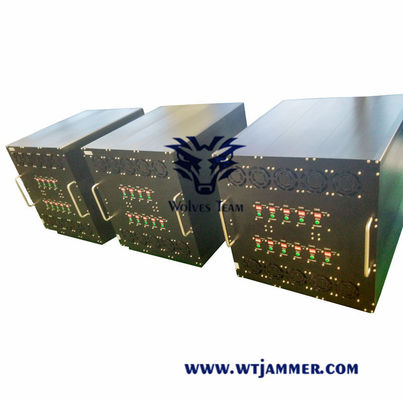

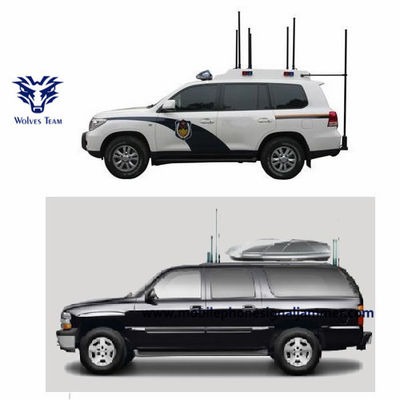

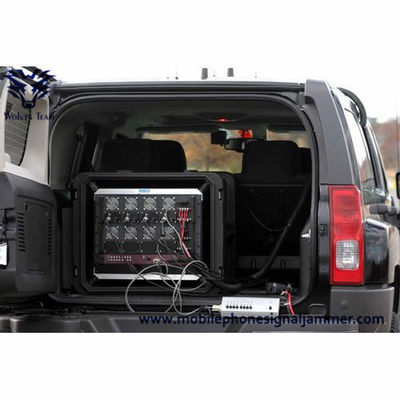

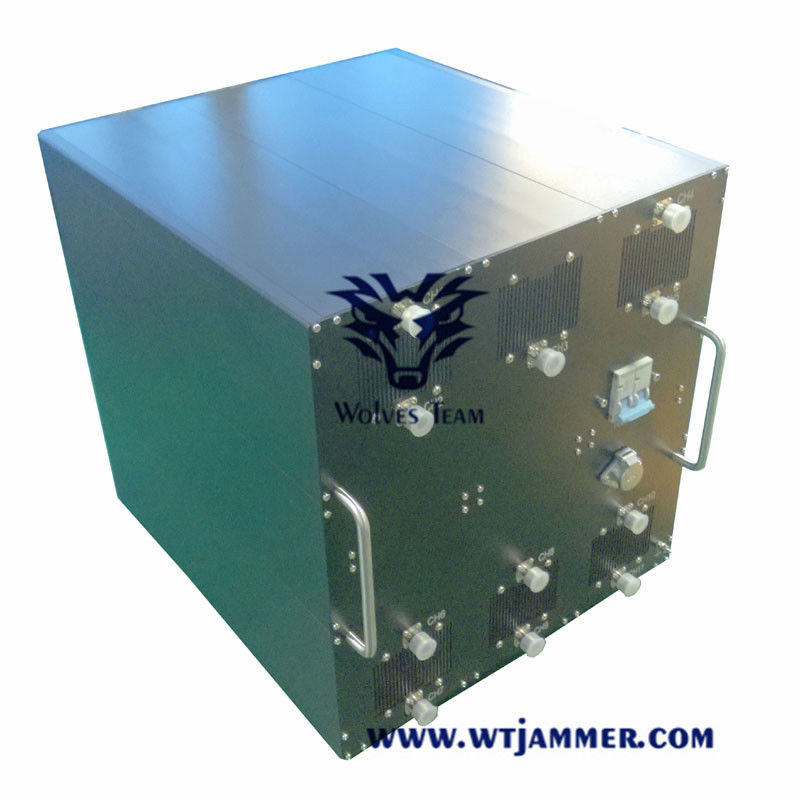

Most of us know that in important places like prisons, military meeting and museums, actions have always been taken to prevent the message from being given out. What kind of device can install in these places to reach the purpose, the Rackmount High Power Military Vehicle All Cell Phone Signal WIFI GPS UHF VHF Jammer must be the one which is most suitable.
Advantages and Features:
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Specification
| Output Interface | Output Frequency | Output power |
| CH1 | CDMA 800: 850 to 894MHz | 50-100w |
| CH2 | GSM 900: 925 to 960MHz | 50-100w |
| CH3 | GSM 1800: 1805 to 1880MHz (DCS) | 50-100w |
| CH4 | GSM 1900: 1920 to 1990MHz (PCS) | 50-100w |
| CH5 | 3G: 2110 to 2170MHz | 50-100w |
| CH6 | 4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) | 50-100w |
| CH7 | 4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) | 50-100w |
| CH8 | WiFi: 2400-2500MHz | 50-100w |
| CH9 | VHF: 136-174MHz | 50-100w |
| CH10 | UHF: 400-470MHz | 50-100w |
| Total RF Power | 500~1000W | |
| Power supply | AC220V | |
| Shielding area | 500-1000m @ according to signal density of mobile network | |
| Jammer Module Number | 10 | |
| Power consumption | 1000W | |
| Weight | 50.00 Kg | |
| Size (length x wind x high) | 520×580×330 mm | |
| Humidity | 30%-95% | |
| Running Temperature | -20 to +55 Celsius Degree | |
| Battery Working Time (Option) | 2 or 3 hours | |
Accessories
Monitor software function: (Option)
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
