800 M2 4555Hz GSM 3G Signal Booster Repeater

Product Details:

Place of Origin:	China
Brand Name:	Wolvesteam
Certification:	CE,FCC
Model Number:	ABS-15-1G1W

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated price
Packaging Details:	Size: 204×120×37mm
Delivery Time:	3-10 days
Payment Terms:	L/C, D/P, T/T, Western Union,Paypal
Supply Ability:	2000 pcs per years

Contact Now

Detailed Product Description

Coverage Area:	800 M2	Signal For:	GSM / 3G Dual Signal Repeater / Amplifier / Booster
Size:	204×120×37mm	Packing:	Neutral Packing
Power Supply:	AC110240V 4555Hz	I/O Impedance:	50Ω/N Connector
High Light:	3G Signal Booster Repeater , GSM Signal Booster Repeater

GSM / 3G Repeater Signal Booster ABS - 15 - 1G1W AC110240V 4555Hz Power Supply

Product Description

The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor magnetism environments, protract cellular battery life and reduce radiation of cellphones.

Features

High gain, easy installation and operation.
Full-duplex, single-port design, build-in power supply.
Use ALC technology, adjust extent automatically
LED Light Working & Signal Condition Indicators
Big linear power, control intermodulation & saturation stably
Dependability stand by GB6993-86 standard
Compatibility of electromagnetism according with ETS300 609-4
CE and RoHs Approved

Technique

Frequency range	890-915/1920-1980 935-960/2110-2170
Gain ( dB)	Uplink Gp≥55 Downlink Gp≥60
Export power (Po)	≥15dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10?pan>60?pan>
Power supply	AC110240V 4555Hz
Size	204×120×37mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard
Function	a) Power supply LED denote b) Export power LED denote
coverage area	800 m2
Packing	Neutral Packing

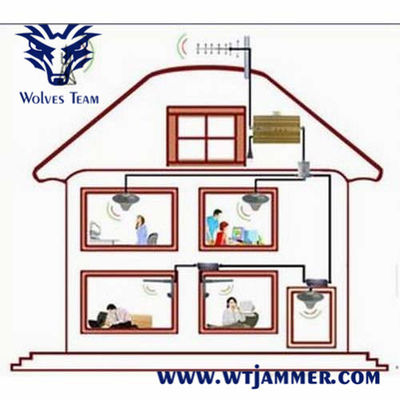

Installation Approaches

Fix up outdoor antenna reception on housetop and point to signal tower.
Connect outdoor antenna to “outdoor” port in repeater machine through cable.
Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
Plug power adaptor into AC power socket and finish installation.

Technique Supporting

If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
If cannot call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antennas have distance of 20

Application

Conference Center

Hospital

Library

Examination Hall

School

Company

Office

Military Area

Gas station

Terms and conditions:

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	100% advance,paypal,WU, etc.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.
