| Place of Origin: | China |
| Brand Name: | Wolvesteam |
| Certification: | CE |
| Model Number: | JM504709 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | Box 550×450×280mm |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Type: | Waterproof Adjustable | Block Frequency: | GSM CDMA 3G 4G WIFI |
|---|---|---|---|
| Total Output Power: | 210-350W | Jamming Range: | 50- 200m, The Jamming Radius Still Depends On The Strength Signal In Given Area |
| Power Supply: | 50 To 60Hz, 100 To 240V AC | Monitor Software Function: | Remote Viewing Each Machine Working State |
| Advantage: | Each Band Can Adjust RF Power Output Level Or Turn Off Without Influencing The Other Bands’ Operation | Application Area: | Military Units, Prison, Police, Bomb Disposal |
| High Light: | 350W Outdoor Signal Jammer,200m Outdoor Signal Jammer |
||
The Waterproof Adjustable High Power Phone Jammer for Prison is specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Prison Military and Police convoys or VIP protection. The modules are controlled separately and they also can work simultaneously.

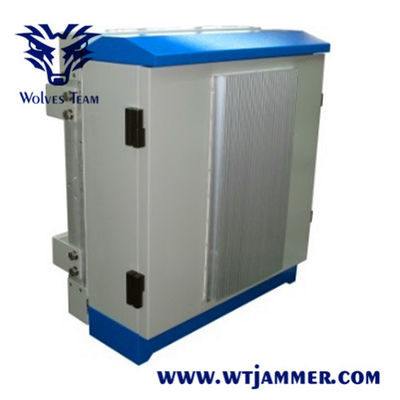

Each module with antenna can be used as a single jammer. The prison jammer is waterproof and portable, the jammer case is our patent design, it can be installed in desert and more rain of bad weather. The Frequency band is optional, and the high power jammer is with excellent heat dispersion.
Specification

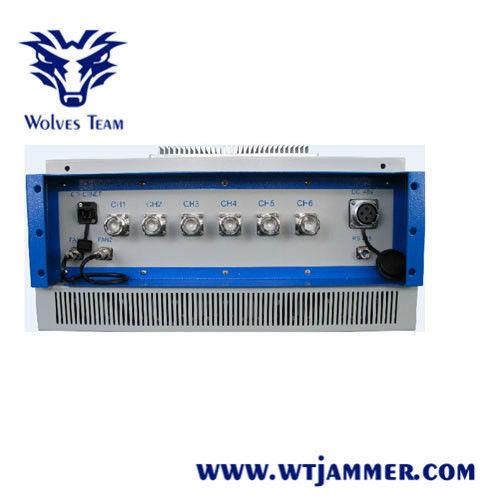

| Output Interface | Output Frequency | Output power |
| CH1 | CDMA/GSM: 850 to 960MHz | 30-50w |
| CH2 | DCS : 1805-1880MHz | 30-50w |
| CH3 | PCS : 1900-1980MHz | 30-50w |
| CH4 | 3G : 2110-2170MHz | 30-50w |
| CH5 | 4G LTE : 725-770MHz(US) or 790-826MHz(EU) | 30-50w |
| CH6 | 4G Wimax : 2300-2400MHz(US) or 2620-2690MHz(EU) | 30-50w |
| CH7 | WiFi: 2400-2500MHz | 30-50w |
| Total RF Power3 | 210-350W | |
| Power supply | AC220V | |
| Shielding area | 20-200m @ according to signal density of mobile network | |
| Jammer Module Number | 7 | |
| Power consumption | 800W | |
| Weight | 30.00 Kg | |
| Size (length x wind x high) | 550×450×280mm | |
| Humidity | 30%-95% | |
| Running Temperature | -20 to +55 Celsius Degree | |
| Battery Working Time (Option) | 2 or 3 hours | |
OTHER: Customize frequency
Accessories
Most of us know that in important places like prisons, military meeting and museums, actions have always been taken to prevent the message from being given out. What kind of device can install in these places to reach the purpose, the Rackmount High Power Cell Phone Signal Jammer must be the one which is most suitable.
Advantages and Features
Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status.
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options, directional or Omni-directional antennas option.
Main Function
High-power portable multi-band jammer.

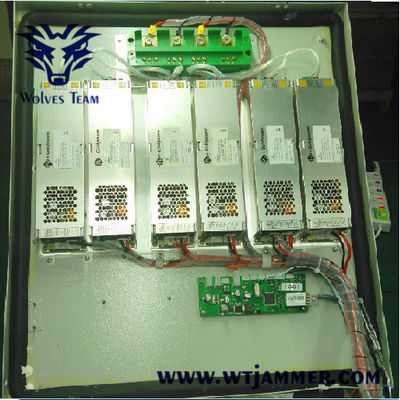

Fully modular compact design with extremely high efficient cooling system provides system stability
even in extreme climate conditions. The modular design also facilitates easy maintenance, repairs and
upgrades.
Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands.
Increased total RF output power up to 350 Watts.
Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired
remote control.
Supplied by AC mains or DC power source.
The jamming system has an active smart cooling system in a continuous working cycle.
Based on our general design, we can further customize our systems for client-specific scenarios both for
military and civil applications in order to provide the best individualized solution.
Upgraded jamming signal source (DDS technology) to provide utmost efficiency.(option)
Field programmability for rapid adjustment to frequency and output power. (option)
Remote control can control each module working frequency, output power, etc. (option)
Monitor software function: (Option)
Monitoring System Server (option)
Machine Monitor Software Function
Remote control switches of each machine.
Remote adjustment power output of each machine.
Remote viewing each machine working state.
E-mail and Alarming system.
Cabinet opened maliciously Alarming
RF cables cut off deliberately Alarming
Modules failure Alarming
Temperature problem Alarming
Remote viewing offline log of each machine
Mail receiving each machine working state
Set the system permissions function
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
