| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiated price |
| Packaging Details: | 450x380x350mm Box package |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100pieces/month |
| Total Output Power: | 200W | Jamming Range: | Up To 3000 Meters |
|---|---|---|---|
| Power Supply: | AC 110 Or 220V, DC 12V Or DC 24V (Option) | Antennas Details: | High-tech Rubber |
| Block Freaquency: | WIFI2.4G 5.2G 5.8G GPS RF900 | Dimensions Of Device:: | 450x380x350mm |
| Feature: | Each Unit Can Jam Frequency Bands Simultaneously. | Advantage: | Antenna Type Options-Omni Or Directional Antennas. |
| High Light: | Anti UAV Drone Wifi Jammer,WIFI2.4G GPS Signal Jammer,Anti UAV Drone Jammer |
||

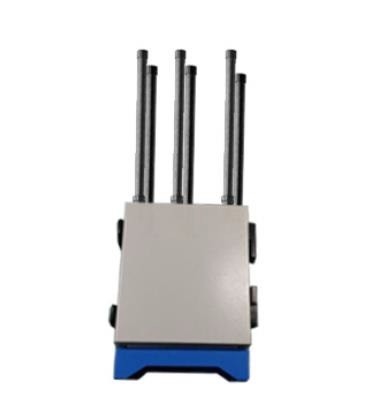

Anti UAV Drone Wifi Jammer Stationary Jamming Range 3000 Meters
Anti-UAV Drone Jammer Stationary WIFI2.4g 5.2g 5.8g GPS Signal Jammer jamming range 3000 meters
Product Description:
Advantages
Each unit can jam frequency bands simultaneously.
Continuous operation even in hot climates with no time limits.
Design for outdoor installation.
Secure design to avoid sabotage.
Antenna type options-Omni or directional antennas.
Selection of antennas to provide more flexibility regarding jamming coverage.
Additional option: wireless RC or Ethernet PC remote control.
100% Safe VSWR over protection for each modula.
Specifications:
· Isolating Signal Bandwidth:
Output Interface | Output Frequency |
CH1 | - WIFI2.4G: 2400-2500MHz 50W |
CH2 | - WIFI5.8G: 5725-5850MHz 50W |
CH3 | - GPS: 1500-1620MHz 50W |
CH4 | -RF900 : 820-926MHz 50W |
Option | 20-6000MHz |
Total Output Power: | 200W |
Jamming Range: | Up to 300m (depend on cell phone signal Length) |
Power Supply: | AC 110 or 220V, DC 12V or DC 24V (Option) |
Jammer Module Number | 4 |
Antennas Details: | high-tech rubber |
Dimensions Of Device: | 450x380x350mm |
Weight Of Product: | 25.00kg |
According to the acoustic, optical and electrical characteristics of the Drone target and the technical characteristics of the related sensors, the Drone Jammer system is divided into two product routes: far and near after a full market segmentation survey.
For close-range applications:
Firstly, the short-range multi-sensor system, which combines acoustic, optical and WIFI sensors, is equipped with portable reverse equipment. It has the characteristics of short-distance, high efficiency and flexible application.
It can be used to meet the needs of Drone protection in small areas such as company buildings, private villas, etc. It can also be used in close-range and ultra-low altitude blind-repair applications.
For medium and long distance applications:
The phased array radar and omnidirectional spectrum sensing equipment are used to form active and passive multi-sensor composite detection for low-speed and small UAV. The photoelectric equipment is equipped with special algorithm to identify and track suspicious targets. After confirming the threat, the fixed intelligent jamming platform can be automatically driven away and forced landing. It can realize the whole process automatic monitoring and control of UAV in the area. It has the characteristics of high detection efficiency, wide coverage and high automation.
Applicable place:
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units,
Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection.
