| Place of Origin: | China |
| Brand Name: | wolvesteam |
| Certification: | CE |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiated price |
| Packaging Details: | Size(length × wind × high):960×400×230 mm |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pieces/montgh |
| Detection Frequency Range: | 0.1~6GHZ | HS Code: | 8543709200 |
|---|---|---|---|
| Fixed: | Erection And Portable Erection Of Tripod | Detection Azimuth: Omnidirectional: | 360° |
| Detection Range: | 5000 ~ 8000 Meters | Direction Finding Accuracy:er: | < 3 [(RMS) |
| Fixed:: | Erection And Portable Erection Of Tripod | ||
| High Light: | 8000 Meters Anti Drone System,360° Detection Range Anti Drone System,5000 Meters Anti Drone System |
||
Anti Drone System
Ptz Control Anti Jamming System With Radar Diagram Schematic Spectrum Detection
Ptz Control Anti Drone Jammer 0.1~6GHZ Portable With Radar Diagram Schematic Diagram Spectrum Detection
Product Description:

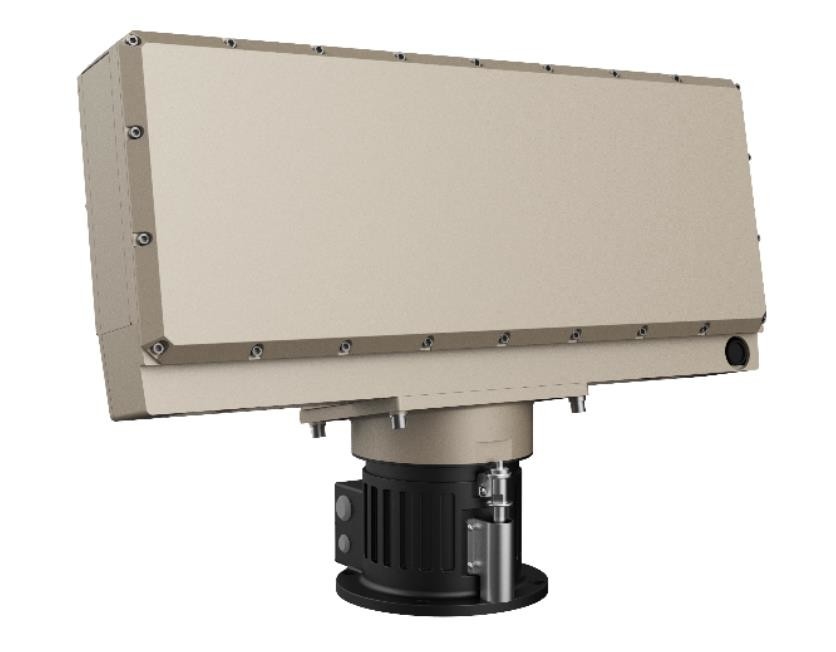

Radar Detection
Array Radar low altitude radar surveillance system is a set of three-dimensional space surveillance radar for low altitude small targets, Omni-directional, high elevation coverage.
Detection frequency range: 0.1~6GHZ
Detection azimuth: omnidirectional 360°
Direction Finding Accuracy: ≤ 5° (RMS)
Detection number: ≥20 (at the same time)
Drones Trajectory tracking
Detection radius: 8 km
Scanning speed:20GHz/s
Resolution: 25kHz
Weight: <25.0kg
It is mainly responsible for real-time reconnaissance of birds, aircraft, ground personnel, vehicles and other targets in the surrounding area, discovering and tracking targets, and outputting or reporting target information to designated users.

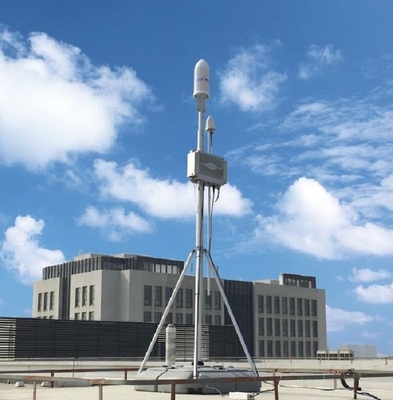

Radar supports three kinds of erection modes:
Fixed mode, vehicle mode and portable mode. It is flexible for different application scenarios.
This system for all radio communication within 0.1~6GHZ MHZ band signal is a quick scan search, through the comparison, threshold judgment and selection and analysis of the target signal parameters measurement and decoding, synchronization output signal interference to guide, to control the power interference device, dynamically adjust the transmission frequency and transmission power, makes the interference equipment can accurately on the source, concentration of power, efficient interference suppression of the communication, the communication failure.
spectrum detection equipment reconnaissance and direction finding for the upper and lower remote control signals and data transmission signals of UAV to realize the detection and early warning of UAV. Spectrum detection equipment belongs to passive detection equipment. It does not actively emit electromagnetic signals and is green and safe.
